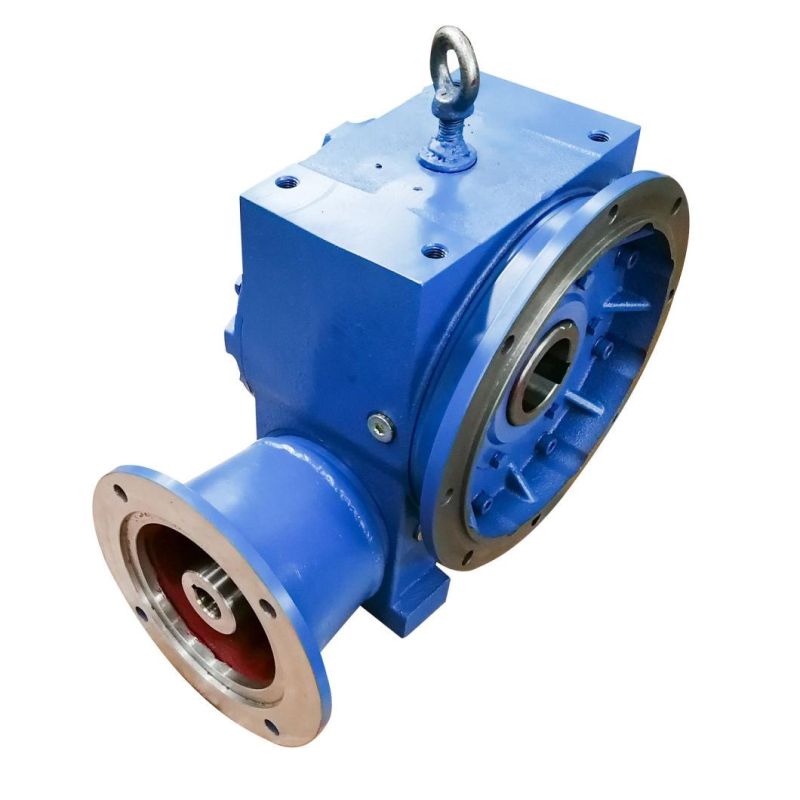

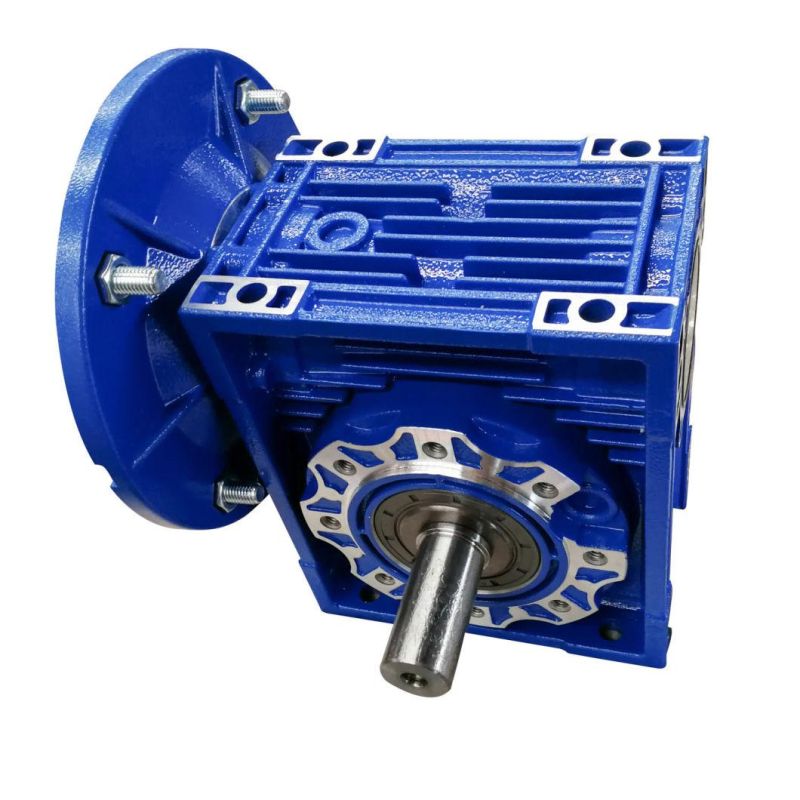

RV Combination Series Worm Gear Reducer
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Agricultural Machinery, Industry
- Hardness：Hardened
- Installation：Vertical Type
- Layout：Coaxial
- Gear Shape：Worm Gear and Shaft
- Step：Stepless
Base Info
- Model NO.：NMRV,NRV
- Type：Rack
- Material：Nylon
- Manipulate Way：Robotics
- Manufacturing Method：Rolling Gear
- Toothed Portion Shape：Bevel Wheel
- Changes Way：Stepless
- Warranty：One Year
- Input：Flange
- Transport Package：PLYWOOD CASE
- Specification：ISO9001: 2008
- Trademark：SGR
- Origin：CHINA
- HS Code：8483409000
- Production Capacity：2000PCS,MONTH
Description
Basic Info.
Model NO. NMRV/NRV Type Rack Material Nylon Manipulate Way Robotics Manufacturing Method Rolling Gear Toothed Portion Shape Bevel Wheel Changes Way Stepless Warranty One Year Input Flange Transport Package PLYWOOD CASE Specification ISO9001: 2008 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 2000PCS/MONTHProduct Description
RV Combination Series Worm Gear ReducerTechnology date:
1..Ratio range: 7.5-100
2. Input power: 0.04-15KW
3. Permit torque rang: 10-1500N.m
4. Structure mode: Foot-mounted, input shaft, with input flange; Additional single (double) output shaft
Characteristic:
1. Compact mechanical structure, light and handy volume, small-scale and high efficient
2. Good temp exchange capability & reliability
3. Easy mounting, link freely, easy verification
4. Wide transmission ratio & strong torque
5. Smoothly transmission, little noise & vibration, widely used
