F Series Gear Motor Parallel Shaft Gear Motor and Gear Reducer
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Machinery, Agricultural Machinery
- Function：Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Single-Step
Base Info
- Model NO.：FF,FFAF
- Type：Worm and Worm Wheel
- Manufacturing Method：Cast Gear
- Toothed Portion Shape：Double Helical Gear
- Delivery：30days
- Warranty：One Year
- out Put：Solid Shaft
- Mounting：Flange
- Transport Package：PLYWOOD CASE
- Specification：CE
- Trademark：SGR
- Origin：CHINA
- HS Code：8483409000
- Production Capacity：5000PCS,MONTH
Description
Basic Info.
Model NO. FF/FFAF Type Worm and Worm Wheel Manufacturing Method Cast Gear Toothed Portion Shape Double Helical Gear Delivery 30days Warranty One Year out Put Solid Shaft Mounting Flange Transport Package PLYWOOD CASE Specification CE Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 5000PCS/MONTHProduct Description

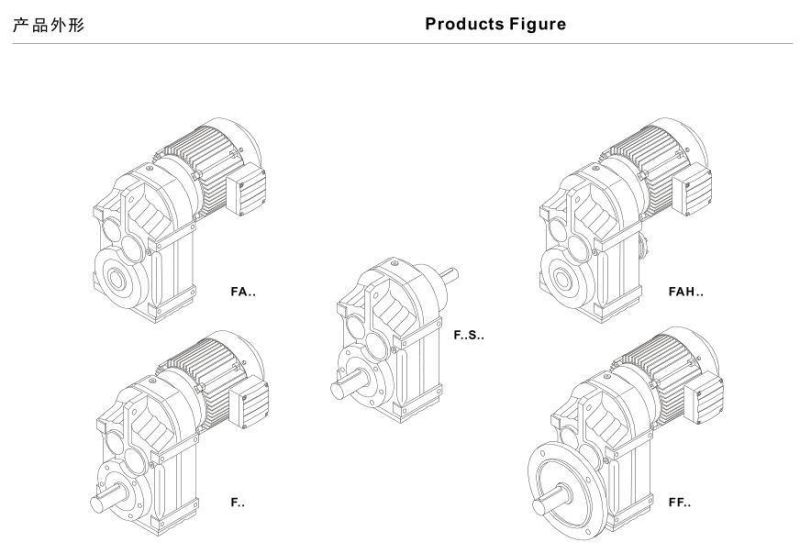

F Series Gear Motor Parallel Shaft Gear Motor And Gear ReducerTechnology date:
1. Ratio range: 7.18-14062
2. Input power: 0.18-22 KW
3. Permit torque rang: ≤ 1500 N. M
4. Output speed: 0.3~205 r/min

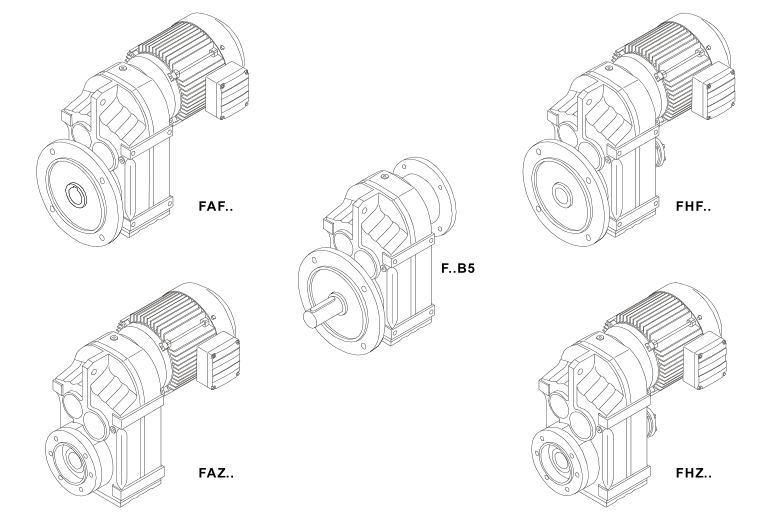

5. Structure: Foot-mounted, flange-mounted, shaft-mounted
Characteristic:
1. Adopt optimized design, module combination, right angle output, space reduction
2. High strength and longevity gears
3. Reverse operation function, combinable with various motors, wider ratio range
4. Big output torque, smoothly startup, high efficiency
