• Model NO.：R, RF, RS, RFS, RM
• Type：Circular Gear
• Input Power：0.12-160kw
• Ratio：5-264(Max:13000)
• Rated Torque：up to 18000n*M
• Installation Form：Foot or Flange Mounted
• Gear Package：Plywood Case
• Certification：Ce, SGS, Dunbs
• Material：Cast Iron
• Manufacturing Method：Forging, Grinding
• Toothed Portion Shape：Helical
• Warranty：1 Year
• Transport Package：Plywood Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. R, RF, RS, RFS, RM Type Circular Gear Input Power 0.12-160kw Ratio 5-264(Max:13000) Rated Torque up to 18000n*M Installation Form Foot or Flange Mounted Gear Package Plywood Case Certification Ce, SGS, Dunbs Material Cast Iron Manufacturing Method Forging, Grinding Toothed Portion Shape Helical Warranty 1 Year Transport Package Plywood Case Specification ISO Trademark AOKMAN DRIVE Origin China HS Code 8483409000 Production Capacity 30000PCS/Year

Product Description

More information of R series helical gearbox:
Mounting type:

R(-)	RF	RS	RFS	RM
Foot-mounted	Flange-mounted	Foot-mounted and  Shaft In-put	Flange-mounted and  shaft Input	Specially for stirrer

1.Material:

gearbox body	modular cast iron with high strength
gear and axis	alloy steel products with hight quality

2.Processing method:

Materials	forging, grinding
End Products	heat treatment

3.Net weight for different sizes and types:

Size	R17	R27	R37	R47	R57	R67	R77	R87	R97
Weight(kg)	4	5.5	8.5	10	18	25	36	63	101
Size	R107	R137	R147	R167
Weight(kg)	153	220	400	700



Gear unit type	RX37	RX57	RX67	RX77	RX87	RX97	RX107	RX127	RX157
Weight(kg)	5	8	14	23	39	70	100	150	250

Attention:The weights above are average value.

4.Features of R series helical gear reducer:
1) Structure: Flange-mounted, foot-mounted, small off-center output and compact.
2) Can connect with various motors, good available capability and reliability, carburized and grinded teeth, low noise, high efficiency.
3) Integral casting housing with good rigidity to enhance the shaft strength and serves life of bearing.
4) Big or small flange type installation and output through solid shaft.
5) Input types: Couple-type motor, input through shaft and input through coupling flange.

5.Application:
It is applied to many industrial area, such as Metallurgical, mines, lifting, transportation, petrochemical, construction, textile, pharmaceutical, food, environmental, light electric, plastic machine, paper, parking equipment etc. Especially for Light Industry.

6.Advantages of R series helical gear reducer:
1. High technical contents.
2. Save space, durable, high bear ability.
3. Low consumption, superior performance, the machine efficiency is up to more than 95%.
4 .Small vibration, low noise, high energy conservation.

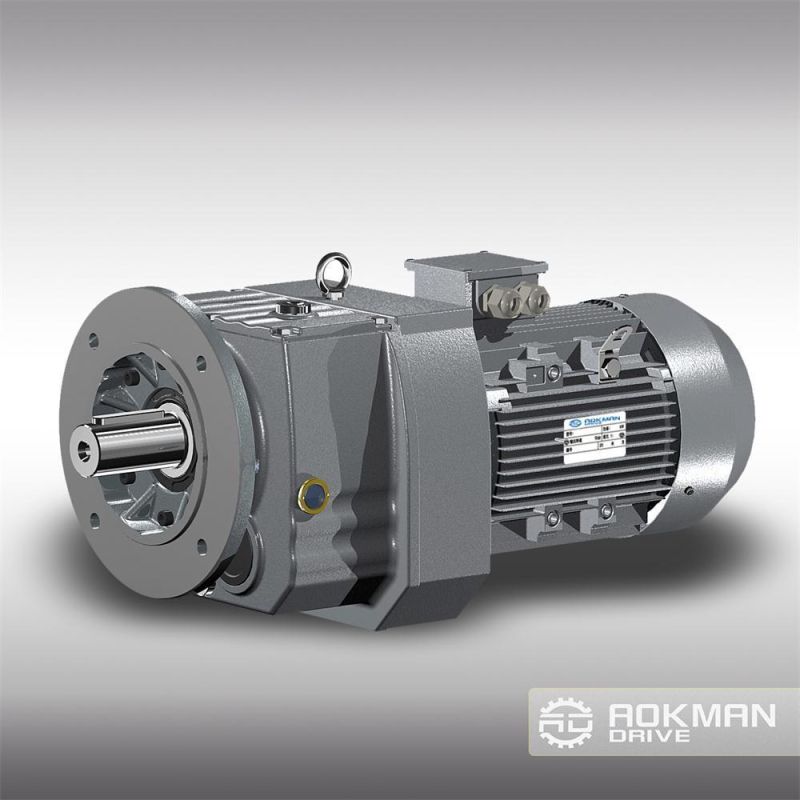

RF PICTURE:

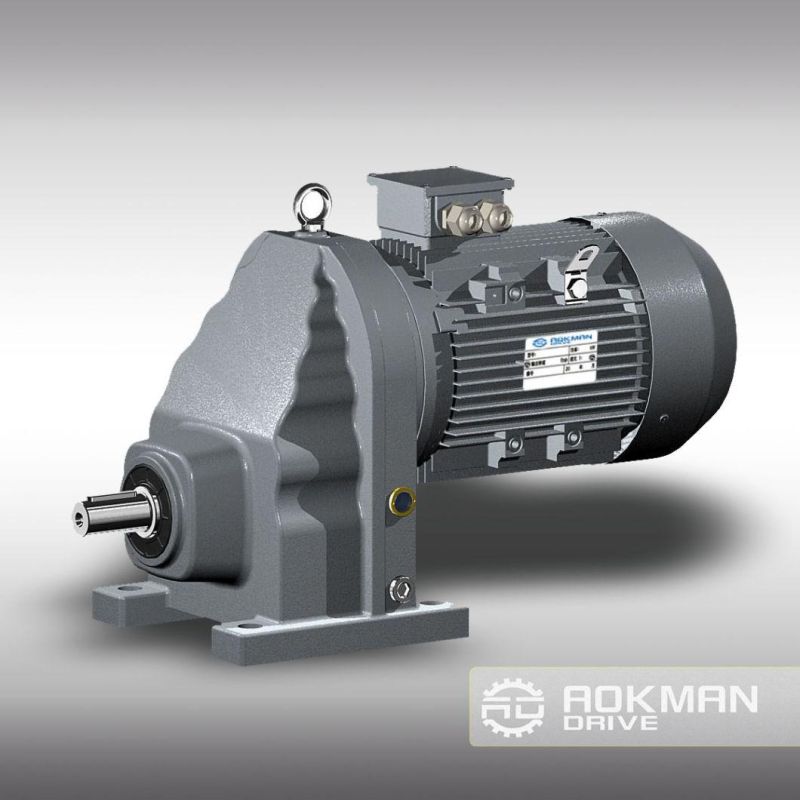

RX PICTURE:

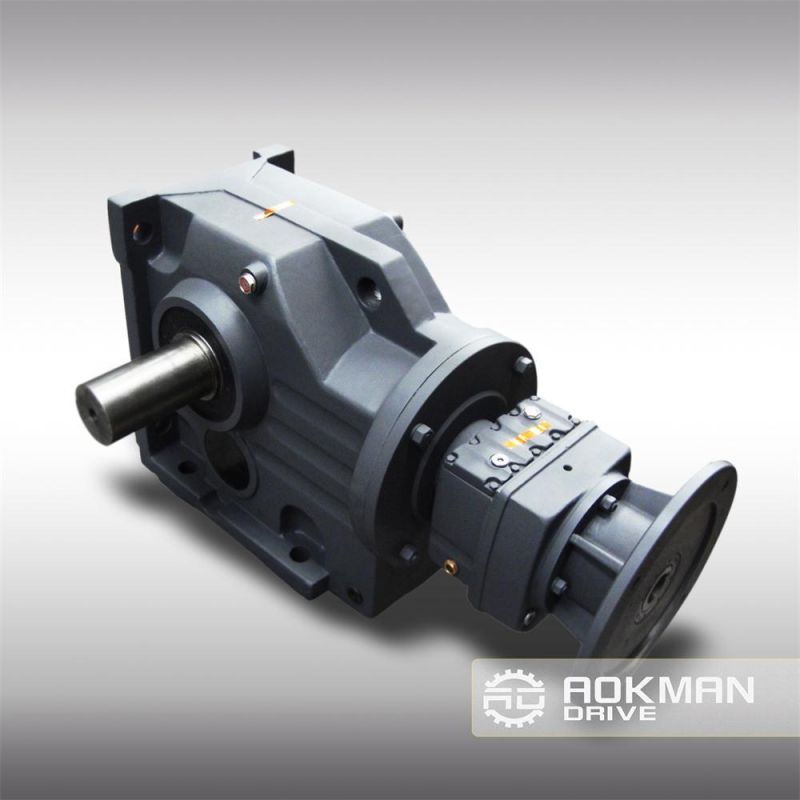

R+K PICTURE:

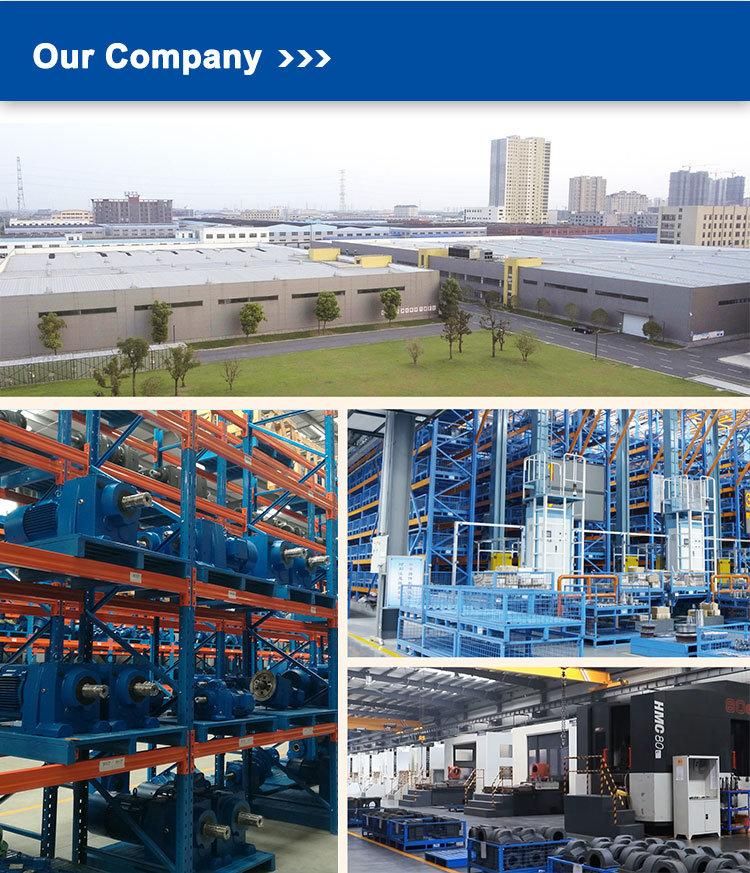

7.Our company:
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


8.Customer visiting:


9.FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

If you are interested in our product, welcome you contact me.
Our team will support any need you might have.
