Input Shaft Flange Mounted Helical Gear Motor

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Machinery, Agricultural Machinery
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Layout：Coaxial
  • Gear Shape：Cylindrical Gear
  • Step：Single-Step

Base Info

  • Model NO.：RF97
  • Type：Helical
  • 17-167：17-167
  • Manufacturing Method：Rolling Gear
  • Toothed Portion Shape：Spur Gear
  • Warranty：One Year
  • Delivery：60days
  • Mounted：Flange or Foot
  • Transport Package：Plywood Case
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：5000PCS,Month

Description

Basic Info.

Model NO. RF97 Type Helical 17-167 17-167 Manufacturing Method Rolling Gear Toothed Portion Shape Spur Gear Warranty One Year Delivery 60days Mounted Flange or Foot Transport Package Plywood Case Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 5000PCS/Month

Product Description

Input Shaft Flange Mounted Helical Gear Motor


Technical data of geared motor:
1...Ratio range: 5-264
2. Input power: 0.18-160KW
3. Output speed: 0.09~832 r/min
4. Permit torque rang: ≤18000 N. M
5. Structure mode: Normal solid shaft, foot-mount, flange-mount, double shaft

Characteristic:
1. Good available capability & reliability
2. Good temperature exchange capability & high strengthens
3. Carburized and grinded teeth
4. Good fabricate capability, can be fabricated with other reducer to realize low-speed transmission


 ratio range5:1 to 264:1
 input power 0.18kw to 160kw
 voltage 220V/380V/400V/440V
 frequency 50Hz / 60Hz
 output speed 0.09rpm to 382rpm

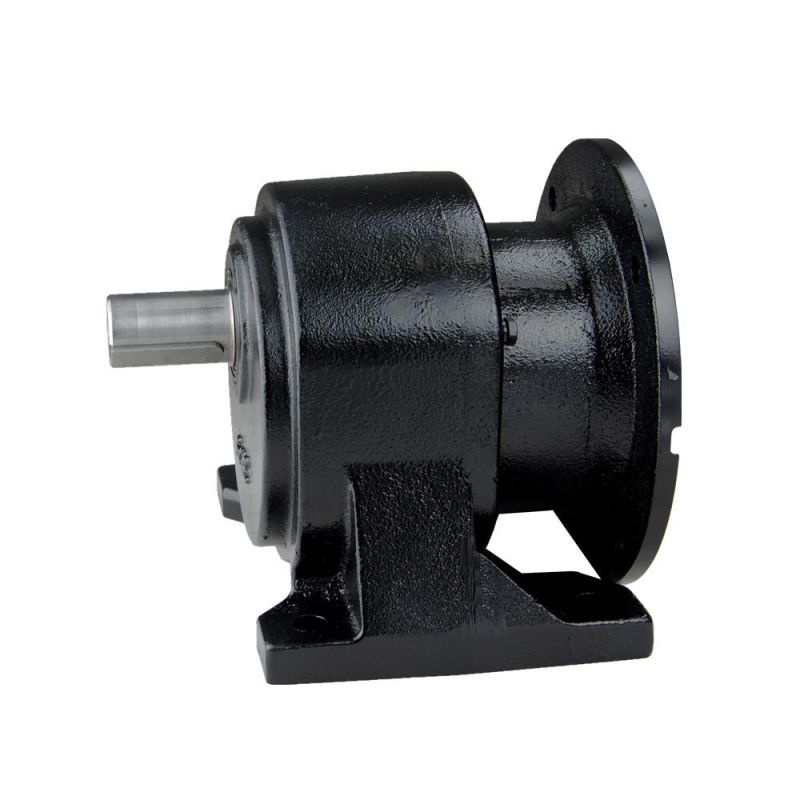

Input Shaft Flange Mounted Helical Gear Motor

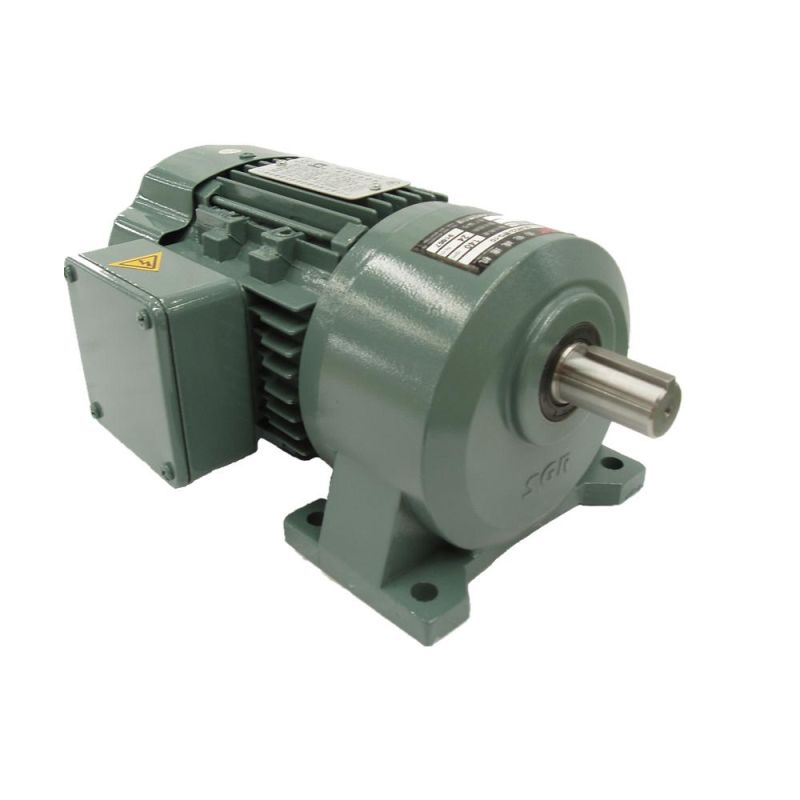

Input Shaft Flange Mounted Helical Gear Motor

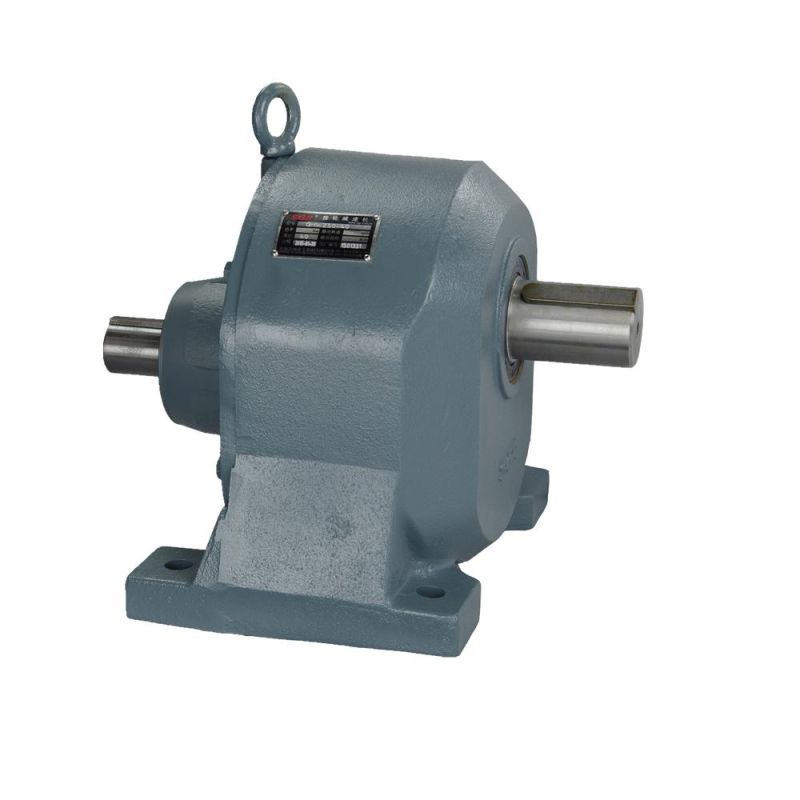

Input Shaft Flange Mounted Helical Gear Motor
