R Series Helical Bevel Drive Gearmotor Transmission Gearbox

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
  • Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Four-Step

Base Info

  • Type：Planetary Gear Box
  • Transport Package：Wooden Case
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Product Name

 Helical gearbox

 Color

 Blue

 Size

 R17 R27 R37 R47 R57 R67 R77 R87 R97 R107 R137 R147 R167

 Power Range

 0.12Kw-160Kw

 Series

 Helical gearbox

 MOQ

1 Piece

 Assemble Type

 R..  Foot-mounted

 RF..Flange type

 R..F  Foot-mounted & Flange

 RM..Flange, with longer bearing box

 RX..Single Stage Foot-mounted

 RXF..Single stage Flange type



Specifications

Output torque: up to 18000Nm
Output speed: 0.16~1028r/min
Power of motor: 0.18~160KW
Mounting mode: foot mounting flange mounting
 R Series Helical Bevel Drive Gearmotor Transmission Gearbox

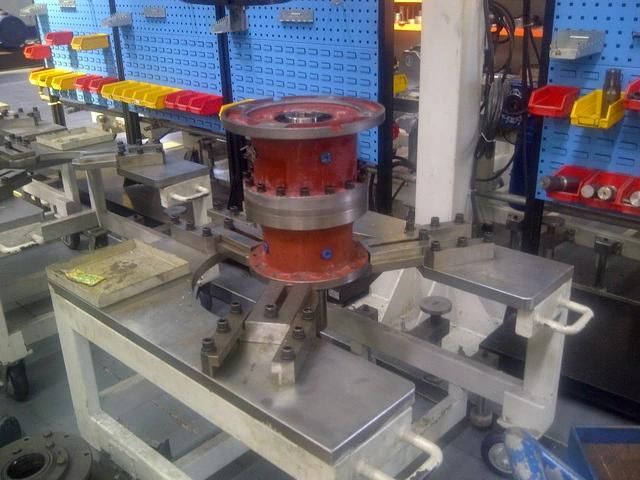

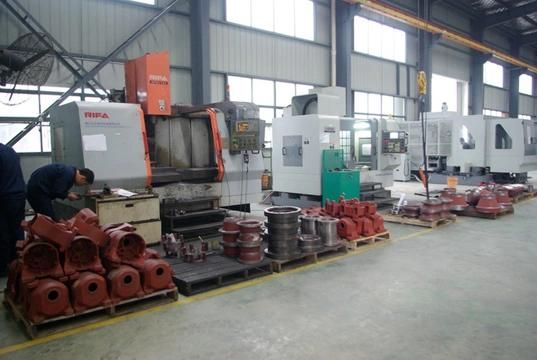

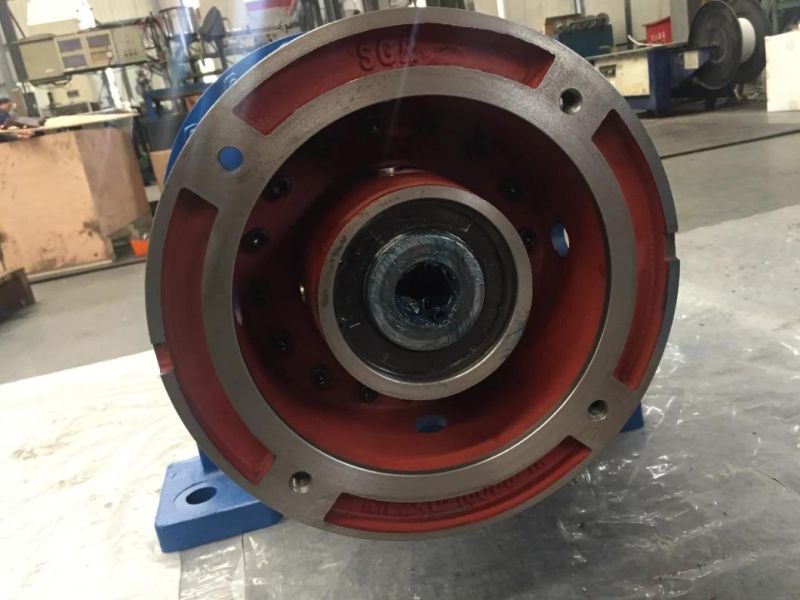

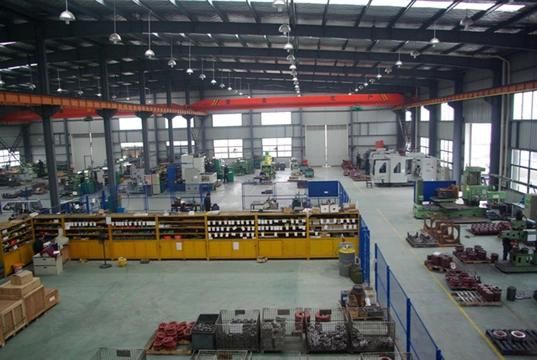

Production pictures:

R Series Helical Bevel Drive Gearmotor Transmission Gearbox
R Series Helical Bevel Drive Gearmotor Transmission Gearbox
R Series Helical Bevel Drive Gearmotor Transmission Gearbox
R Series Helical Bevel Drive Gearmotor Transmission Gearbox
R Series Helical Bevel Drive Gearmotor Transmission Gearbox

R Series Helical Bevel Drive Gearmotor Transmission Gearbox
R Series Helical Bevel Drive Gearmotor Transmission Gearbox


FAQ:
1.Are you a factory or trader ?
We are a professional factory which has 20 years history specialized in gear transmission .
2.MOQ:
Our MOQ is 1pcs. However there is one handling cost $150 for the single order which less than $3000.00
3. Warranty
Our warranty is 12months
4. Payment term
100% T/T in advance and LC at sight .
5. Do you accept customization ?
YES.SGR have strong R&D team, we can provide customizable service according to requirements.
6. Packing
Generally we use standard export plywood case to arrange the shipment .
7. Delivery time
In normal ,time of delivery is 30days after receiving the prepayment .
8. What kinds of certification do you use ?
DNV-ISO9001:2008, SGS,CE etc, And new products patent.
9. What kinds of inspection you do before shipment ?
We do temperature test, noise, and oil leak inspection and commissioning before shipment.
10.How do you solve if the production have problem ?
Mostly, we don't need customer send the goods back to us. Because the cost is very high, if there meets a problem,we firstly ask for the pictures for damaged parts. And base on the pictures, we can have a basic idea for the defect reason. Our guarantee is 12 months, if during the guarantee, we can supply repair .
