• Model NO.：MEA-58
• Transport Package：2
• Trademark：yuanben
• Origin：China
• HS Code：9014800090
• Production Capacity：20000PCS,Year

Aluminum, optional stainless steelLifetimeDependent on shaft version and shaft loading-refer to tableMax. shaft loadingAxial 40 N, radial 110 NInertia of rotor≤ 30 gcm2Friction torque≤ 3 N Cm (without shaft sealing)RPM ( continuous operation)Single-turn: max.10,000 RPMShock≤ 100 g (half sine,6 ms)Permanent shock≤ 10 g (half sine,16 ms)Vibration≤ 10 g (10 Hz...2000 Hz)
≤ 10 g (10 Hz...1000 Hz) (with Connection Cap)FlangeSynchron (S)Clamp(C)Hollow shaft(B)Shaft diameter6 mm10 mm10 mm15mmShaft length10mm20mm20mm-Hollow shaft depth min./ max.---15mm /30mm
Minimum (mechanical) lifetimeFlangeLifetime in 10 8 revolutions with Fa/Fr40 N/60 N40 N/ 80 N40 N/110 NC10 ( Clamp flange 10×20)24710440S10 ( Synchron flange 10×20)26211042S06 ( Synchron flange 6×10) without shaft sealing822347133S06 (Synchro flange 6×10) without shaft sealing: max. 20 N axial, 80 N radial

Environmental Conditions

Operating temperature	-40..+ 85ºC
Storage temperature	-40..+ 85ºC
Humidity	98% ( without liquid state)
Protection class	Casing side: IP65 Shaft side: IP64 (optional with shaft sealing: IP66)
Heavy Duty Protection class	Casing side: IP67 Shaft side: IP66

*Cable exit:-30…+70ºC (static),-5+70ºC (flexing)

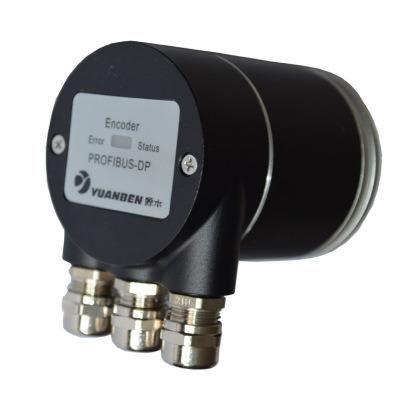

Picture:





FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on industrial sensors for 20 years.
2.    Q: What international certificates do you have?
        A: All sensors confirm to RoHs standard and  ISO9001, CQC, CCC, CE and ETL certified.
3.    Q: What is your production capacity?
        A: We produce aroud 1500000 pieces sensors yearly.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can custom design sensors according to your design drawing. We provide OEM and ODM service.
