• Model NO.：NBR
• Type：Gear Reducer
• Transport Package：Wooden Case
• Trademark：NEWIN
• Origin：China
• HS Code：8419500090
• Production Capacity：1000000mt Per Year

Basic Info.

Model NO. NBR Type Gear Reducer Transport Package Wooden Case Trademark NEWIN Origin China HS Code 8419500090 Production Capacity 1000000mt Per Year

Product Description

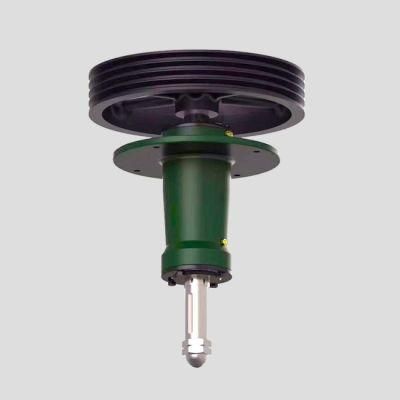

High Quality Cooling Tower Belt Reducer

Newin NBR series belt reducer is used for round cooling tower, the belt has good elasticity. The Belt is the middle part, it can be in a certain range according to the need to choose the length, to adapt well the center distance requirements of the larger working conditions. Belt reducer has the characteristics of simple structure, stable operation, small vibration, low noise, long service life, etc.



FEATURES

-High operating reliability, no need to adjust the belt tension, completely solve the maintenance work caused by belt slippage.

-High transmission efficiency, completely solve the power loss caused by belt slippage, and the air output of the fan is more guaranteed.

-Convenient installation: the gear box is an integrated structure, which makes installation easier and more convenient, reduces installation requirements and reduces installation labor costs.

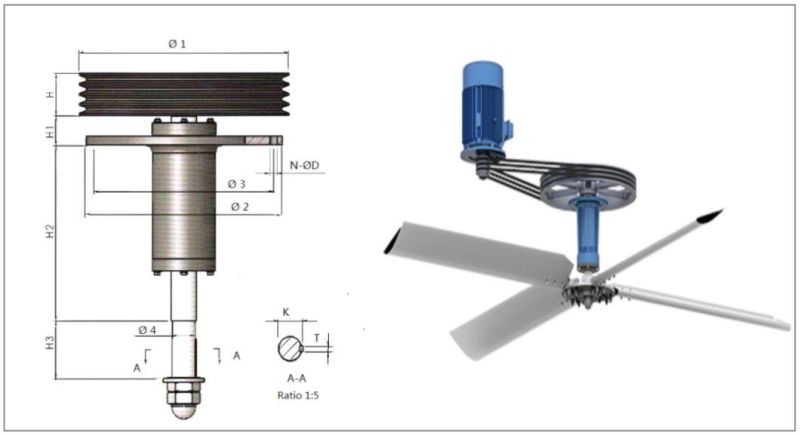

NBR SERIES BELT REDUCER SPECIFICATION



Model	Nos.of Groove	H	H1	H2	H3	Ø1	Ø2	Ø3	Ø4	N-ØD	K	T
NBR-5	2	45	50	175	76	355	300	263	34	4-Ø13	37	8
NBR-6	3	65	60	225	105	456	348	300	38	4-Ø14	41	8
NBR-8	4	85	62	265	120	456	428	390	50	6-Ø16	53	12
NBR-10	4	85	62	310	135	608	500	450	50	4-Ø16	53	12
NBR-12	5	105	62	310	143	660	500	450	60	4-Ø16	63	12
NBR-14	6	125	62	320	153	660	500	450	75	6-Ø16	79.5	20

INSTALLATION AND APPLICATION
NBR belt reducer is simpler installation, reliable transmission, more saving overall cost, better efficient cooling effect than traditional transmission method, it is easy installation and maintenance.
