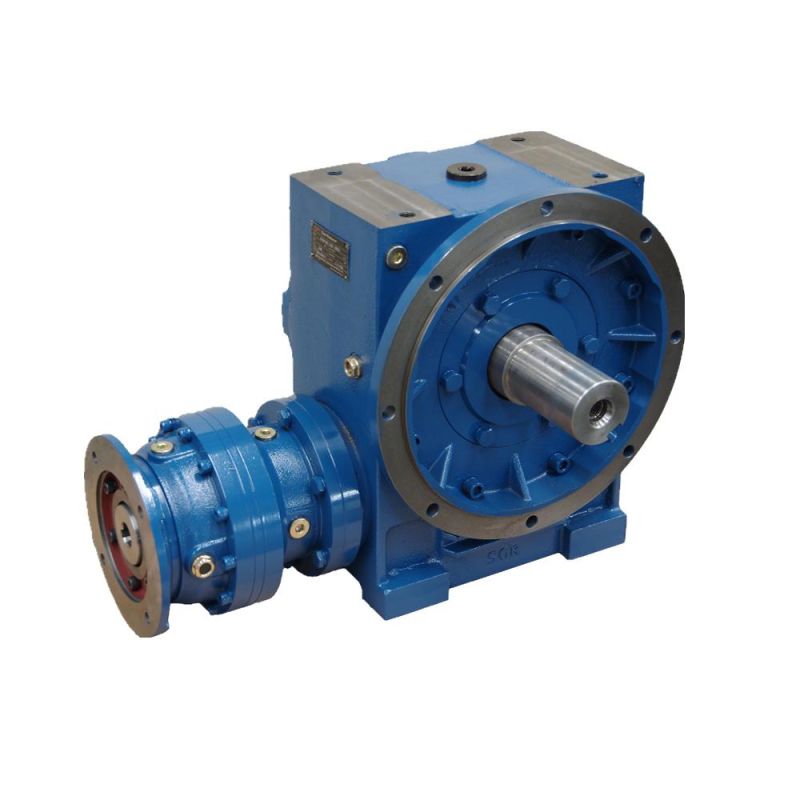

Cone Worm Gear Reducer with 2 Stages

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Industry
  • Function：Speed Reduction
  • Layout：Cycloidal
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Double-Step

Base Info

  • Model NO.：CDFW160-500-M1
  • Type：Worm Gear Box
  • Transport Package：Plywood Case
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：500PCS,Month

Description

Basic Info.

Model NO. CDFW160-500-M1 Type Worm Gear Box Transport Package Plywood Case Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 500PCS/Month

Product Description

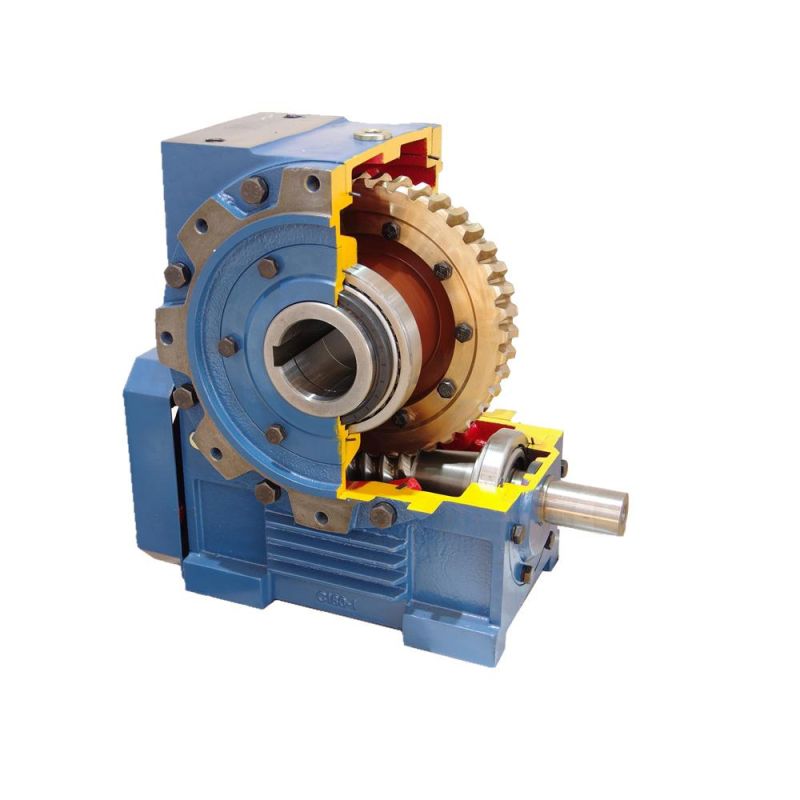

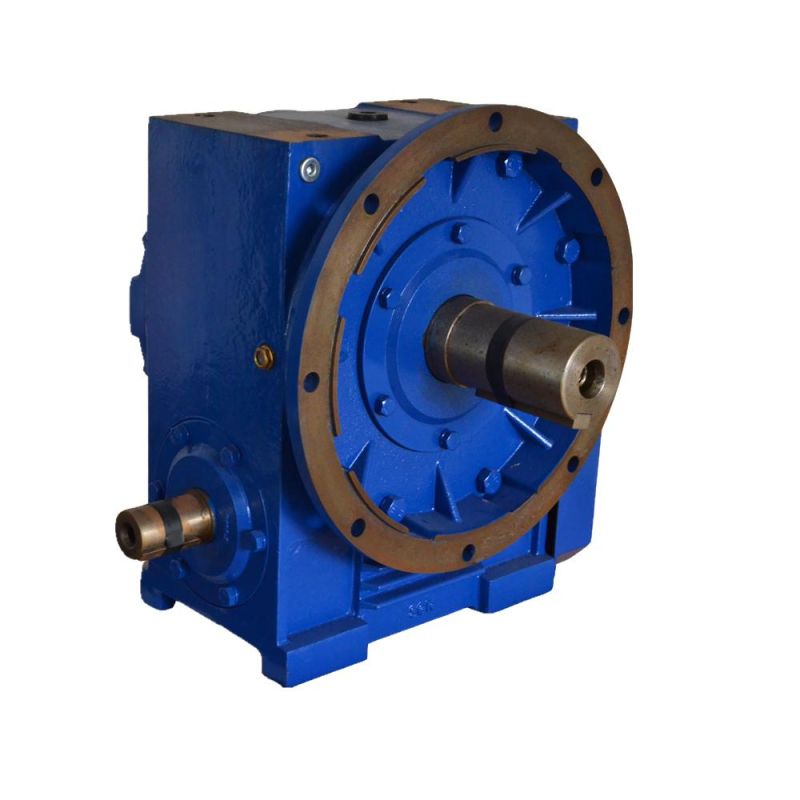

Cone Worm Gear Reducer with 2 Stages

Technical data:
1. Ratio range: 10-63
2. Input power: 1.5-450KW
3. Permit torque rang: ≤40000N. M
4. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Characteristic

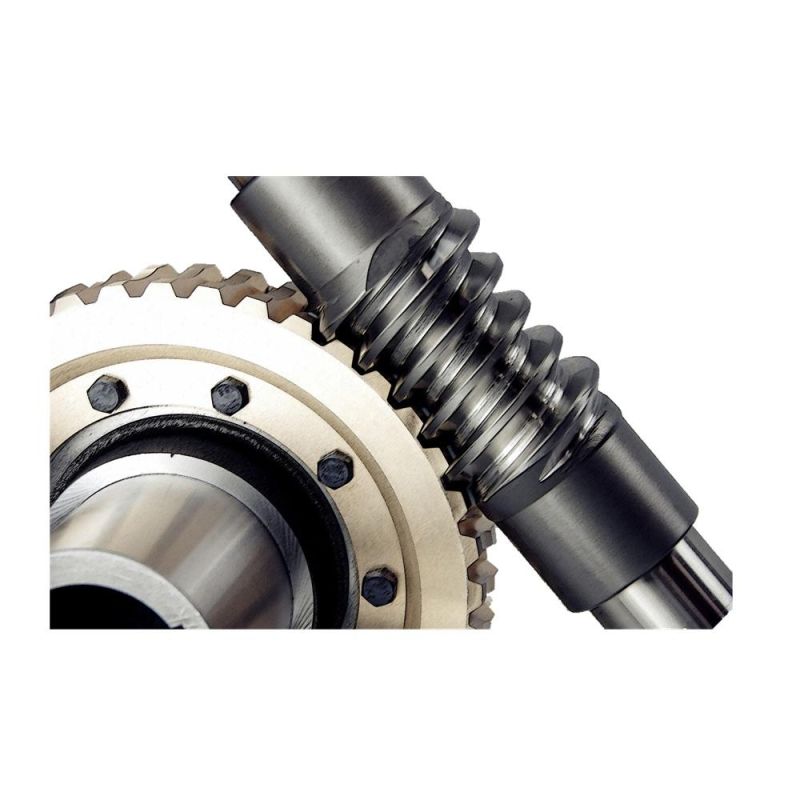

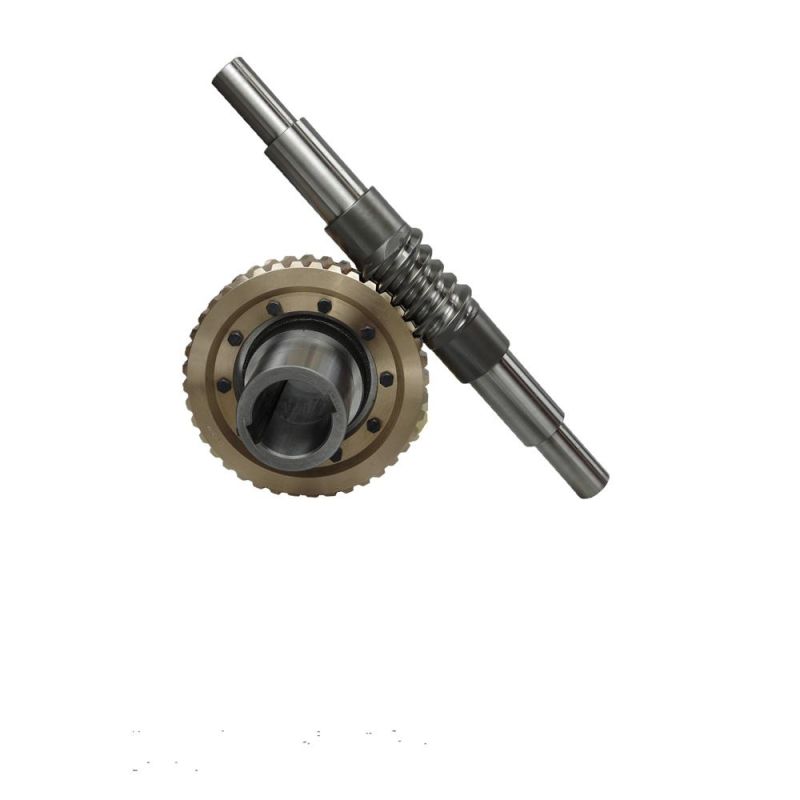

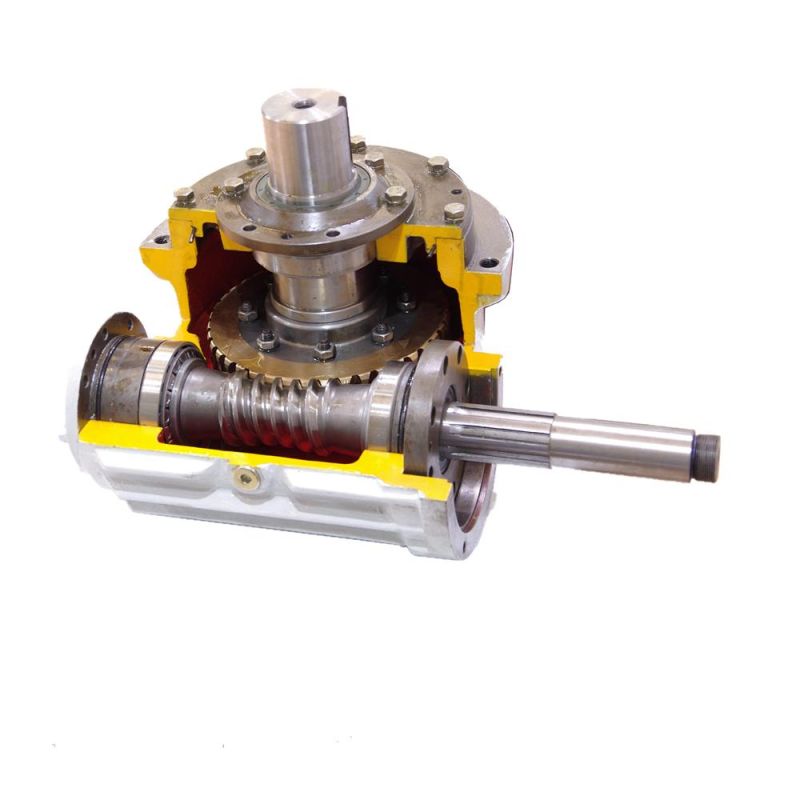

1. Double-enveloping worm gearing, 3-5 teeth contact;
2. Small volume, big capacity;
3.3-5 times than universal worm gear;
4. High efficiency, 66%-91%
