Worm Gear Series Double Enveloping Worm Gear Worm Gearbox 225mm Center Distance
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Machinery, Marine, Agricultural Machinery
- Function：Distribution Power, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Angle
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Single-Step
Base Info

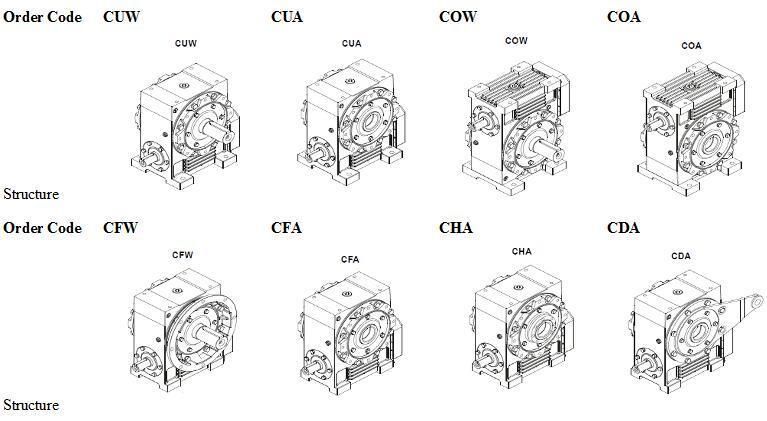

- Model NO.：CUA,CFA
- Type：Worm and Wormwheel
- Manufacturing Method：Rolling Gear
- Toothed Portion Shape：Worm Gear
- Warranty：One Year
- Delivery Time：60days
- Payment Terms：T,T
- Applications：Industrial Machinery
- Transport Package：Steel Cage
- Specification：ISO9001
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：500PCS,Mont
Description
RatioPermitted Torque Weight (CUW) input Solid(h6) (mm) (mm) (kw) (Nm) (KGS) 100 28 190 48 1.41~11.5 10 .25~ 62 683-1094 42 125 32 225 55 2.42~19.7 10 .25 ~ 62 1170~2221 65 140 38 255 65 3.94~25.9 10 .25 ~ 62 1555 ~ 3473 85 160 42 290 70 4.39~35.7 10 .25 ~ 62 2143 ~4212 120 180 48 320 80 5.83~47.5 10 .25 ~ 62 2812 ~ 5387 170 200 55 350 90 7.52 ~61.2 10 .25 ~ 62 3624 ~6859 220 225 60 390 100 9.9~81.4 10 .25 ~ 62 4872 ~ 9224 290 250 65 430 110 12.9 ~105 10 .25~ 62 6284~11892 380 280 70 480 120 16.9 ~ 138 10 .25 ~ 62 8347 ~ 15820 520 315 75 530 140 22.5 ~183 10 .25 ~ 62 11068~ 19450 700 355 80 595 150 30~245 10 .25 ~ 62 14818 ~28014 1030 400 90 660 170 32.1 ~261 10 .25 ~ 62 15786~29918 1400 450 100 740 190 42.6 ~347 10 .25 ~ 62 20998~39881 1980 500 110 815 210 54.9 ~ 448 10 .25 ~ 62 27097~51180 2700

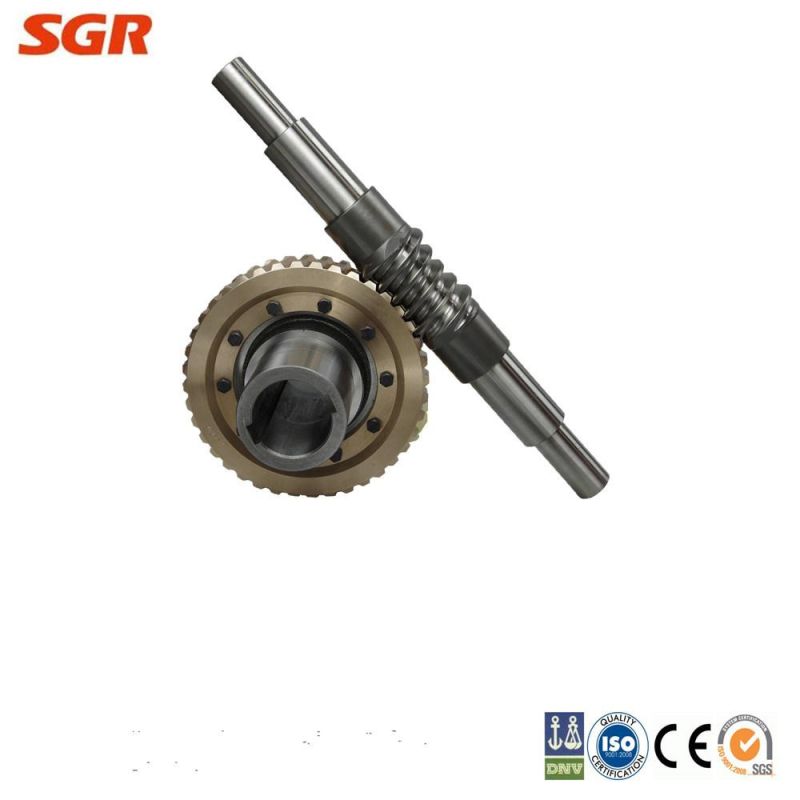

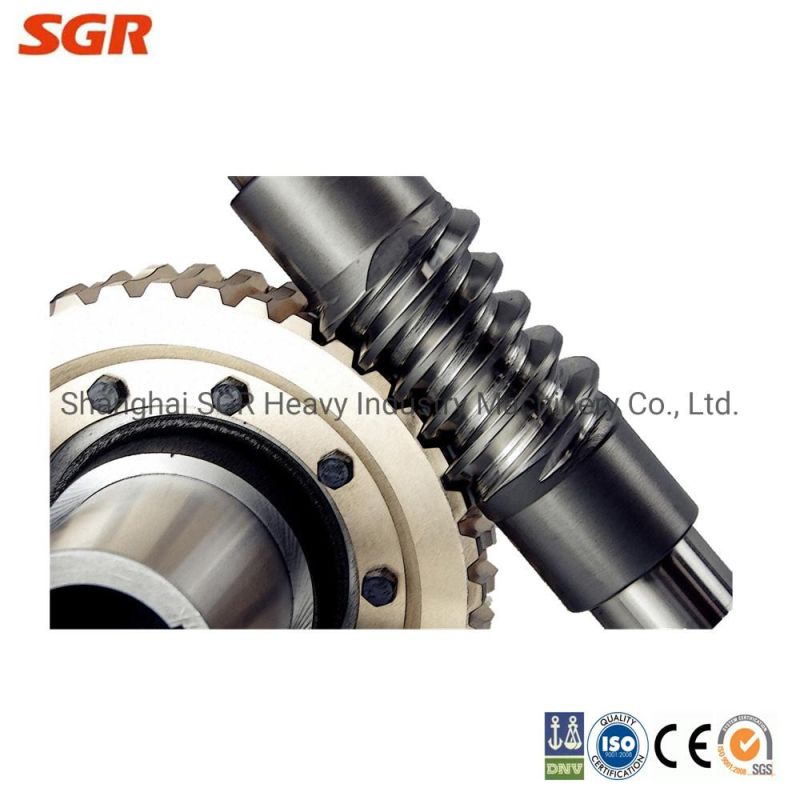

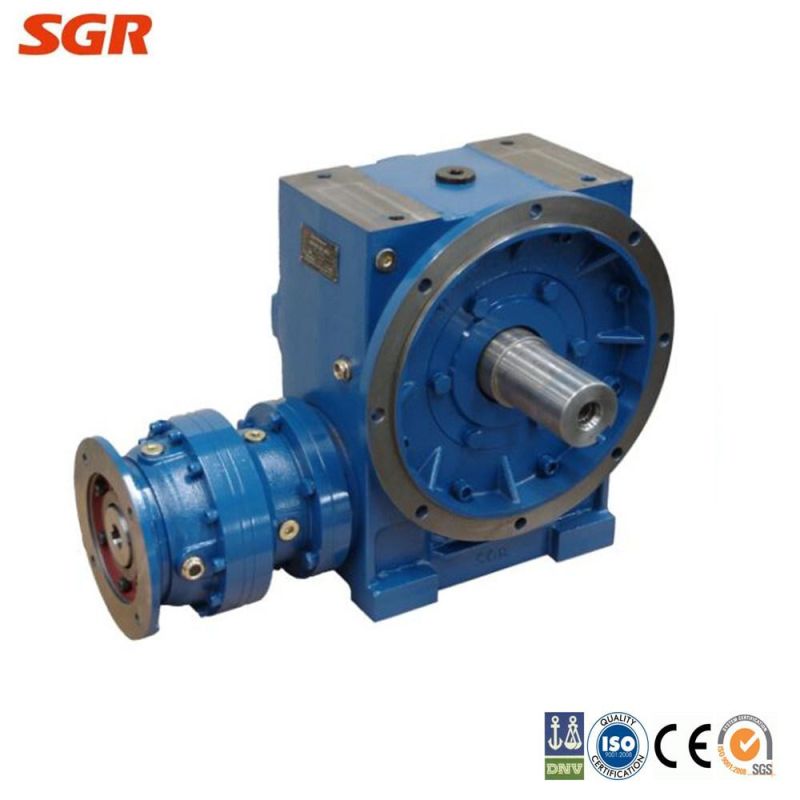

Double-enveloping worm gearbox figure :
(Click on picture for more information)
