• Model NO.：MN,N
• Type：Circular Gear
• Diameter：up to 885mm
• Ratio：57.69,1
• Input：15kw,1450rpm
• Output Speed , Output Torque：25.1rpm, 520
• Service Factor：2.6
• Material：Cast Iron
• Manipulate Way：Robotics
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Changes Way：Mixed
• Transport Package：Plywooe Case or Steel Cage
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Model NO. MN/N Type Circular Gear Diameter up to 885mm Ratio 57.69/1 Input 15kw/1450rpm Output Speed , Output Torque 25.1rpm/ 520 Service Factor 2.6 Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Changes Way Mixed Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

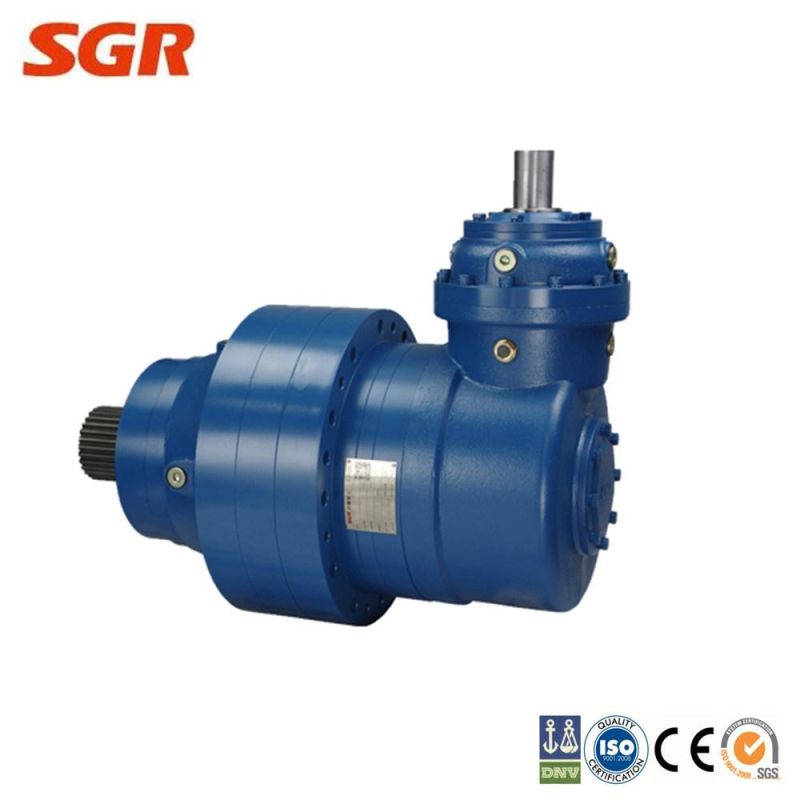

Right Angle Planetary Transmission Gear Box  With Hollow Shaft With Shrink Disc


Key feature:

• Planetary gearbox is produced by modular design, and can be combined according to client's request
• Involuted planetary gear design
•  Nodular cast iron Housing to increase rigidity and antiknock
• Heavy duty bearing on low‐speed shaft, and can bear big radial load due to proportionate distribution of   torque
• All gears are case hardened to get high surface hardness, which guarantee transmission efficiency and whole gearbox's life
• Planetary gearbox has 16 models for different torque range, and each model have 1‐5 reduction stages to achieve different ratios
• Ratio range: 3.15‐9000
• Input power: 0.25‐55KW
• Permit torque rang: ≤ 800000N. M
• Output speed: 0.425‐445 r/min
• Structure mode: Possibility of flange, foot, or shaft mounting solutions
• Wide and comprehensive range of N series for industrial applications
• Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
• Rigid and precise nodular cast iron casing
• Low noise running, high manufacturing quality standard
• High and reliable performance, load capacity and low speed shaft bearing

Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions





Ratio	3.15:1 to 9000:1
Reduction Stages	up to 6 reduction stages in one gearbox
Nominal Output Torque	up to 800,000N.m
