Ta Round Shaft Mounted Speed Reducer with Torque Arm

Zhengzhou Aokman Machinery Co., Ltd.
  • Application：Machinery, Industry
  • Hardness：Hardened
  • Installation：Horizontal Type
  • Layout：Parallel
  • Gear Shape：Cylindrical Gear
  • Step：Double-Step

Base Info

  • Model NO.：speed reducer
  • Type：Gear Reducer
  • Rated Power：1.1kw-193kw
  • Speed Ratio：5-31
  • Rated Torque：180-17000n.M
  • Mounting Type：Tie Rod Hanging Shaft Mounted
  • Voltage：380-440V
  • Colour：Gray, Blue or as Your Request
  • Material：Cast Iron
  • Manipulate Way：Forced Manipulation
  • Toothed Portion Shape：Curved Gear
  • Changes Way：Stepped
  • Transport Package：Wooden Case
  • Specification：ISO, CE, SGS
  • Trademark：Akoman
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：50000PCS,Year

Description

Basic Info.

Model NO. speed reducer Type Gear Reducer Rated Power 1.1kw-193kw Speed Ratio 5-31 Rated Torque 180-17000n.M Mounting Type Tie Rod Hanging Shaft Mounted Voltage 380-440V Colour Gray, Blue or as Your Request Material Cast Iron Manipulate Way Forced Manipulation Toothed Portion Shape Curved Gear Changes Way Stepped Transport Package Wooden Case Specification ISO, CE, SGS Trademark Akoman Origin China HS Code 8483409000 Production Capacity 50000PCS/Year

Product Description

Ta Round Shaft Mounted Speed Reducer With Torque ArmATA series shaft mounted gearbox(speed reducer) with helical hardened gears has the characteristics of high carrying capacity, smooth transmission, light weight, low energy consumption and so on. Input shaft of ATA speed reducer is connected with gear motor by belt pulley, hollow output shaft is linked with a key. It can be replaced by electric drum as power for belt conveyors and lifting equipments. ATA series shaft mounted gearbox could be attached with back-stop to avoid the working machine back skating, and conveniently mounted by tie rod. ATA series shaft mounted speed reducer is widely applied in the mining equipments, concrete mixing batching plant, stone crushers, sand making production line and other belt conveyors, mechanical transmission areas.

Mechanical belt conveyors drive system is composed of ATA shaft mounted speed reducer, torque arm, pulleys and gear motors, whose power transmission from the gear motor to the gearbox through the pulley, and then speed reducer passed to the drive pulley through the hollow output shaft and the gearbox is fixed by torque arm, anti-slip device can be configured. The system is convenient to install,use and maintain.

The features of ATA shaft mounted gearbox:
Mounting Type: Tie rod Hanging shaft mounted
Output Shaft: Single key hollow shaft, each model can select three hollow diameter at most.
Gearbox Housing: Hard Iron Steel, can be used outside.
Anti-slip device: Can suit for any model, It's very convenient to be mounted.

The applications of ATA shaft mounted gearbox:
Agriculture, commerce, telecommunications industry, the food industry, tobacco industry, automobile industry, cement industry, mining industry, mixing station belt conveyor system.

Rated Power1.1~193KW

Intput Speed500~1400r/min

Output Speed25~300r/min

RatioI=5.0...31.5

Installation FormShaft mounted


The models of ATA shafted mounted gearbox:ATA35 ATA40 ATA45 ATA50 ATA60 ATA70 ATA80 ATA100 ATA125

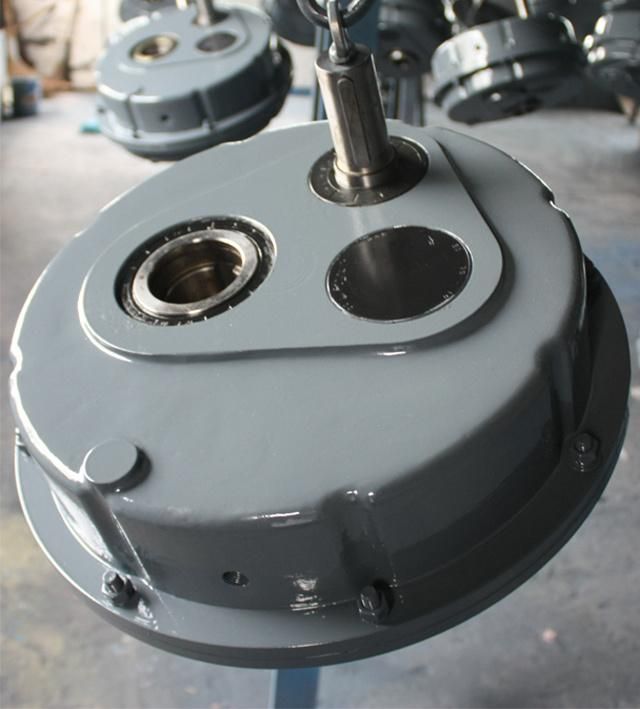

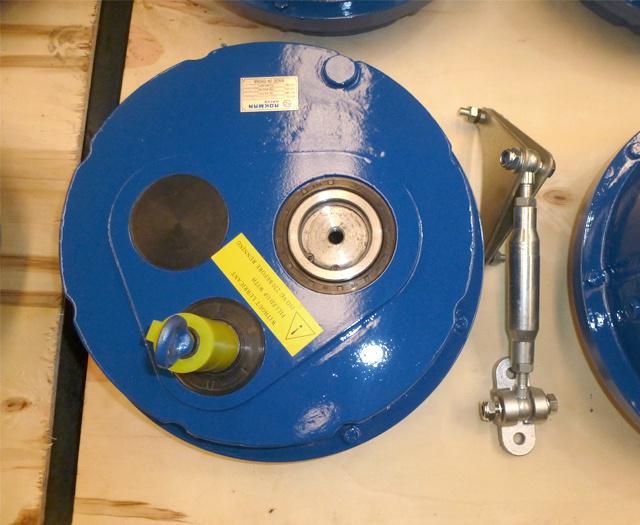

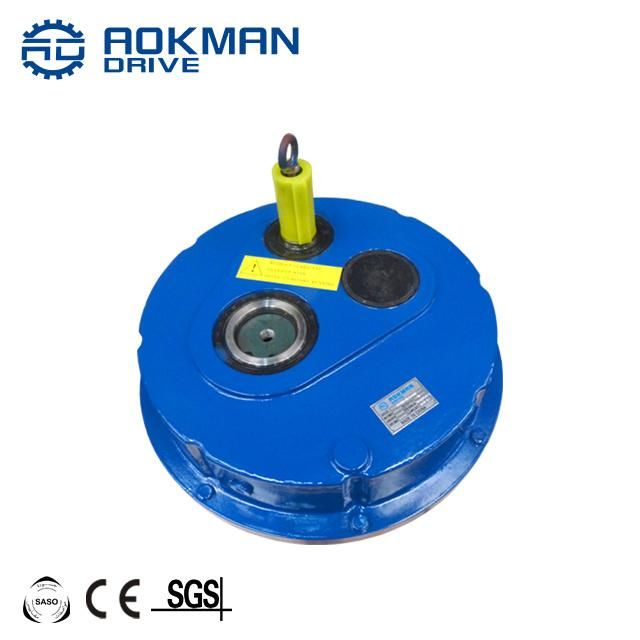

Product pictures:

Ta Round Shaft Mounted Speed Reducer with Torque Arm

Ta Round Shaft Mounted Speed Reducer with Torque Arm
Ta Round Shaft Mounted Speed Reducer with Torque Arm
Ta Round Shaft Mounted Speed Reducer with Torque Arm

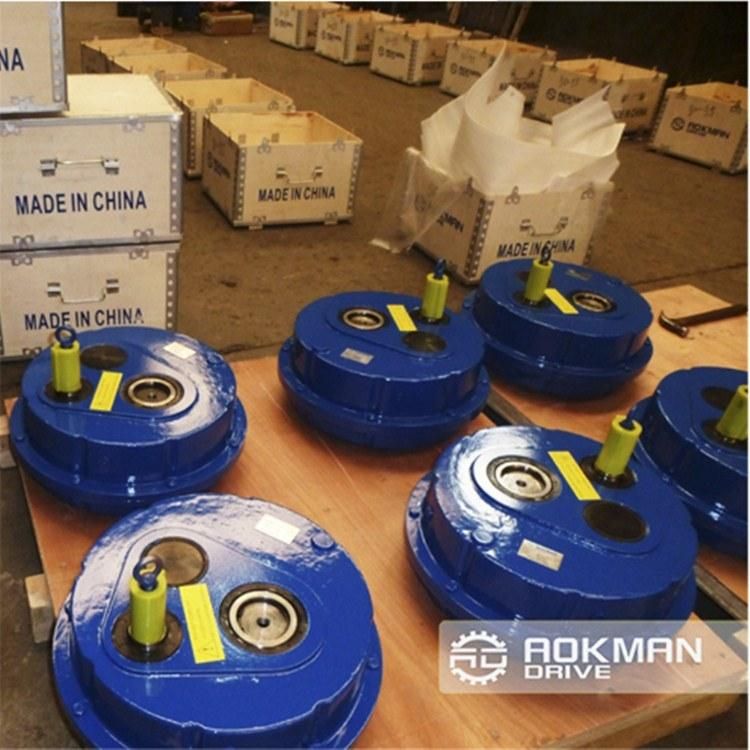

Packing:
Ta Round Shaft Mounted Speed Reducer with Torque Arm

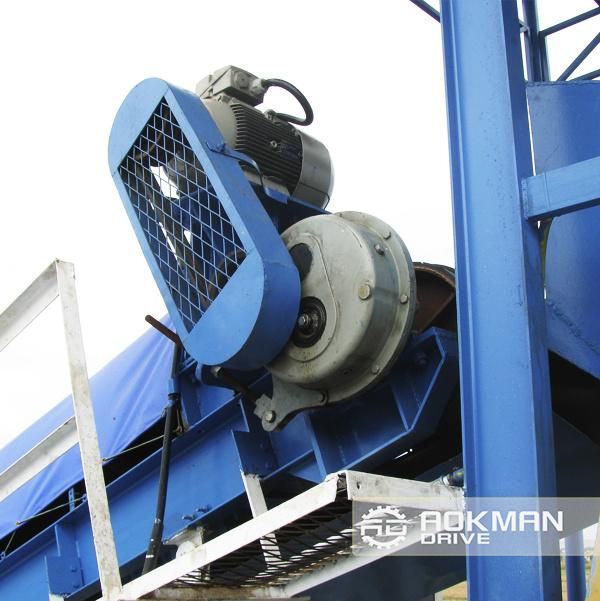

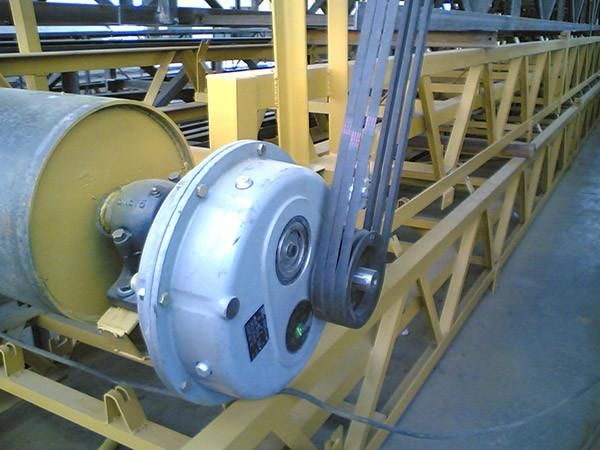

Product application:

Ta Round Shaft Mounted Speed Reducer with Torque Arm
Ta Round Shaft Mounted Speed Reducer with Torque Arm

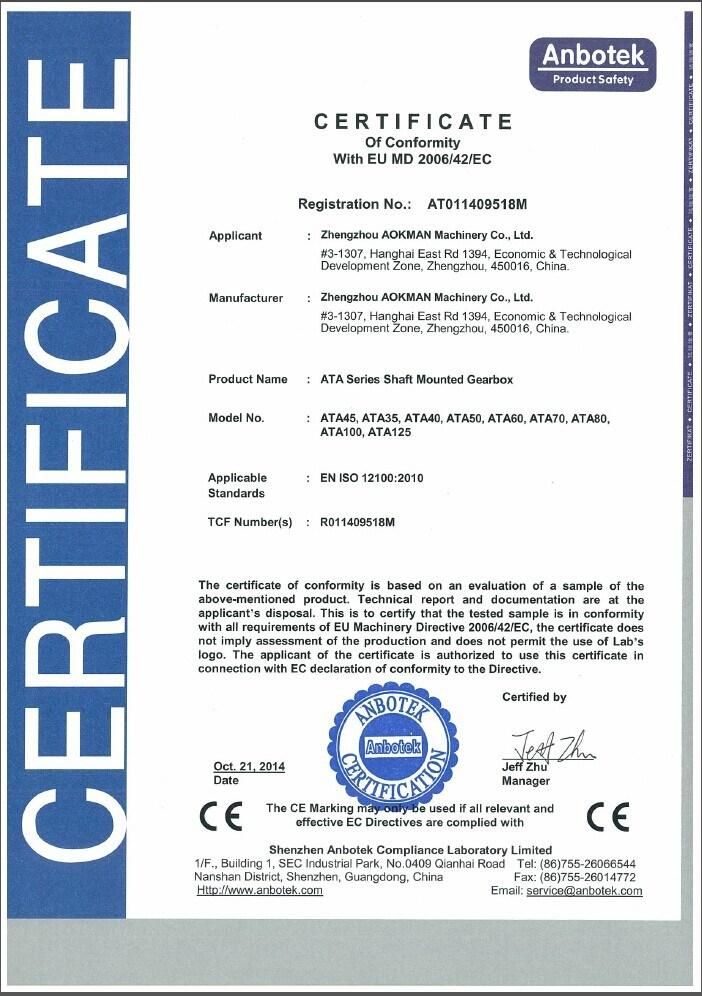

Certificate:
Ta Round Shaft Mounted Speed Reducer with Torque Arm

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
Ta Round Shaft Mounted Speed Reducer with Torque Arm

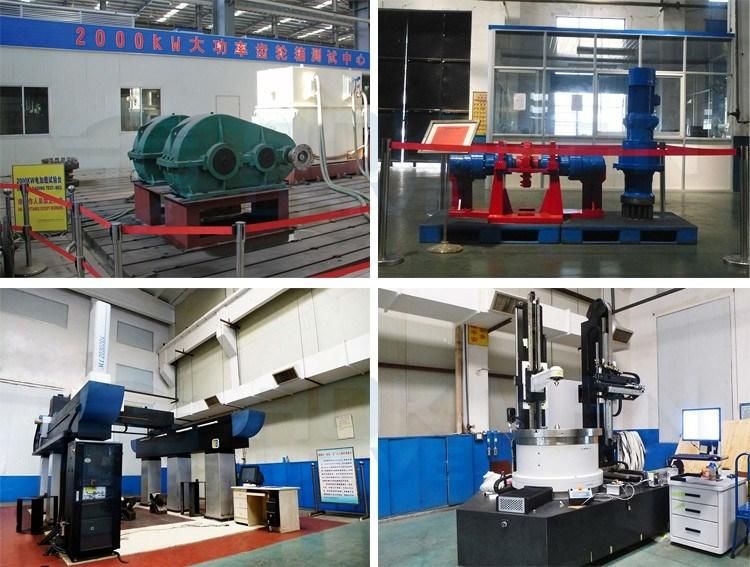

Customer visiting:
Ta Round Shaft Mounted Speed Reducer with Torque Arm
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
