• Model NO.：ATA
• Type：Bevel Gear
• Rated Power：1.1kw-193kw
• Speed Ratio：5-31
• Rated Torque：180-17000n.M
• Mounting Type：Tie Rod Hanging Shaft Mounted
• Voltage：380-440V
• Material：Cast Iron
• Manipulate Way：Forced Manipulation
• Toothed Portion Shape：Curved Gear
• Changes Way：Stepped
• Manufacturing Method：Forging Gear
• Transport Package：Wooden Case
• Specification：ISO, CE, SGS
• Trademark：Akoman
• Origin：China
• HS Code：8483409000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. ATA Type Bevel Gear Rated Power 1.1kw-193kw Speed Ratio 5-31 Rated Torque 180-17000n.M Mounting Type Tie Rod Hanging Shaft Mounted Voltage 380-440V Material Cast Iron Manipulate Way Forced Manipulation Toothed Portion Shape Curved Gear Changes Way Stepped Manufacturing Method Forging Gear Transport Package Wooden Case Specification ISO, CE, SGS Trademark Akoman Origin China HS Code 8483409000 Production Capacity 50000PCS/Year

Product Description

ATA Series Shaft Mounted Speed Reduction Gearbox
ATA series shaft mounted gear reducers with hardened gears have high carrying capacity, smooth transmission, light weight, low energy consumption and so on characteristics, input shaft of reducer is connected with motor by belt pulley, output hollow shaft linked with a key. It could be instead of electric drum to be power source for a belt conveyors and lifting equipments. It is widely applied in the mining equipments, Concrete mixing batching plant, Stone Crushers, Sand making production line and other belt conveyor mechanical transmission areas.

The application of ATA shaft mounted gearbox:
Agriculture, commerce, telecommunications industry, the food industry, tobacco industry, automobile industry, cement industry, mining industry, mixing station belt conveyor system.

Out-put shaft: Single key hollow shaft, each model can select three hollow diameter at most.
Anti run back device: Can meet any model, It's very convenient to be mounted.

Gearbox Housing: Hard Iron steel, can be used outside.
Anti run back device: Can meet any model, It's very convenient to be mounted.

Mechanical belt conveyor drive system is composed by ATA shaft-mounted gearbox, torque arm, pulleys and motors. Whose power transmission from the motor to the gearbox through the pulley, and then gearbox passed to the drive pulley through the hollow shaft and the gearbox is fixed by torque arm, anti-down device can be configured. The system is convenient to install use and maintain

The maintenance of ATA shaft mounted gearbox:
1. Before starting the reducer must be filled of N159 or N220 extreme pressure industrial gear oils, till the gearbox oil shows an intermediate position
2. After three months running, the gearbox need to change oil, attention it must be debris inside the machine rinse before adding new oil.
3. At the reducer hollow shaft ends and drive pulley end gland plate must fastened with locking screws.
4. The reducer pulley and the motor pulley must be parallel when they are installed and the belt tightness should be moderate.



Rated Power	Rated Torque	Input Speed	Output Speed	Backstop
1.1KW~193KW	180~17000N.m	1400r/min, 900r/min, 500r/min	25~300r/min	Alternative parts, Anti-slip device

The models of ATA shafted mounted gearbox:
ATA35 ATA40 ATA45 ATA50 ATA60 ATA70 ATA80 ATA100 ATA125

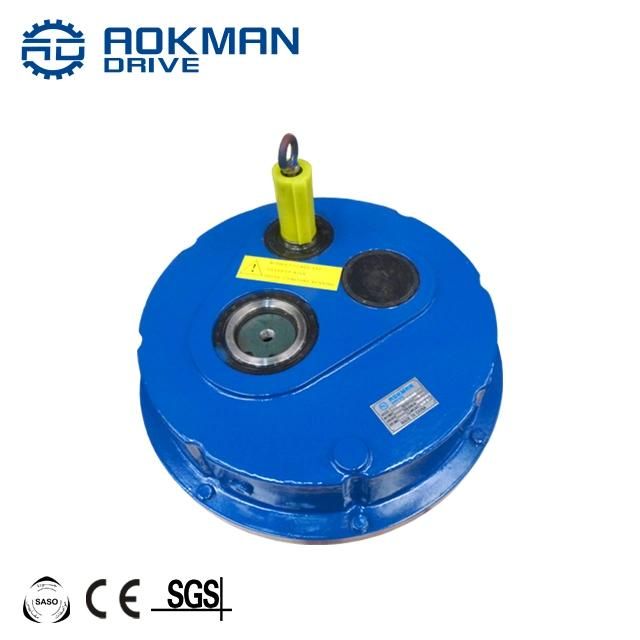

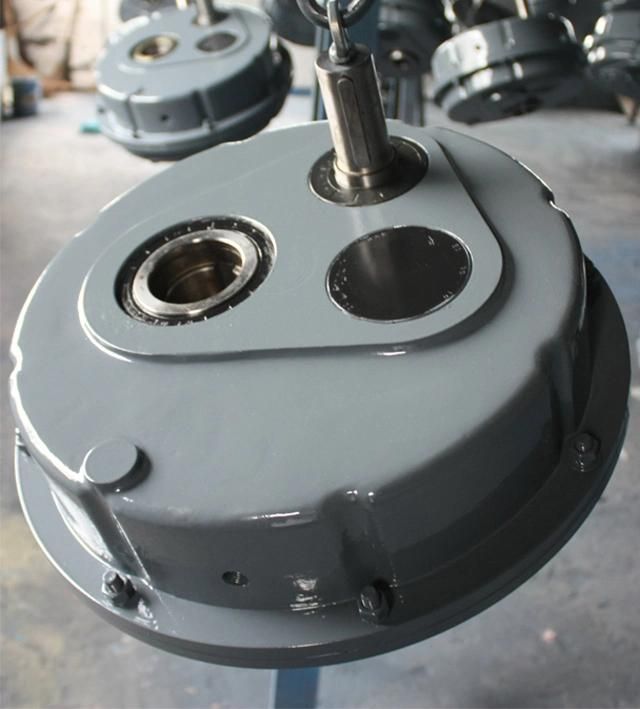

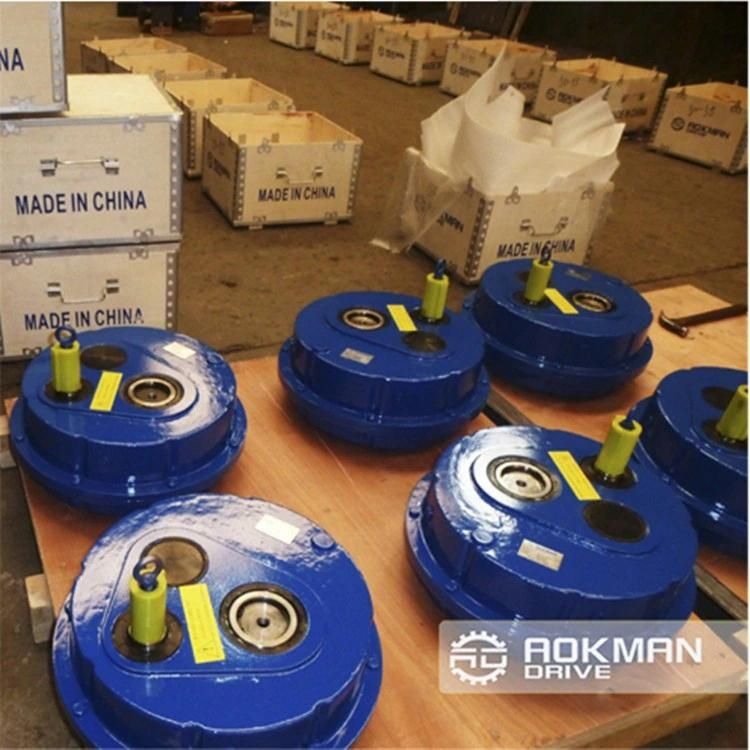

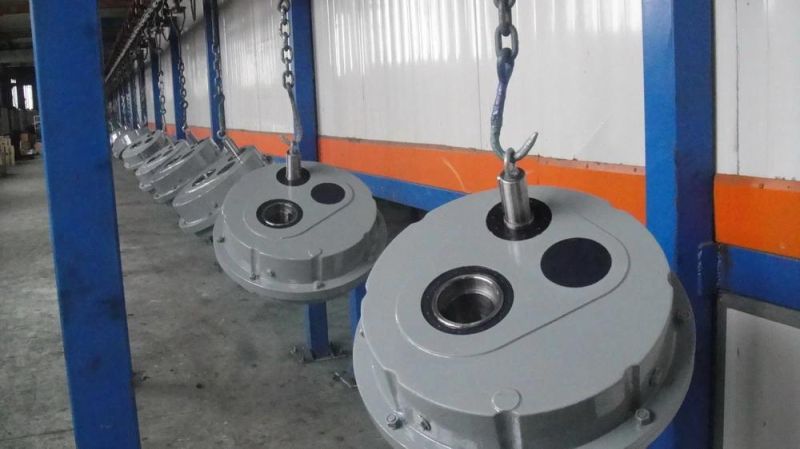

Product pictures:

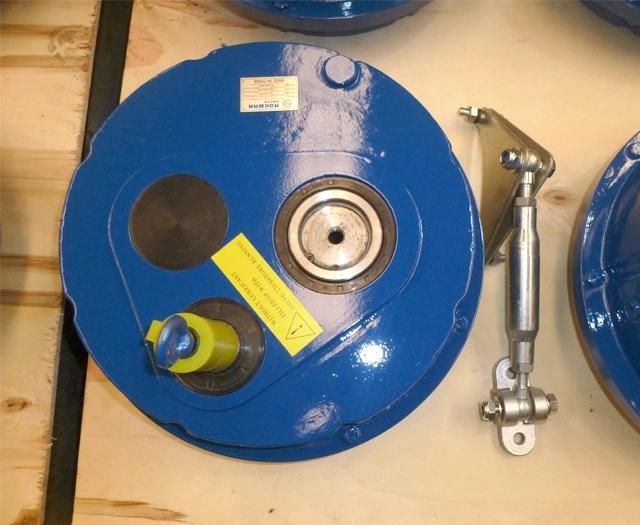

Packing:

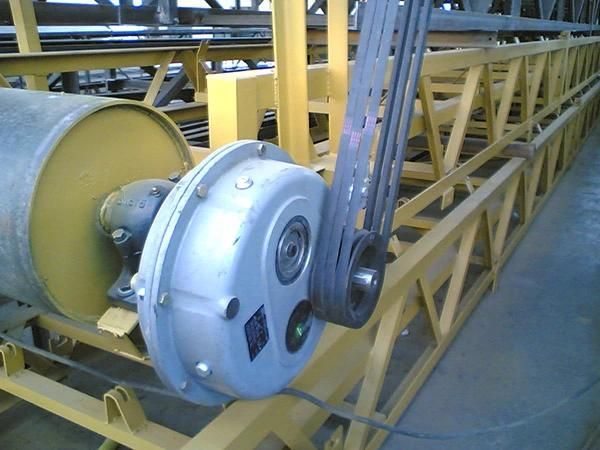

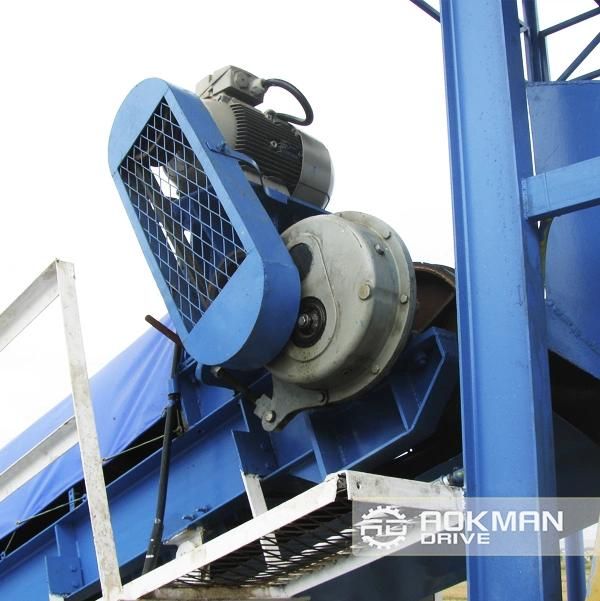

Product application:

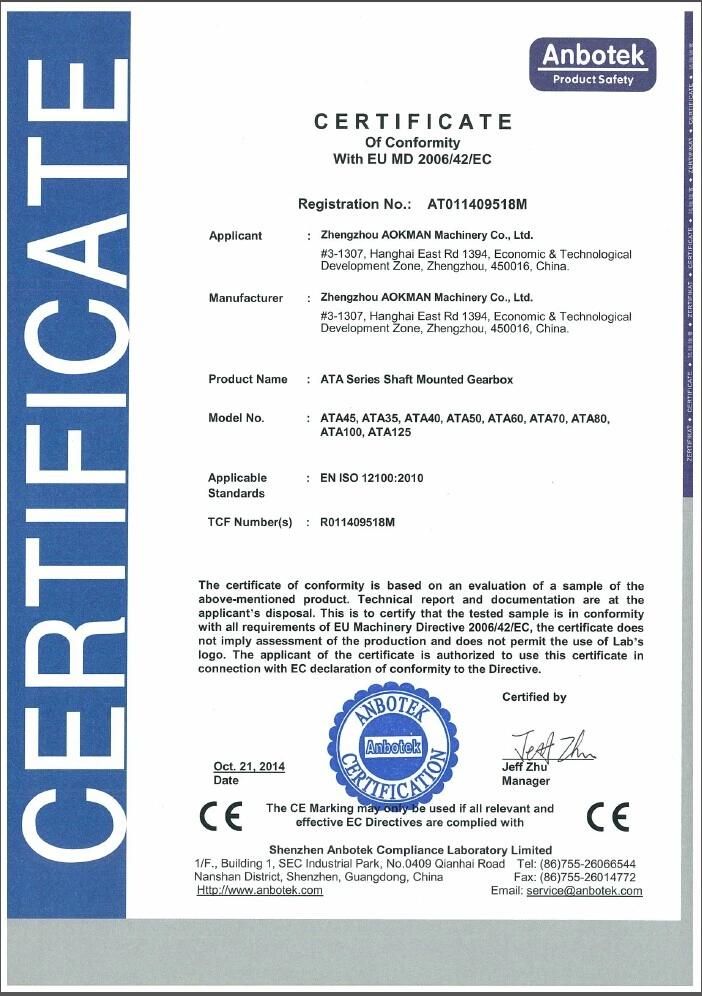

Certificate:

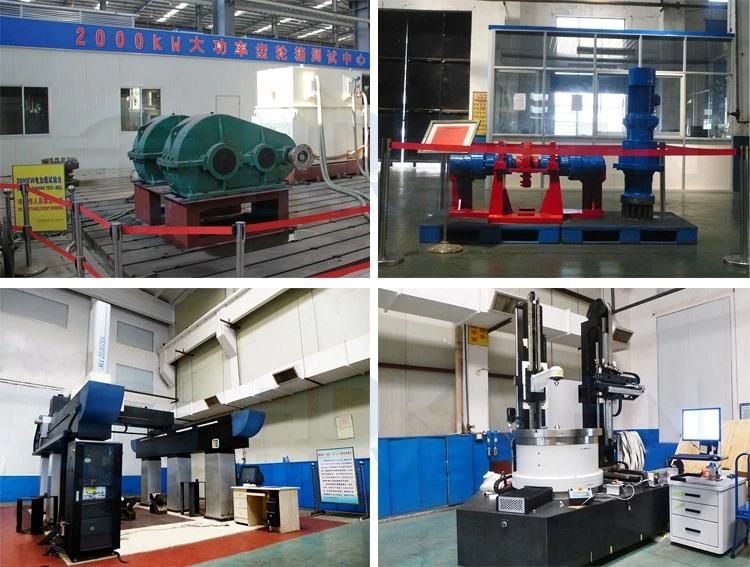

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.

Customer visiting:

FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
