Wire Mesh Belt for Pizza, Bread, Chocolate, Biscuit
Anping County Dinghe Wire Mesh Co., Ltd.- Standard or Nonstandard：Nonstandard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Carbon Steel
- Type：Steel
Base Info
- Model NO.：DFGH
- Max Width：9m
- Transport Package：Wooden Case
- Specification：1x20m
- Trademark：hxmesh
- Origin：China
- HS Code：73141400
- Production Capacity：1000m,Day
Description
Basic Info.
Model NO. DFGH Max Width 9m Transport Package Wooden Case Specification 1x20m Trademark hxmesh Origin China HS Code 73141400 Production Capacity 1000m/DayProduct Description
Wire Mesh Belt for Pizza, Bread, Chocolate, Biscuit

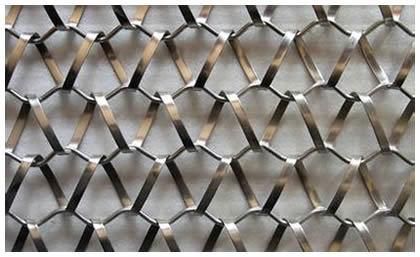

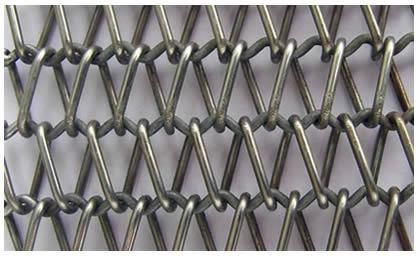

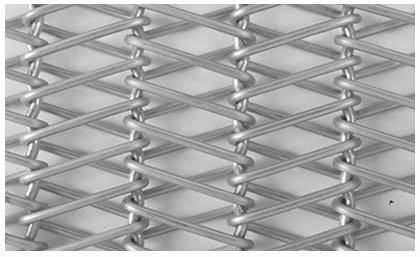

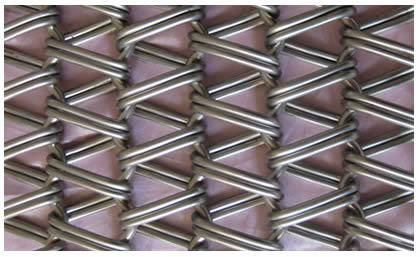

Balanced weave conveyor belts, also known as wide spiral link belts, are constructed of round or flat spiral wires joined by crimped rods. Driven, tensioned and guided by a sprocket or a plain roller, balanced weave conveyor belt is an economical choice to provide smooth and stable movement for medium load applications and various others as shown below:
- Food processing industrial such as draining, cooling, baking and washing, etc.
- Glass and ceramic industry.
- Metalworking and hardening.
- Chemical industry such as conveying rubber and plastic products.
- Serving as screen, guard and mesh panels.
- Decoration.
- Acting as heat treatment belt or pasteurizing belt, etc.
Specification:
| Type | Spiral wire pitch | Cross rod pitch | Spiral wire diameter | Cross wire diameter |
| BWCB-1 | 4mm | 4mm | 0.9mm to 1.2mm | 1.2mm to 1.6mm |
| BWCB-2 | 5mm | 6.4mm | 0.9mm to 1.2mm | 1.2mm to 1.6mm |
| BWCB-3 | 5mm | 5mm | 0.9mm to 1.6mm | 1.2mm to 1.6mm |
| BWCB-4 | 6mm | 6mm | 0.9mm to 1.6mm | 1.2mm to 1.6mm |
| BWCB-5 | 6mm | 8mm | 0.9mm to 1.2mm | 1.2mm to 1.6mm |
| BWCB-6 | 6mm | 10mm | 0.9mm to 1.6mm | 1.2mm to 1.6mm |
| BWCB-7 | 8mm | 12mm | 1.2mm to 2.0mm | 1.2mm to 2.5mm |
| BWCB-8 | 8mm | 13mm | 1.2mm to 2.0mm | 1.2mm to 2.5mm |
Features:
- Quality cross rods with larger diameter than spiral wires for higher durability.
- Never creep to either side.
- Temperature range: -50°C to 1100°C.
- Quick and easy to install.
- Simple maintenance by replacing the broken parts easily.
- Resistant to acid, alkaline, chemical, abrasion and corrosion.
- Simple structure with smooth conveying surface.
- Long service life.
- Minimum maintenance.
- Complying with food safety standards such as FDA, GMP and others up your request.
