• Type：Helical
• Motor Power：0.18kw-160kw
• Voltage：380V ( Also Done as Your Need)
• Frequency：50,60Hz
• Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
• Color：Done as Your Need (Connon Blue)
• Gearbox Body：Cast Iron
• Surface Hardness of Gear：HRC58°-62°
• Protection Grade：IP55
• Gear：20crmnti
• Housing Hardness：Hbs90-240
• Transport Package：Carton ,Plywood Case,Wooden
• Trademark：GPHQ
• Origin：China
• HS Code：84834090
• Production Capacity：200000,Year

Basic Info.

Type Helical Motor Power 0.18kw-160kw Voltage 380V ( Also Done as Your Need) Frequency 50/60Hz Enamelled Wire Copper Wire ( Also Done Aluminum as Your Need) Color Done as Your Need (Connon Blue) Gearbox Body Cast Iron Surface Hardness of Gear HRC58°-62° Protection Grade IP55 Gear 20crmnti Housing Hardness Hbs90-240 Transport Package Carton /Plywood Case/Wooden Trademark GPHQ Origin China HS Code 84834090 Production Capacity 200000/Year

Product Description

> Product Introduction

R47 1HP/CV 0.75kw Helical Gear Box


GPHQ.R helical speed gearbox motor  units are novel transmission device and composed of Y series motor, helical gear, Glisten arc cone gear and warm gear. The gears are made of high wear-resisting alloy materials, specially treated and finely processed.

GPHQ R helical gear box motor can be single-stage or multi stage with both mounting ways foot-mounted and flange-mounted. For high output speeds, the exclusively single-stage gear units R27-RX167 offer compact solutions for your system design. As for the two-stage and three-stage,

GPHQ.R helical speed reducer motor is based on the unique modulation combination system, so it is convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power, so that its possible for different types of machines to combine or connect.

> Motor Materials

housing material:	HT2OO high-strength cast iron from R37,47,57,67,77,87 HT250 High strength cast iron from R97,107,137,147,167
Gear material:	20CrMnTi
Housing hardness	HBS90-240
Surface hardness of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40Cr
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal position hardness	HRC48 ° -55 °
Machining precision of gears material	Accurate grinding 6-5 grade
Efficiency	up to 98%
Noise(Max)	60-68dB
Temp.rise:	40°C
Vibration	≤20um
Motor	IP54, F class ,B5 FLANGE
color :	blue  (if you need big quantity ,we can done as your wanted color )

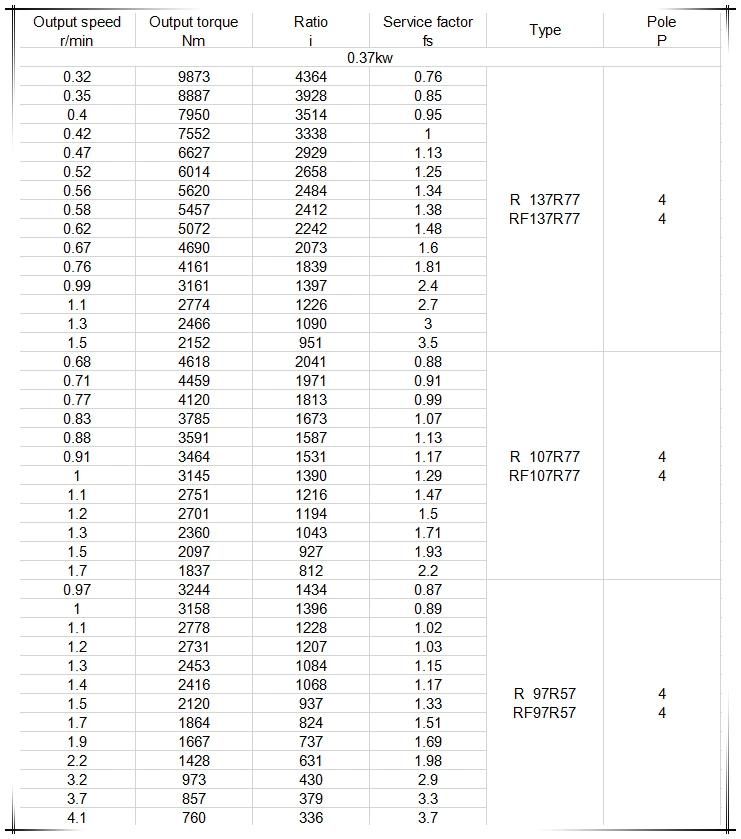

>  Partial Product Data






> Our Electric Motor Advantages

1. Reasonable price with excellent quality
2.Each one tests carefully
3.Clear nameplate
4.Reliable package
5.High efficiency, smooth runingand low noise
6.Best materials make best performance

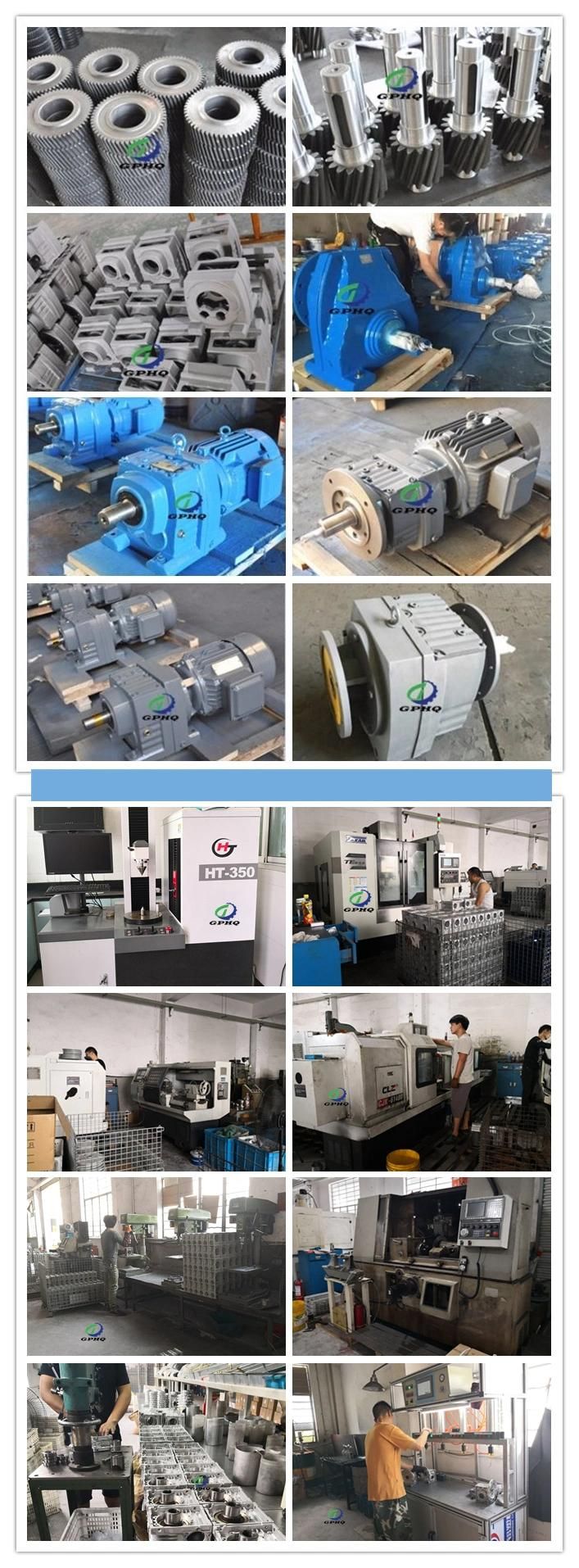

> Producing Process

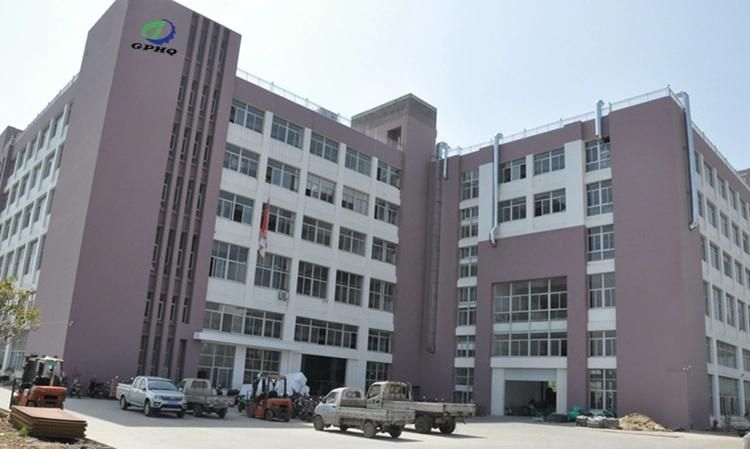

> About Us



TAIZHOU EXTENSION SPEED ELECTRICITY CO.,LTD (WENLING GOOD COMMERCE & TRADE CO.LTD) specializes in the sales of all kinds of gearbox , electric motors. On the sales service and management has accumulated rich experience, has a number of highly qualified technical personnel, management norms, quality isstable. Products by the China national mandatory product certification, quality is reliable, reasonable structure,and make "environmental protection" and "energy saving" synchronization.

WENLING GOOD COMMERCE & TRADE CO.,LTD(GPHQ ) has always been in line with: "based on sincerity, good quality for first, the pursuit of excellence, pioneering and enterprising team, efficient, innovation" . perfect aftersales service; We will set up  a business under the bridge of friendship, hand in hand Create brilliant!








FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better.
