Wpa Type High Precision Worm Gear Motor Gearboxes

Zhejiang Tuosu Motor Manufacturing Co., Ltd.
  • Application：Motor, Machinery, Agricultural Machinery
  • Function：Speed Changing, Speed Reduction
  • Layout：Bevel
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Double-Step

Base Info

  • Type：Bevel
  • Motor Power：0.18kw-160kw
  • Voltage：380V ( Also Done as Your Need)
  • Frequency：50,60Hz
  • Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
  • Color：Done as Your Need (Common Blue)
  • Gearbox Body：Cast Iron
  • Surface Hardness of Gear：HRC58°-62°
  • Protection Grade：IP55
  • Gear：20crmnti
  • Housing Hardness：Hbs90-240
  • Transport Package：Carton ,Plywood Case,Wooden
  • Trademark：GPHQ
  • Origin：China
  • HS Code：84834090
  • Production Capacity：200000,Year

Description

Material:Cast iron body Worm Gear- Cooper-10-3 #Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRCShaft-chromium steel-45#Packing:Paper Carton,Plywood box / per set(With foam board inside)Warranty:1 yearInput Power:0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kwUsages:In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing,  dyeing,woodworking, glass and plastics…..IEC Flange:80B5,90B5,100B5,112B5,132B5....Lubricant:Synthetic & Mineral

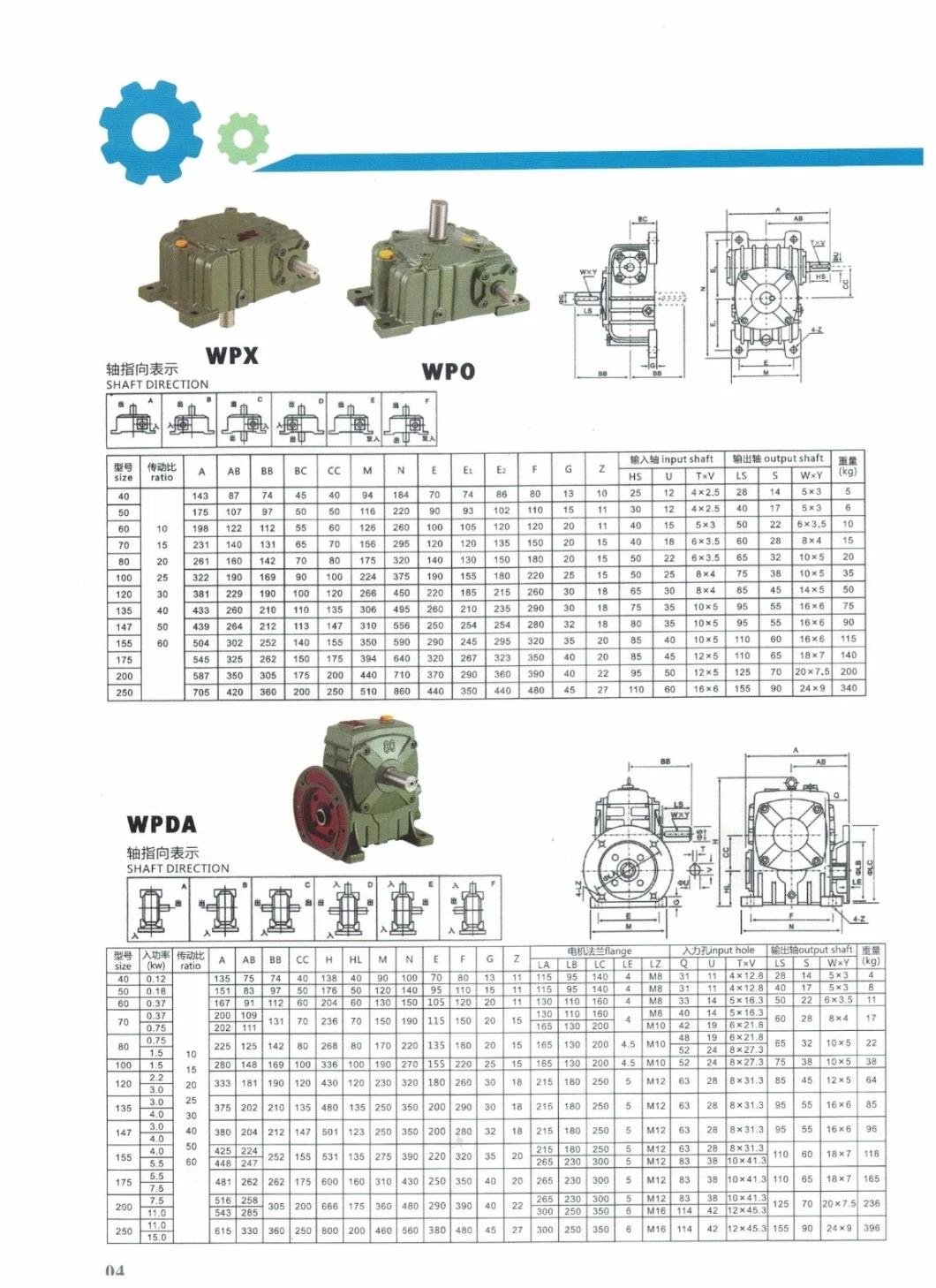

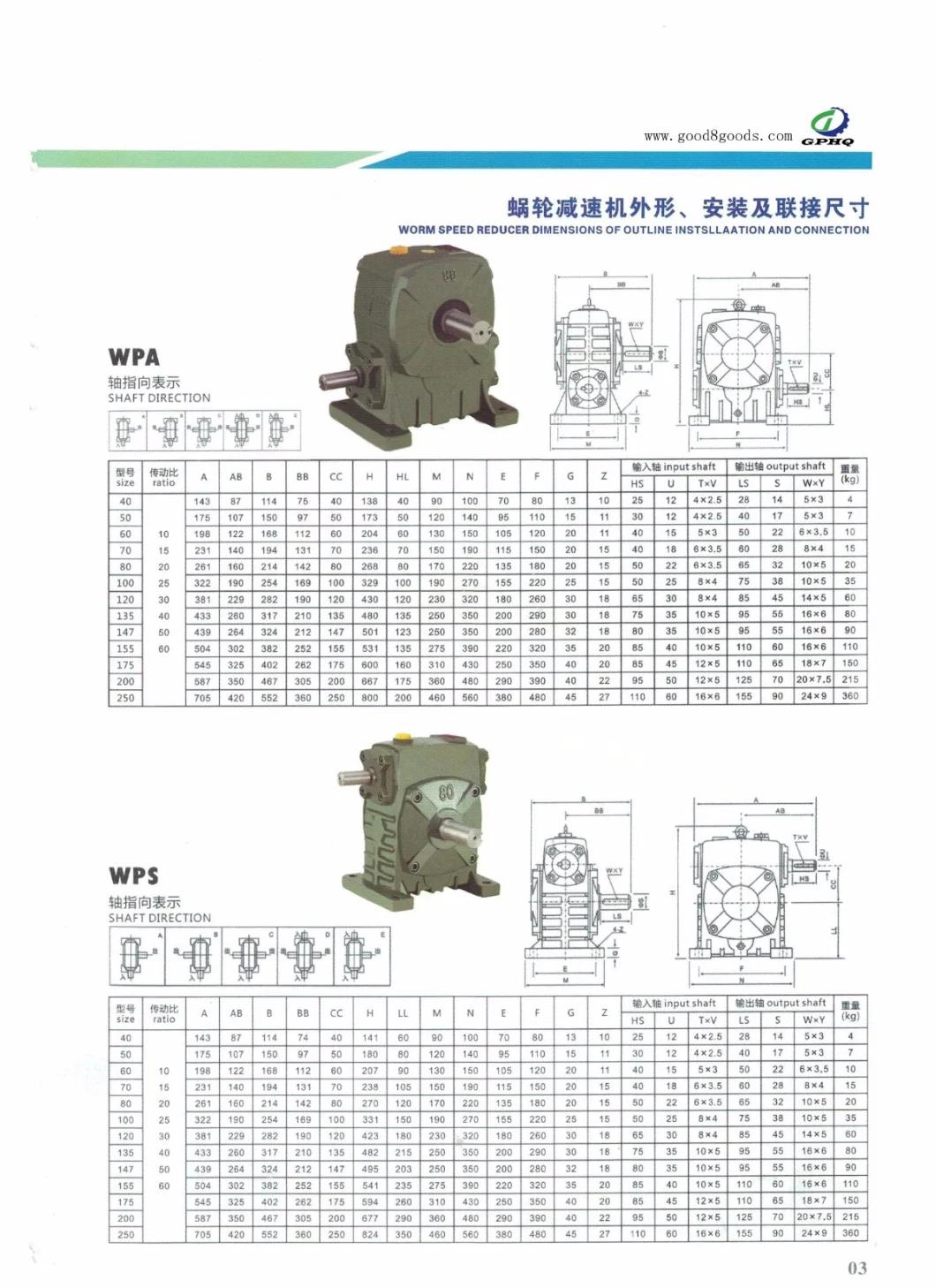

> Catalogue

Wpa Type High Precision Worm Gear Motor Gearboxes
Wpa Type High Precision Worm Gear Motor Gearboxes





> Our Motor Advantages

1. Reasonable price with excellent quality
2.Each one tests carefully
3.Clear nameplate
4.Reliable package
5.High efficiency, smooth runingand low noise
6.Best materials make best performance

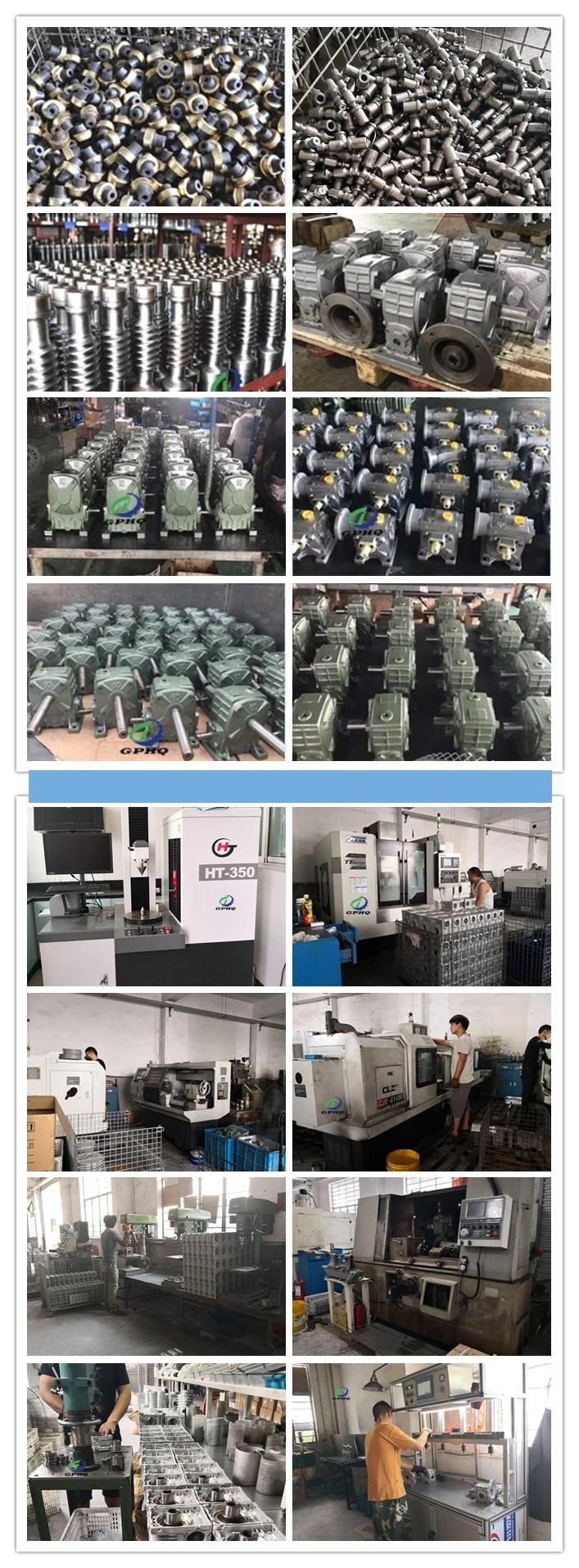

> Producing Process
Wpa Type High Precision Worm Gear Motor Gearboxes

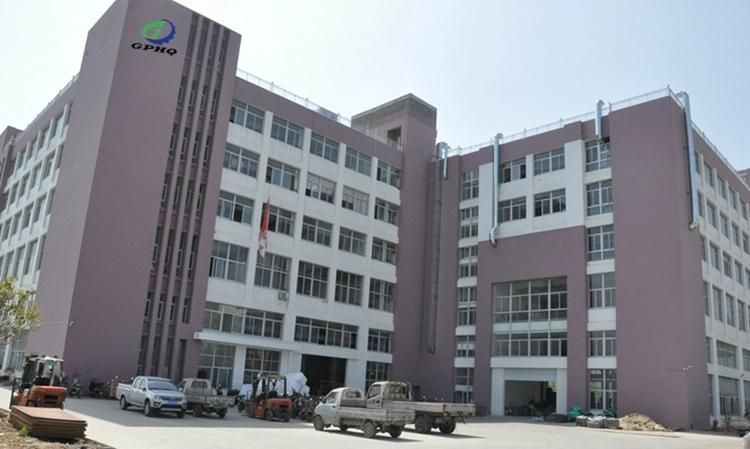

> About Us

Wpa Type High Precision Worm Gear Motor Gearboxes

TAIZHOU EXTENSION SPEED ELECTRICITY CO.,LTD (WENLING GOOD COMMERCE & TRADE CO.LTD) specializes in the sales of all kinds of gearbox , electric motors. On the sales service and management has accumulated rich experience, has a number of highly qualified technical personnel, management norms, quality isstable. Products by the China national mandatory product certification, quality is reliable, reasonable structure,and make "environmental protection" and "energy saving" synchronization.

WENLING GOOD COMMERCE & TRADE CO.,LTD(GPHQ ) has always been in line with: "based on sincerity, good quality for first, the pursuit of excellence, pioneering and enterprising team, efficient, innovation" . perfect aftersales service; We will set up  a business under the bridge of friendship, hand in hand Create brilliant!
Wpa Type High Precision Worm Gear Motor Gearboxes



FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better.
