55kw Motor 4 Poles (1500 rpm) 400V/690V IP55 Sf1.00 (Service Factor) Effeciency Class Ie4 Environmental Temperature Max 40c Temp Increase of 80 K
Anhui Wannan Electric Machine Co., Ltd.- Standard or Nonstandard：Standard
- Feature：Electric Motor
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Driving Equipment
- Surface Treatment：Painting
- Material：Cast Iron
- Power：0.37~375kw
Base Info
- Model NO.：YE4-250M-4
- Frame：H80, 90, 100, 112, 132...355
- Speed：3000rpm, 1500rpm, 1000rpm, 750rpm
- Housing：Aluminum or Cast Iron
- Duty：S1
- Ins. Class：F,H
- Temp Rise：B
- Mounting：B3, V1, B14, B34, B5, B35
- Voltage：220V~690V
- Freq.：50Hz, 60Hz
- Cooling Method：IC411, IC416, IC410
- Efficiency：Ie4
- Protection：IP55, IP56, IP65
- Bearing：C&U, SKF, FAG, NSK
- Terminal Box：Top, Side
- Transport Package：Seaworthy Package
- Specification：281*139*180mm
- Trademark：WNM
- Origin：Jingxian, Anhui, China
- HS Code：8501520000
- Production Capacity：50000 PCS,Month
Description
Synchronous speed 3000 r/minYE4-80M1-2 0.75 1.6 2895 84.9 0.83 2.5 2.2 7.0 2.3 62 YE4-80M2-2 1.1 2.3 2885 86.7 0.83 3.7 2.2 7.3 2.3 62 YE4-90S-2 1.5 3.1 2880 87.5 0.84 5.0 2.2 7.6 2.3 67 YE4-90L-2 2.2 4.4 2875 89.1
9 0.85 7.3 2.2 7.6 2.3 67 YE4-100L-2 3 5.8 2905 89.7 0.87 9.9 2.2 7.8 2.3 74 YE4-112M-2 4 7.6 2920 90.3 0.88 13.1 2.2 8.3 2.3 77 YE4-132S1-2 5.5 10.4 2945 91.5 0.88 17.8 2.0 8.3 2.3 79 YE4-132S2-2 7.5 14.1 2940 92.1 0.88 24.4 2.0 7.9 2.3 79 YE4-160M1-2 11 20.2 2965 93.0 0.89 35.4 2.0 8.1 2.3 81 YE4-160M2-2 15 27.4 2965 93.4 0.89 48.3 2.0 8.1 2.3 81 YE4-160L-2 18.5 33.7 2965 93.8 0.89 59.6 2.0 8.2 2.3 81 YE4-180M-2 22 39.8 2970 94.4 0.89 70.7 2.0 8.2 2.3 83 YE4-200L1-2 30 54.2 2960 94.5 0.89 96.8 2.0 7.6 2.3 84 YE4-200L2-2 37 66.6 2960 94.8 0.89 119 2.0 7.6 2.3 84 YE4-225M-2 45 79.9 2970 95.1 0.90 144.7 2.0 7.7 2.3 86 YE4-250M-2 55 97.3 2975 95.4 0.90 177 2.0 7.7 2.3 89 YE4-280S-2 75 132 2980 95.6 0.90 240 1.8 7.1 2.3 91 YE4-280M-2 90 159 2975 95.8 0.90 289 1.8 7.1 2.3 91 YE4-315S-2 110 193 2985 96.0 0.90 352 1.8 7.1 2.3 92 YE4-315M-2 132 232 2985 96.0 0.90 422 1.8 7.1 2.3 92
Show Room
Certificates
Premium Service
Quality Control

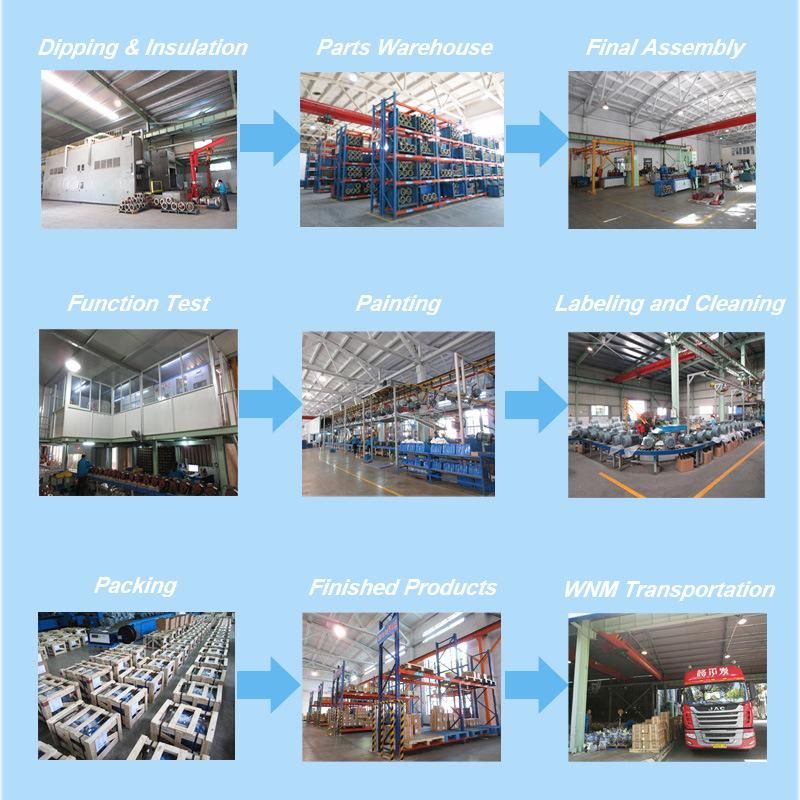

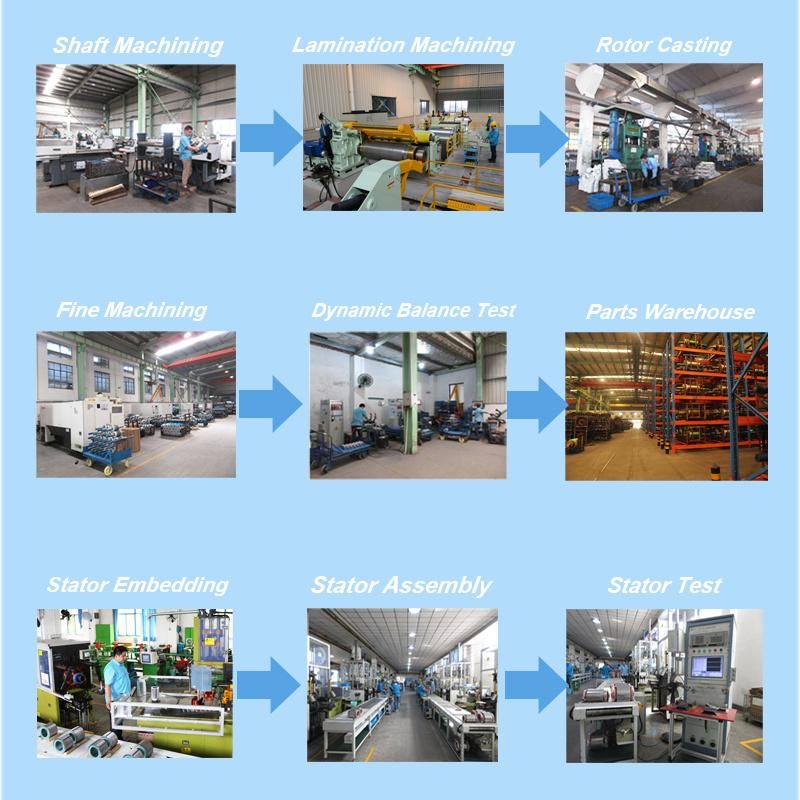

Wannan Motor Production Workshop and Flow Charts
