Shtdn High Speed Gearbox for Twin Screw Extruder Machine

NANJING ZHITIAN MECHANICAL AND ELECTRICAL CO., LTD.
  • Application：Machinery
  • Function：Speed Reduction
  • Layout：Double Drive Gearbox
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Three-Step

Base Info

  • Model NO.：SHTDN
  • Type：Worm Gear Box
  • Experience：20 Years
  • Transport Package：Wooden Box
  • Specification：1.5T
  • Origin：China

Description

SHTDN Gearbox Power&Torque TableModelRPM(r/min)Power(kw)Torque Grade(T/A3)CD(mm)SHTD-20N6007.510.23188001111.26SHTD-25N6001511.212280018.510.379002210.96SHTD-30N600229.96268003010.189003711.17SHTD-35N30018.510.9305003010.616003710.98005011.059006011.79SHTD-40N3003011.6334.54004513.085005512.796006512.598009013.089009011.63SHTD-50N3005511.82424007512.085009011.660011011.8180013210.6390016011.45SHTD-52N3005511.01434007511.265009010.8160011011.018001329.990016010.68SHTD-58N3009012.954840011011.8750016013.8160020014.3980025013.4990028013.43SHTD-65N30011012.455240013211.250016010.8660022012.4580028011.8890031511.88SHTD-75N30016011.796040022012.1650025011.0560031511.6180045012.4390050012.28SHTD-85N30022011.2367.840031512.0750040012.2560050012.7680060011.4990065011.06SHTD-95N30035011.747840045011.3250055011.0760065010.980090011.31900100011.18SHTD-110N30056012.229240071011.6250090011.79600112012.22800125010.23900140010.18SHTD-125N30080012.73100400140016.71500170016.23600210016.71800270016.11SHTD-135N300100011.95110400160014.35500210015.06600250014.94800350015.69



Production Process





Shtdn High Speed Gearbox for Twin Screw Extruder Machine



NO.1

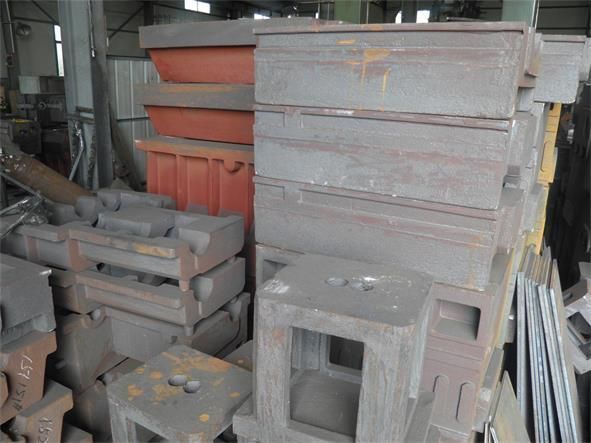

Workblank



Select high quality and hardness of ductile iron material.



NO.2

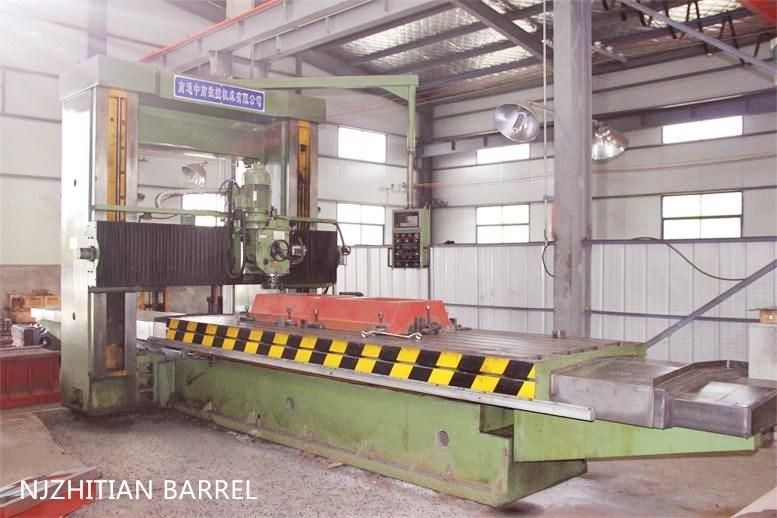

Rough Machining



Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.



Shtdn High Speed Gearbox for Twin Screw Extruder Machine

Shtdn High Speed Gearbox for Twin Screw Extruder Machine



NO.3

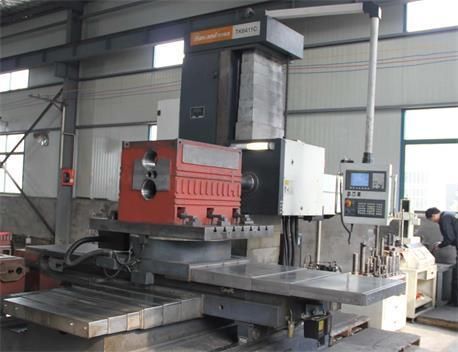

Finish Machining



Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.



NO.4

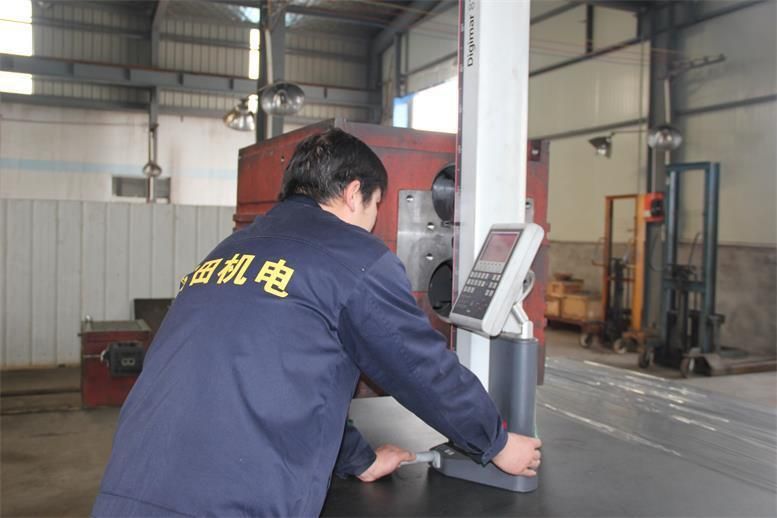

Gearbox Inspection



High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.



Shtdn High Speed Gearbox for Twin Screw Extruder Machine

Shtdn High Speed Gearbox for Twin Screw Extruder Machine



NO.5

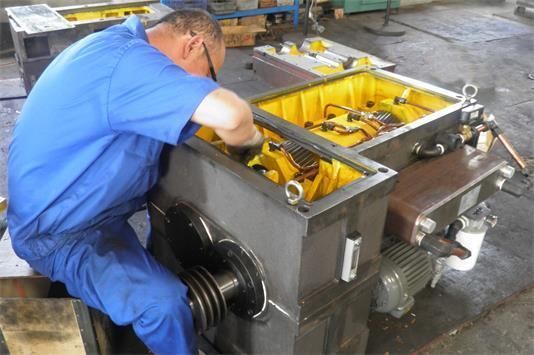

Assemble



Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.



NO.6

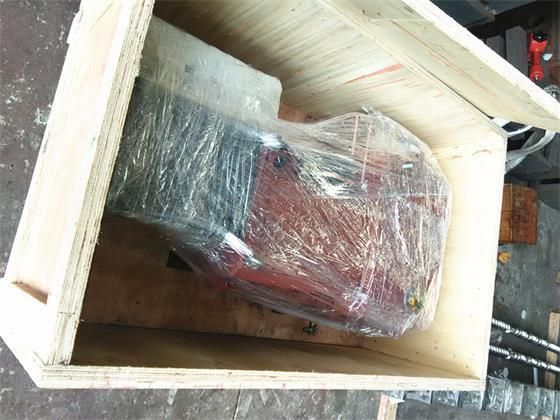

Delivery



Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.
