Rexroth Gft Series Final Drive Gearbox Gft110t3 Series
Ningbo Kingbonny Machinery Imp. & Exp. Co., Ltd.- Application：Industry
- Hardness：Hardened
- Type：Bevel Gear
- Torque：110000nm
- Replace for：Rexroth Gft110 T3
- Ratio：95.83, 114.83, 128.60, 147.24, 173.86, 215.00
Base Info
- Model NO.：GFT110T3
- Material：Stainless Steel
- Manufacturing Method：Cast Gear
- Toothed Portion Shape：Spur Gear
- Changes Way：Mixed
- Manipulate Way：Hydraulic Oil
- Transport Package：Plywood Case
- Specification：ISO9001, CE
- Trademark：Bonny
- Origin：Ningbo, China
- HS Code：84122910
- Production Capacity：1500PCS,Month
Description
Basic Info.
Model NO. GFT110T3 Material Stainless Steel Manufacturing Method Cast Gear Toothed Portion Shape Spur Gear Changes Way Mixed Manipulate Way Hydraulic Oil Transport Package Plywood Case Specification ISO9001, CE Trademark Bonny Origin Ningbo, China HS Code 84122910 Production Capacity 1500PCS/MonthProduct Description

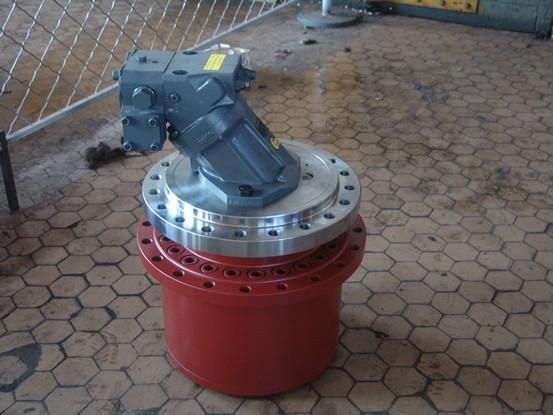

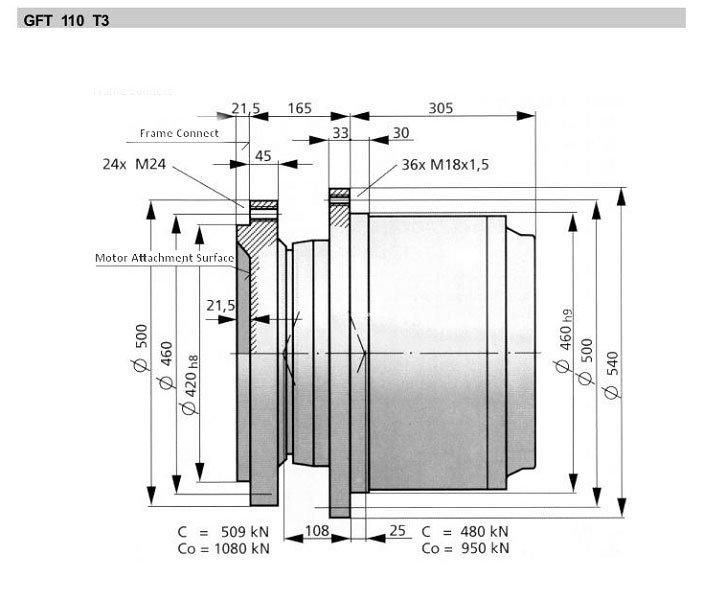

Model: GFT110T3 Series
Replace for: Rexroth GFT110 T3 Series

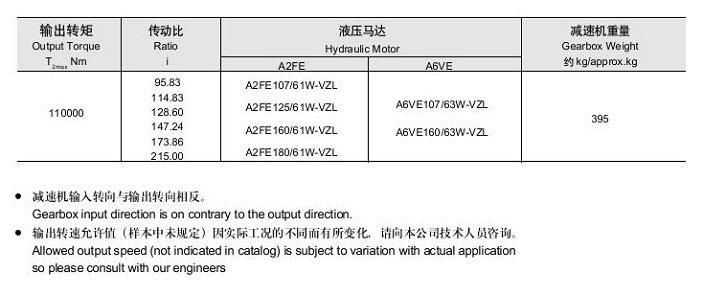

Ratio: 95.83, 114.83, 128.60, 147.24, 173.86, 215.00
Output Torque: 110000N.m
HYDROTRAC GFT is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.
Special Features:
1. Integr. multi-disc parking brake
2. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
3. Interchangeable with Rexroth on performance and dimension.
4. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).
