• Model NO.：H..B..
• Type：Non-Circular Gear
• 1-4：1-4
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Transport Package：Plywood Case, Steel Case
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：CHINA
• HS Code：8483409000
• Production Capacity：1000PCS,MONTH

Basic Info.

Model NO. H..B.. Type Non-Circular Gear 1-4 1-4 Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Transport Package Plywood Case/ Steel Case Specification ISO9001: 2008 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 1000PCS/MONTH

Product Description

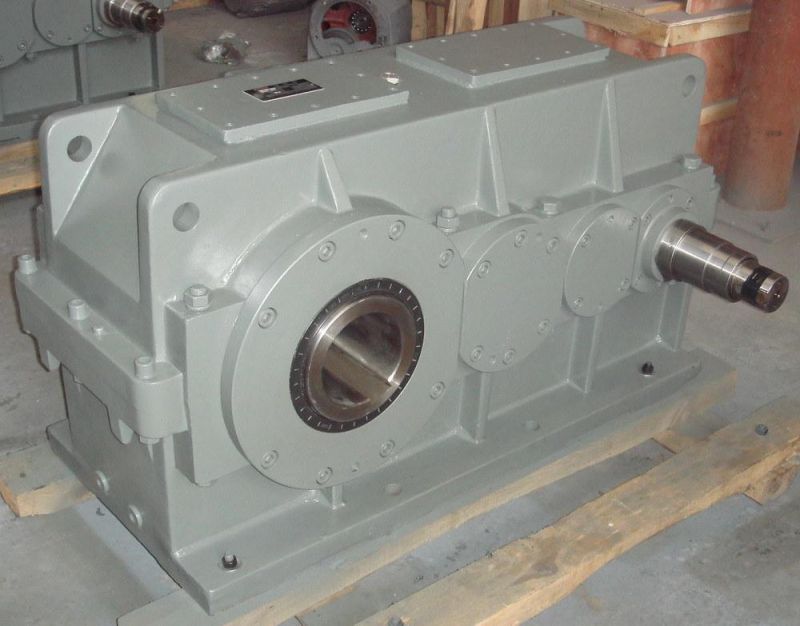

H. B series gear units adopt currency layout and may transform into special reducer according to customer's requirement.

The housing of one size can realize parallel shaft, right-angle shaft modes and horizontal, vertical mounting modes. Variety of components is reducible, the number of reducer's mode is augmentable.

Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.

Input mode: Motor connected flange, shaft input.

Output mode: Solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involutes splines, solid shaft with flange.

Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.

H. B series include sizes 3-26, number of stages is 1-4, Ratio is 1.25-450.
