Planetary Cast Iron Industrial Machinery Planetary Gear Reducers Planetary Gear Box
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Type：Planetary Gear Box

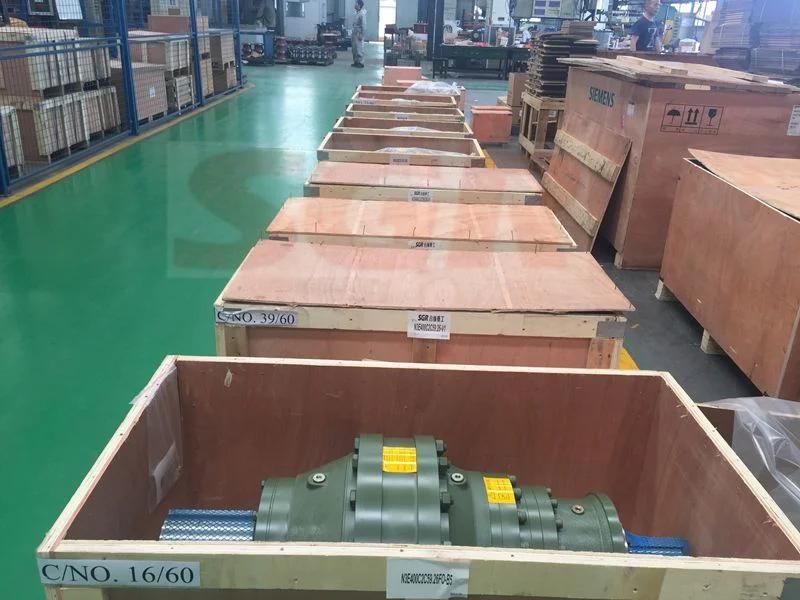

- Transport Package：Wooden Case
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Type Planetary Gear Box Transport Package Wooden Case HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Planetary Cast Iron Industrial Machinery Planetary Gear Reducers Planetary Gear BoxTechnical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of the flange, foot, or shaft mounting solutions

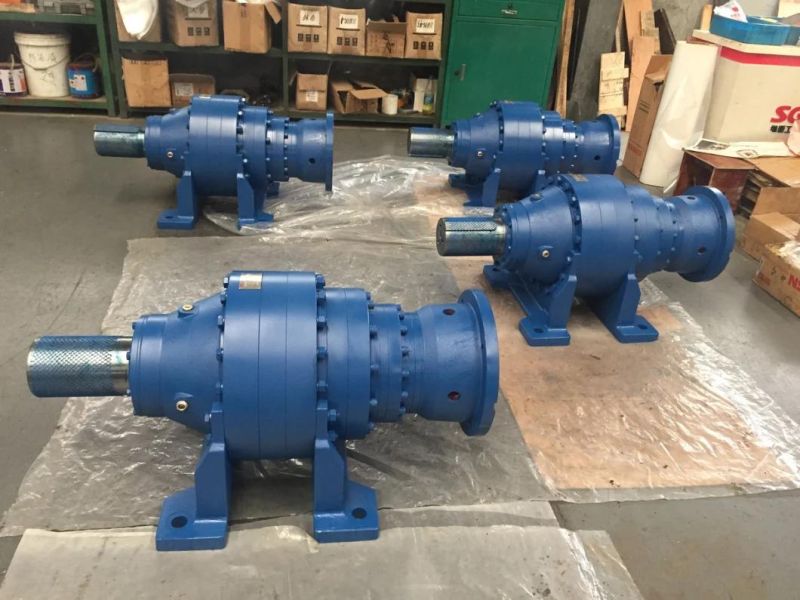

Characteristic of Foot Mounted High Torque Planetary Gearbox :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing
| Ratio | 3.15:1 to 9000:1 |
| Reduction Stages | up to 6 reduction stages in one gearbox |
| Nominal Output Torque | up to 800,000N.m |
