Taper Lock Hub and Adaptor Locking Assembly

Hangzhou Donghua Power Transmission Imp. & Exp. Co., Ltd.
  • Standard Or Nonstandard：Standard
  • Application：Motor, Motorcycle, Machinery, Agricultural Machinery
  • Hardness：Soft Tooth Surface
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Spur Gear
  • Material：Cast Steel

Base Info

  • Model NO.：PM; KM
  • Type：Circular Gear
  • Shaft Diameter：From 20 to 1000mm
  • Pm Series：1008 1210 1610 2517 3030 3535 4040
  • Km Series：1008 1210 1610 2517 3030 3535 4040
  • Transport Package：Export Package
  • Specification：DIN, ANSI, GB, KANA, JIS
  • Trademark：DONGHUA
  • Origin：China
  • HS Code：84839000
  • Production Capacity：3000PCS,Month

Description

Basic Info.

Model NO. PM; KM Type Circular Gear Shaft Diameter From 20 to 1000mm Pm Series 1008 1210 1610 2517 3030 3535 4040 Km Series 1008 1210 1610 2517 3030 3535 4040 Transport Package Export Package Specification DIN, ANSI, GB, KANA, JIS Trademark DONGHUA Origin China HS Code 84839000 Production Capacity 3000PCS/Month

Product Description

DONGHUA Chain Group is the most professional manufacturer of power transmission in China, manufacturing roller chains, industry sprockets, motorcycle sprockets, casting sprockets, different type of couplings, pulleys, taper bushes, locking devices, gears, shafts, CNC precision parts and so on.

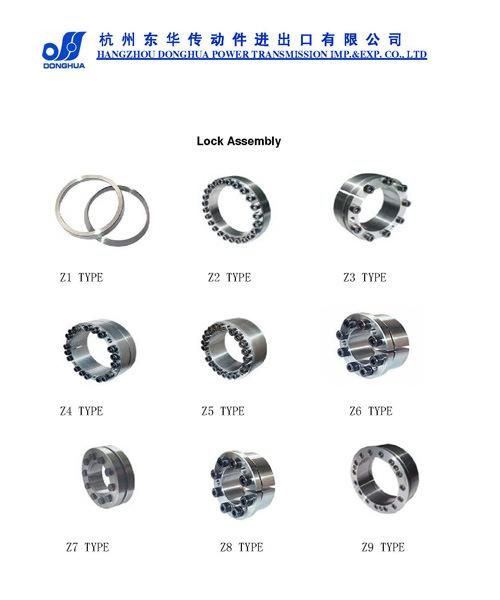

Cone clamping unit consists of four PCS with two inside double-cone rings joined through a set of tightening screws.
It is recommended for medium torgues and although it is not self-centering, it can be easily assembled and disassembled.
Available for shaft diameters from 20 to 1000mm.

Taper Lock Hub and Adaptor Locking AssemblyTaper Lock Hub and Adaptor Locking Assembly
Hub TypeABKey Section
1008PM2245-
1008KM22455 x 5
1210PM2560-
1210KM25606 x 6
1610PM2570-
1610KM257010 x 8
2517PM45105-
2517KM4510516 x 10
3030PM76130-
3030KM7613020 x 12
3535PM90160-
3535KM9016022 x 12
4040PM102185-
4040KM10218524 x 12
