• Model NO.：32-8M-30
• Teeth Quantity：32
• Bush Size：1615
• Pitch：8mm
• Wide of Belt：30mm
• Transport Package：Export Package
• Specification：DIN, ANSI
• Trademark：DONGHUA
• Origin：China
• HS Code：84839000
• Production Capacity：50000

Basic Info.

Model NO. 32-8M-30 Teeth Quantity 32 Bush Size 1615 Pitch 8mm Wide of Belt 30mm Transport Package Export Package Specification DIN, ANSI Trademark DONGHUA Origin China HS Code 84839000 Production Capacity 50000

Product Description

DONGHUA Chain Group is the most professional manufacturer of power transmission in China, manufacturing roller chains, industry sprockets, motorcycle sprockets, casting sprockets, different type of couplings, pulleys, taper bushes, locking devices, gears, shafts, CNC precision parts and so on. We have passed ISO9001, ISO14001, TS16949 such quality and enviroment certification.



PRODUCT DESCRIPITION

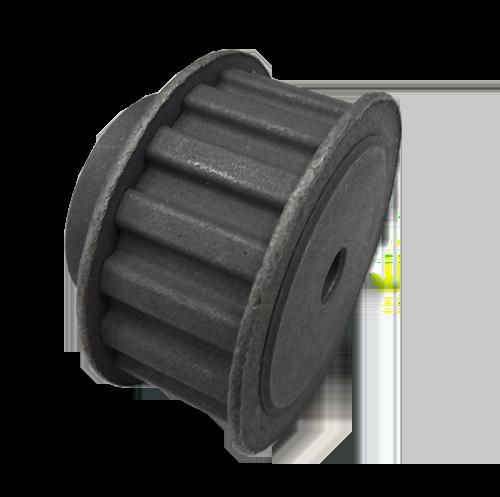

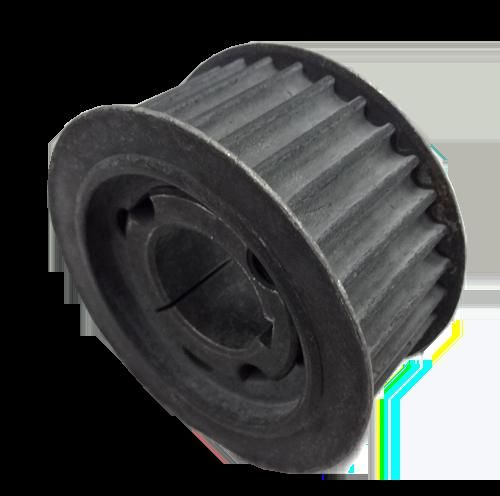

DIN Standard Taper Bore Timing Belt Pulley 8M-30
We can offer high qualitty timing-belt pulleys
Standard pulley with single groove
Casting iron
Together with timing belts
Different material: Aluminium etc.
Teeth Quantity: 22 24 26 28 30 32 34 36 38 40 44 48 56 64 72 80 90 112 144
Wide of Belt: 30mm
Pitch: 8mm

Product Descripition	Number of Teeth	Type	Bush Size	Material	Dp	De	Df	Dm	Di	F	S	R	Weight kg
22-8M-30	22	5FB	1008	Cast Iron	56.02	54.65	60.00	-	41	28	22	6	0.24
24-8M-30	24	6FB	1108	Cast Iron	61.12	59.75	66.00	-	42	38	22	16	0.38
26-8M-30	26	7FB	1108	Cast Iron	66.21	64.84	71.00	-	46	38	22	16	0.45
28-8M-30	28	8FB	1108	Cast Iron	71.30	70.08	75.00	-	50	38	25	13	0.50
30-8M-30	30	1FB	1615	Cast Iron	76.39	75.13	83.00	-	-	38	38	-	0.55
32-8M-30	32	2FB	1615	Cast Iron	81.49	80.16	87.00	-	-	38	38	-	0.59
34-8M-30	34	3FB	1615	Cast Iron	86.58	85.22	91.00	-	-	38	38	-	0.77
36-8M-30	36	4FB	1615	Cast Iron	91.67	90.30	98.50	-	-	38	38	-	0.96
38-8M-30	38	5FB	1615	Cast Iron	96.77	95.39	103.00	-	-	38	38	-	1.15
40-8M-30	40	6FB	1615	Cast Iron	101.86	100.49	106.00	-	-	38	38	-	1.34
44-8M-30	44	4FB	2012	Cast Iron	112.05	110.67	119.00	-	91	38	32	3	1.33
48-8M-30	48	5FB	2012	Cast Iron	122.23	120.86	127.00	-	95	38	32	3	1.78
56-8M-30	56	6FB	2012	Cast Iron	142.60	141.23	148.00	-	117	38	32	3	3.76
64-8M-30	64	8FB	2517	Cast Iron	162.97	161.60	168.00	125	-	38	45	7	4.20
72-8M-30	72	8FW	2517	Cast Iron	183.35	181.97	192.00	125	158	38	45	7	4.30
80-8M-30	80	8W	2517	Cast Iron	203.72	202.35	-	125	180	38	45	7	4.60
90-8M-30	90	8A	2517	Cast Iron	229.18	227.81	-	125	204	38	45	7	5.00
112-8M-30	112	8A	2517	Cast Iron	285.21	283.83		125	260	38	45	7	6.20
144-8M-30	144	8A	2517	Cast Iron	366.69	365.32		125	341	38	45	7	9.00
