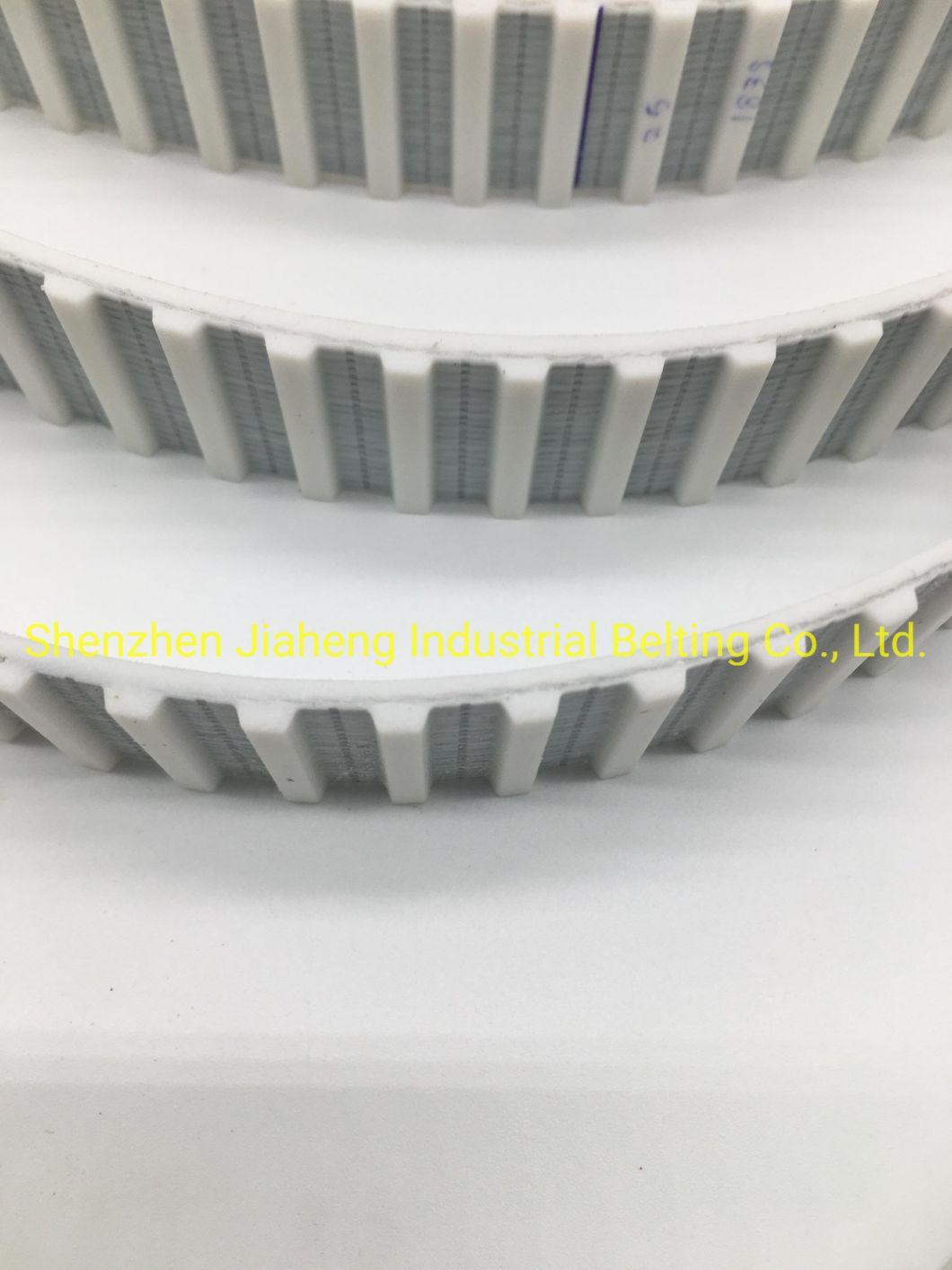

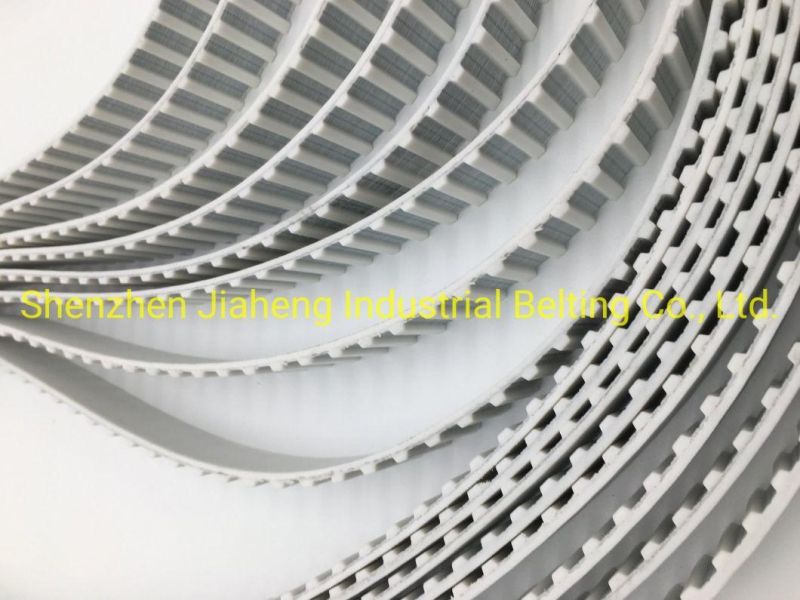

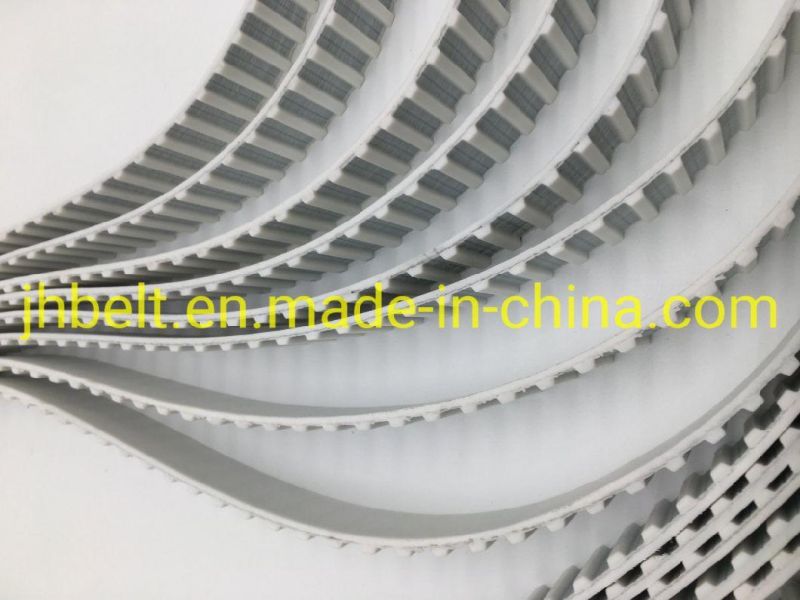

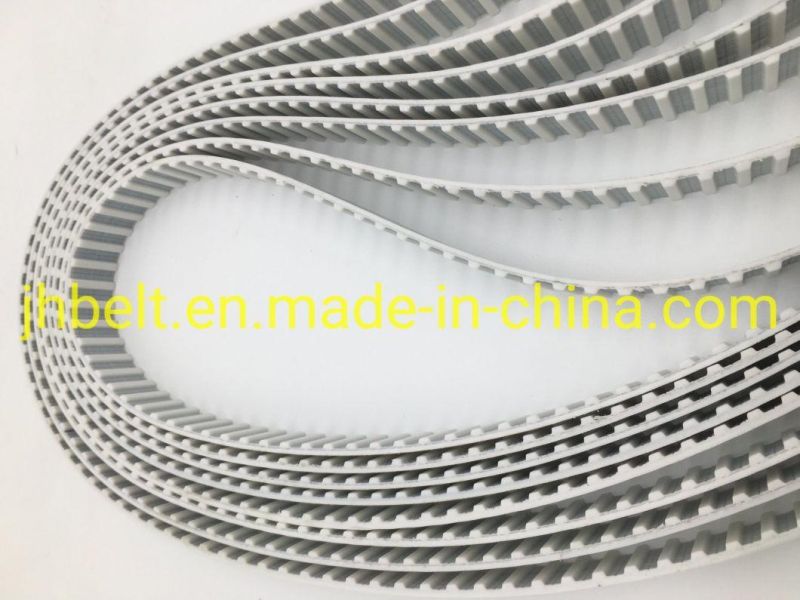

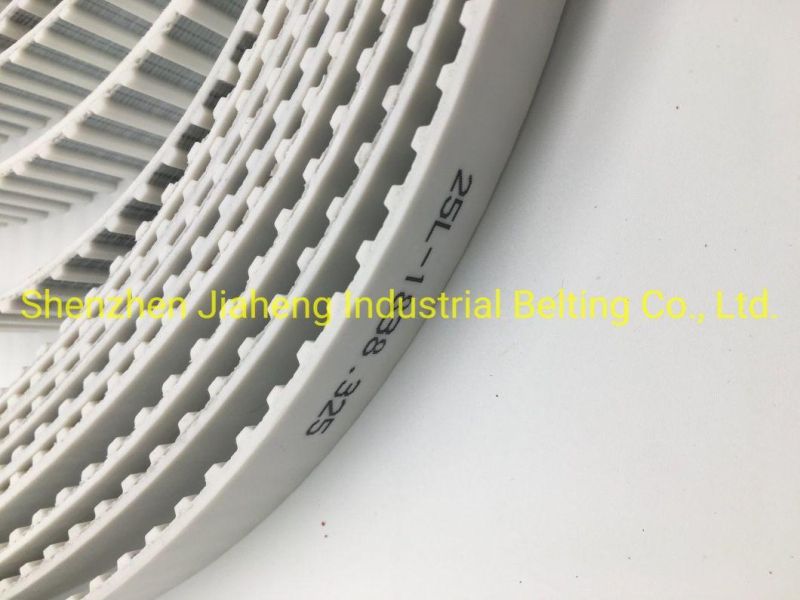

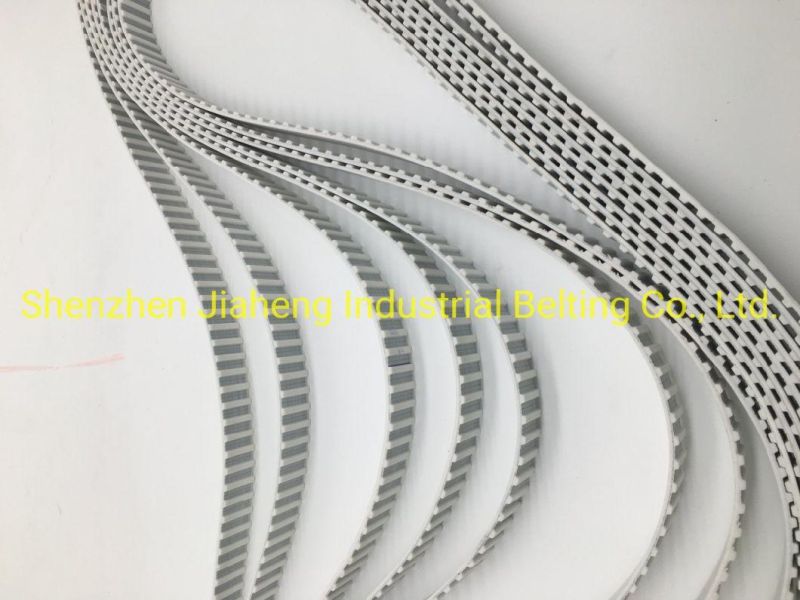

Toothed Belt Truly Endless TPU 1838.3L- 25mm Steel Cord
Shenzhen Jiaheng Industrial Belting Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Toothed Belt
Base Info
- Model NO.：1838.3L- 25mm
- Pitch：9.525 mm
- Color：Black
- Cord：Steel
- Max Width：150mm
- Transport Package：Export Standard
- Specification：L
- Trademark：UNI Belting
- Origin：Shanghai China
- HS Code：4010390000
- Production Capacity：20000000 Meters
Description

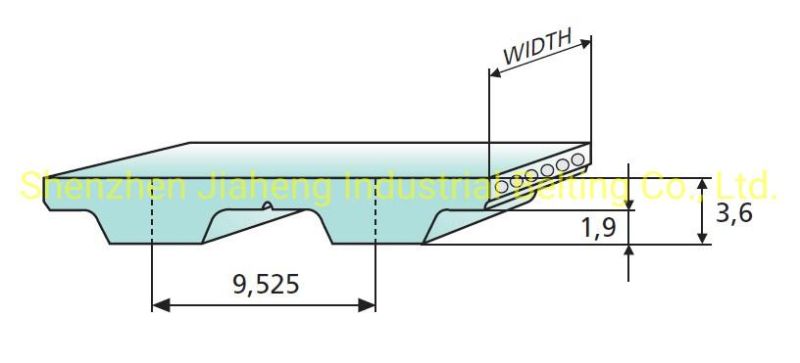

Model: L
- Pitch:9.525 mm
- Cord:Steel, Kevlar
- Max production width:150mm
- Power transmission: ≤ 30Kw
- Rotational speed: approx.10000RPM
- Peripheral speed: approx.60MS-1
- Timing pulleys:from teeth= 10
Mechanical Features
- Consistent dimensional stability
- Low pre-tension
- Low noise
- High abrasion resistance
- Low maintenance
- High flexibility
- The max linear velocity can reaches 80m/second
Typical applications:
- Food processing
- Office automation equipments
- Swimming pool cleaning robots
- Automatic sliding doors and garage opening system
- Automated handling devices
- Linear drivers
- Positioning system
- Electric appliance I
- Textile Industry
- Wood Machine Industry
- Stone and marble Industry
- Paper and Printing
- DIY equpiments
- Chemist and pharmaceutical industry
- Robotic arms
We are a leading manufacturer of innovative thermoplastic polyurethane power transmission. All polyurethane belts are made out of abrasion-resistant polyurethane that provides thermoplastic flexibility, and long-lasting, energy efficient belt system solutions for even the most demanding industries and applications.
Uni belting has always been on the edge of innovation, making it a global leader in high-end, high-precision and high quality products, while at the same time ensuring a smooth operation on the machines.
Models supplying:
Type
Pitch Pb(mm)
Tooth height ht(mm)
Belt thickness hs(mm)
XL
5.080
1.27
2.30
L
9.525
1.91
3.60
H
12.70
2.29
4.30
3M
3
1.17
2.4
5M
5
2.06
3.8
8M
8
3.36
6.00
T5
5
1.20
2.20
T10
10
2.50
4.50
AT5
5
1.20
2.70
AT10
10
2.50
5.00
