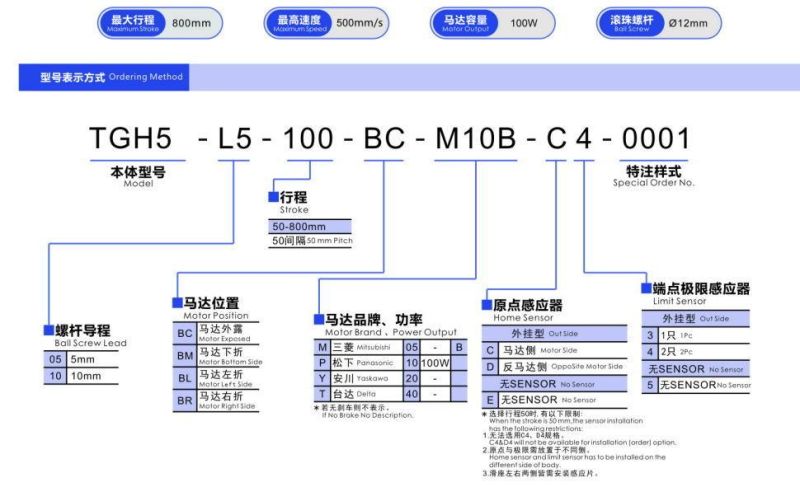

• Model NO.：TGH8-L10-150-BC-P20-E5
• Sealed Structure：Yes
• Accuracy：+,- 0.01mm
• Transport Package：Carton Box or Wooden Case
• Specification：Standard product, customized also accepted
• Trademark：TOCO
• Origin：China
• HS Code：8487900000
• Production Capacity：5000 Sets,Month

Lead10 mmStroke150 mmRepeatability Accuracye+/- 0.01 mmSize428 x 82 x 78Inventry qty1 pcsHS-CODE8487900000Items packingPlastic bag+Cartons Or Wooden Packing Payment termsT/T, Western UnionProduction lead timedelivered from stock in within 3 daysKeywordSingle axiseApplication1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.Operation
1. The operation conditions need to be within the rated values as shown in the technical information.

2. Avoid dust, debris, and any foreign objects from entering the ball return system.

3. The operational temperature should be under 80 ºC. In high-temperature environments above 80ºC.

4. If the product can be used in a special environment, such as vacuum, vibration,
clean room, corrosive chemicals, organic solvents, extremely high or low temperatures, humidity, liquid splashes,
oil drops or mist, high salt, heavy load, vertical or cantilever installations. Please Confirm first with TOCO.

5. For vertical installations, when loaded, there is a possibility that the slider may fall. We recommend adding
proper braking and ensure functionality before the operation.

Maintenance
1. Lubricate the product before the initial use. Note the type of grease used and avoid mixing different types together.

2. For normal operating conditions, it is recommended to check the operation every 100km, clean and supply grease onto the rail and shaft.

Catalogs





Package & Shipping
1.Package: Carton or wooden case.
2.Delivery time: 15 days after receiving payment.
3.Shipping: by express (DHL, TNT, FedEx, etc.) or by sea.

TOCO Profile






Exhibition



Taiwan brand registered trademark, High-Tech Enterprise, letter patents, and ISO.
