Udl Stepless Speed Variator

Zhejiang Tuosu Motor Manufacturing Co., Ltd.
  • Application：Motor, Machinery, Agricultural Machinery
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Layout：Bevel
  • Step：Double-Step
  • Type：Bevel

Base Info

  • Model NO.：UDL GEARBOX
  • Motor Power：0.18kw-160kw
  • Voltage：380V ( Also Done as Your Need)
  • Frequency：50,60Hz
  • Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
  • Color：Done as Your Need (Common Blue)
  • Gearbox Body：Cast Iron
  • Surface Hardness of Gear：HRC58°-62°
  • Protection Grade：IP55
  • Gear：20crmnti
  • Housing Hardness：Hbs90-240
  • Transport Package：Carton ,Plywood Case,Wooden
  • Trademark：GPHQ
  • Origin：China
  • HS Code：84834090
  • Production Capacity：200000,Year

Description

Technical dataGear unit reduction ratio[i]1.4 to 7.0Output torque[Nm]≤118Motor power range[kW]0.18 to 7.5


> Main Characteristics

The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad. The products include the following main characteristics:
     1. High speed-regulating precision: up to 0.5-1 rotation.
     2. Large speed -changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
     3. High in strength and long in service life.
     4. Convenient to regulate the speed.
     5. Continuous in running, front-to-back in running direction, smooth in driving, stable in performance and low in noise.
     6. Full in sealing and suitable for any environment.
     7. Compact in structure and small in volume.
     8. Made of high-quality aluminum alloy die cast into forming, good-looking in appearance, light in weight and it never gets rusty.
     9. Good in adaptation: UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.




> Motor Catalogue

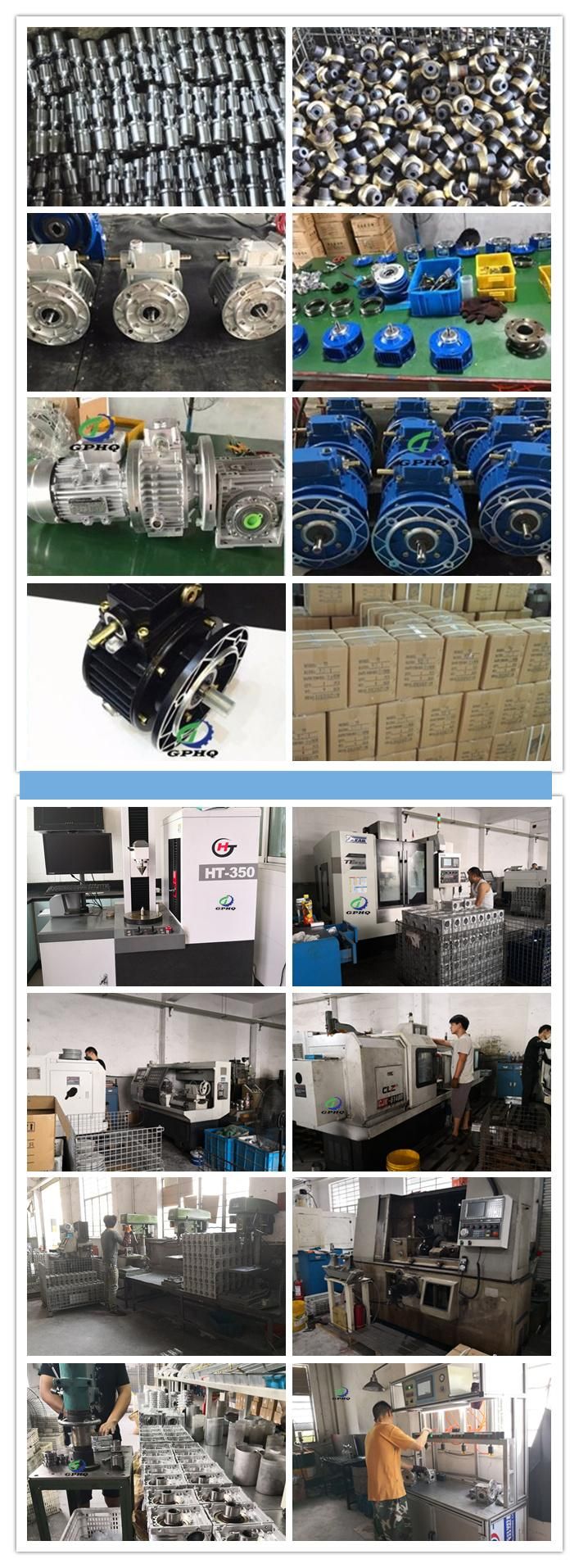

> Producing Process
Udl Stepless Speed Variator





> About Us

Udl Stepless Speed Variator

TAIZHOU EXTENSION SPEED ELECTRICITY CO.,LTD (WENLING GOOD COMMERCE & TRADE CO.LTD) specializes in the sales of all kinds of gearbox , electric motors. On the sales service and management has accumulated rich experience, has a number of highly qualified technical personnel, management norms, quality isstable. Products by the China national mandatory product certification, quality is reliable, reasonable structure,and make "environmental protection" and "energy saving" synchronization.

WENLING GOOD COMMERCE & TRADE CO.,LTD(GPHQ ) has always been in line with: "based on sincerity, good quality for first, the pursuit of excellence, pioneering and enterprising team, efficient, innovation" . perfect aftersales service; We will set up  a business under the bridge of friendship, hand in hand Create brilliant!

FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better.
