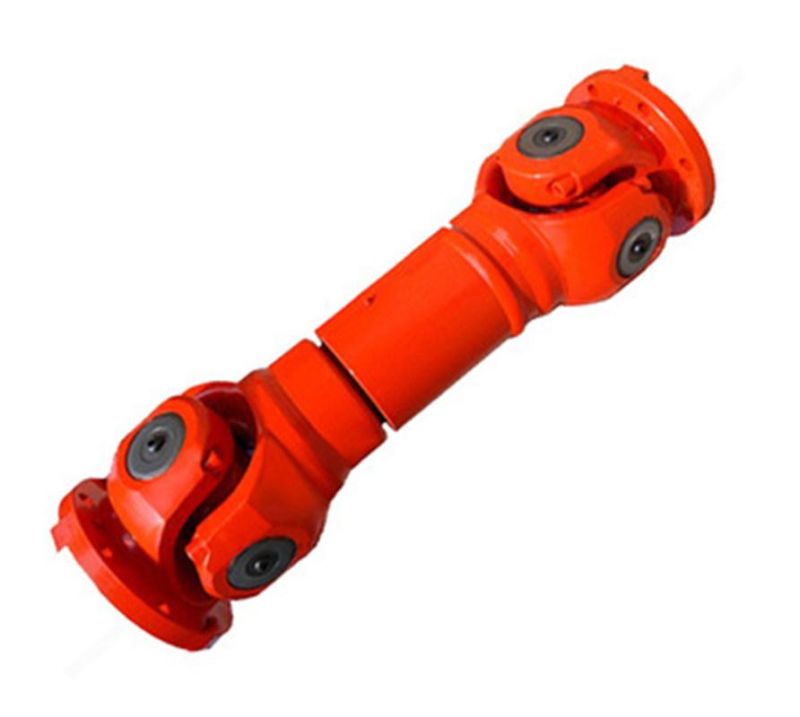

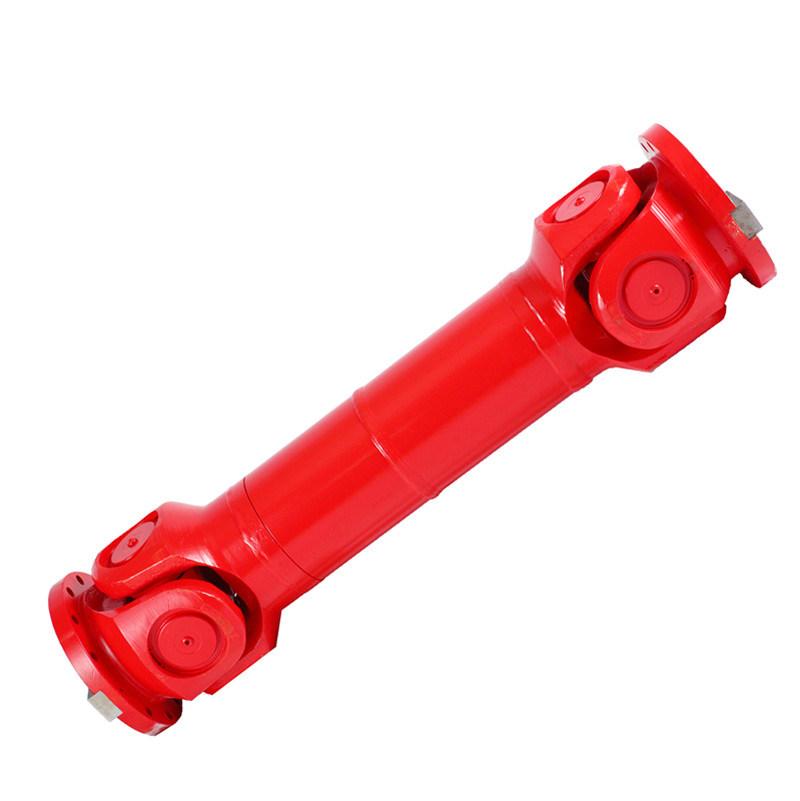

Ws, Wsd Type Cardan Shaft
Jingjiang Huading Machinery Manufacturing Co., Ltd.- Shaft Hole：19-32
- Torque：70-80N.M
Base Info
- Model NO.：WS, WSD type
- Bore Diameter：14mm
- Speed：6000r,M
- Structure：Rigid
- Material：Cast Iron
- Type：Rigid Coupling
- Transport Package：Wooden Case
- Specification：as your requirement
- Trademark：Huading
- Origin：Jingjiang, Jiangsu Province
- HS Code：8483600
- Production Capacity：10000pieces,Year
- Package size per unit product：260.00cm * 355.00cm * 300.00cm
- Gross weight per unit product：55.000kg
Description
Rotary inertia
kg·mWSD type WS type WS1
WSD1 11.2 10 16 22 30 60 80 20 0.05 0.07 WS2
WSD2 22.4 12 20 22 32 64 90 26 0.09 0.15 WS3
WSD3 45 14 25 27 40 80 112 32 0.15 0.22 WS4
WSD4 71 18 32 30 46 92 130 38 0.32 0.49 WS5
WSD5 140 22 40 38 58 116 164 48 0.59 0.91 WS6
WSD6 280 28 50 44 69 138 196 58 1.03 1.64 WS7
WSD7 560 35 60 60 91 182 252 70 2.31 3.38 WS8
WSD8 1120 42 75 84 122 244 336 92 4.41 6.63
Note:1.The mass and rotary inertia of the coupling is approximation.
2.When the axis angle(β)≠0,the coupling allowable torque(T)=Tncosβ.
3.The dimension of intermediate shaft(L1) shall be determined as required.
kg·m
WSD1
WSD2
WSD3
WSD4
WSD5
WSD6
WSD7
WSD8
Note:1.The mass and rotary inertia of the coupling is approximation.
2.When the axis angle(β)≠0,the coupling allowable torque(T)=Tncosβ.
3.The dimension of intermediate shaft(L1) shall be determined as required.
