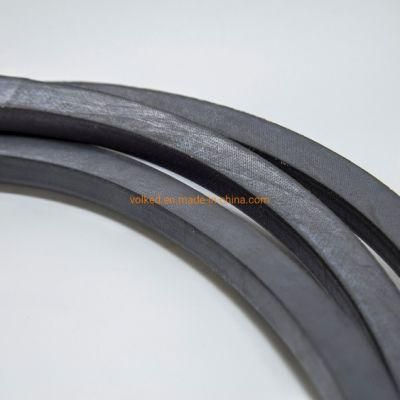

a B C D E Z Transmission Belt SPA Spb Spc Spz 3V 5V 8V 9j 15j 25j Belts Wrapped V Belt

Jiangxi VOLKED Import & Export Co., Ltd.
  • Application：Textile Machinery, Conveyer Equipment, Food Machinery, Agricultural Machinery
  • Feature：Anti-Static, Oil-Resistant, Cold-Resistant, Heat-Resistant, Wear-Resistant, High Temperature-Resistance

Base Info

  • Model NO.：A B C D E Z
  • Tensile Strength：Strong
  • Material：Rubber
  • Type：V Belt
  • Quality：Cr,EPDM
  • Printing：Brand Customized
  • MOQ：100PCS
  • Delivery Time：15-30 Days
  • Transport Package：Packing Card+Carton
  • Specification：AVX10X1035
  • Trademark：VOLKED
  • Origin：China
  • HS Code：40103900
  • Production Capacity：500000
  • Package size per unit product：55.00cm * 38.00cm * 26.00cm
  • Gross weight per unit product：1.000kg

Description

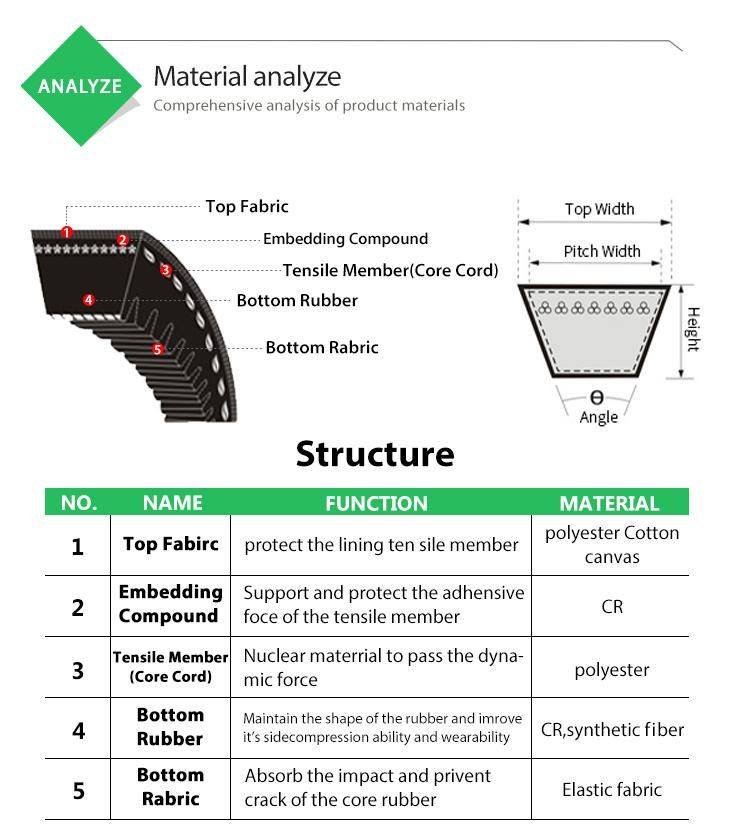

StructureNo.NameFunctionMaterial1Top FabricProtect the lining tensile memberPolyester Cotton Canvas2Core CordNuclear material to pass the dynamic forcePolyester3Bottom RubberSide compression resistant and sectionCR,EPDM4Bottom FabricAbsorb the impact and prevent crack of the core rubberElastic FabricSection Size of lndustrial Raw Edge V BeltsTypeTop width (mm)Belt Thickness (mm)Angle(°)HM10.58.038AX138.038BX171138CX221438DX321938EX382338 Section Size of Raw Edge Narrow BeltsTypeTop widthBelt ThicknessAngleXPZ9.78.040XPA12.71040XPB16.31340XPC2218409NX9.584015NX1613.54025NX25.42340 Section Size of Raw Edge V Belts for AutomobileTypeTop widthWrapped V beltRaw edge V beltREFRECAngleAV-10/9.510.08.07.57.58.040AV-13/12.513.010.08.58.59.040AV-1515.09.0---40AV-1716.510.59.59.511.040AV-2222.014.0--13.040
