• Model NO.：NMRV025-150
• Type：Worm Gear Box
• Power：0.06-15kw
• Rated Speed：15-400rpm
• Voltage：12V 24V 48V 110V 220V
• Rated Torque：2.6-2670nm
• Transport Package：Plastic Bag and Carton Packing
• Specification：CE
• Trademark：GS
• Origin：China
• HS Code：84839000
• Production Capacity：30000

Basic Info.

Model NO. NMRV025-150 Type Worm Gear Box Power 0.06-15kw Rated Speed 15-400rpm Voltage 12V 24V 48V 110V 220V Rated Torque 2.6-2670nm Transport Package Plastic Bag and Carton Packing Specification CE Trademark GS Origin China HS Code 84839000 Production Capacity 30000

Product Description

Nmrv 12V 24V 48V High Torque Worm Gearbox With DC Motor

Introduction

1.     Made of high-quality aluminum alloy, light in weight and non-rusting

2.     Smooth in running and low in noise, can work long time in dreadful conditions

3.     High in radiating efficiency

4.     Good-looking in appearance, durable in service life and small in volume

5.     Suitable for omni-bearing installation

 Main Materials

1.     Housing: Die-cast aluminum alloy(frame size 025-090); cast iron(frame size 110-150 )

2.     Worm shaft: 20CrMnTi, carbonize heat treatment make the hardness of gear's surface up to 56-62 HRC. Retain carburization layer's thickness between 0.3 and 0.5mm after precise grindin g

3.     Worm wheel: wearable tin bronze alloy

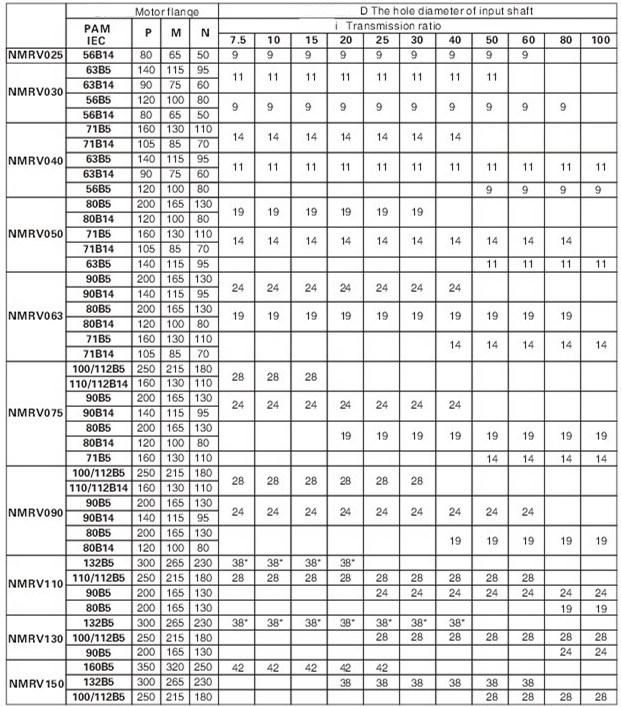

Model



View Of Item

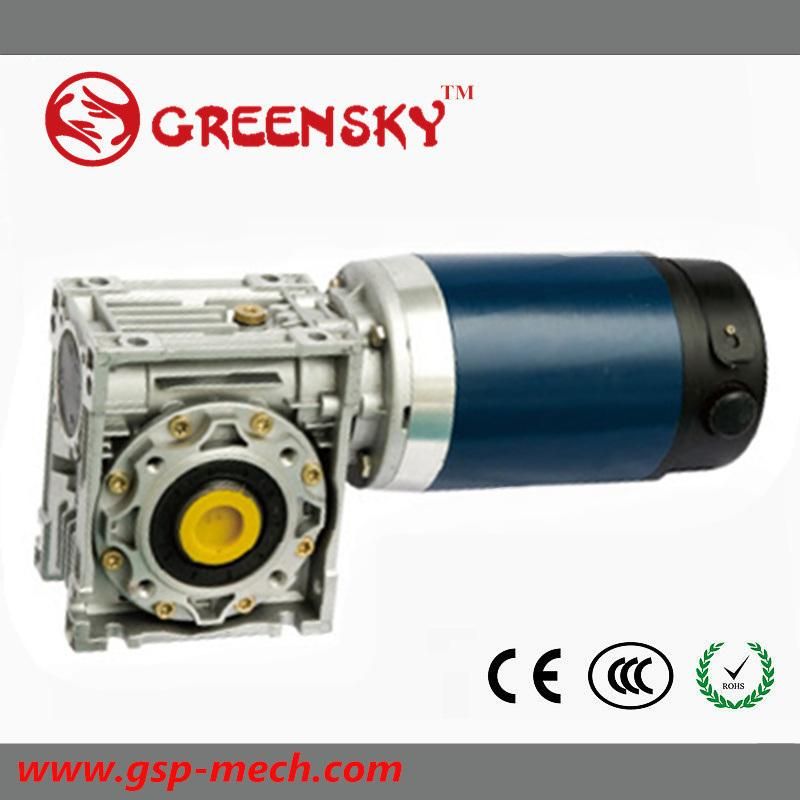

NMRV worm gearbox with DC motor

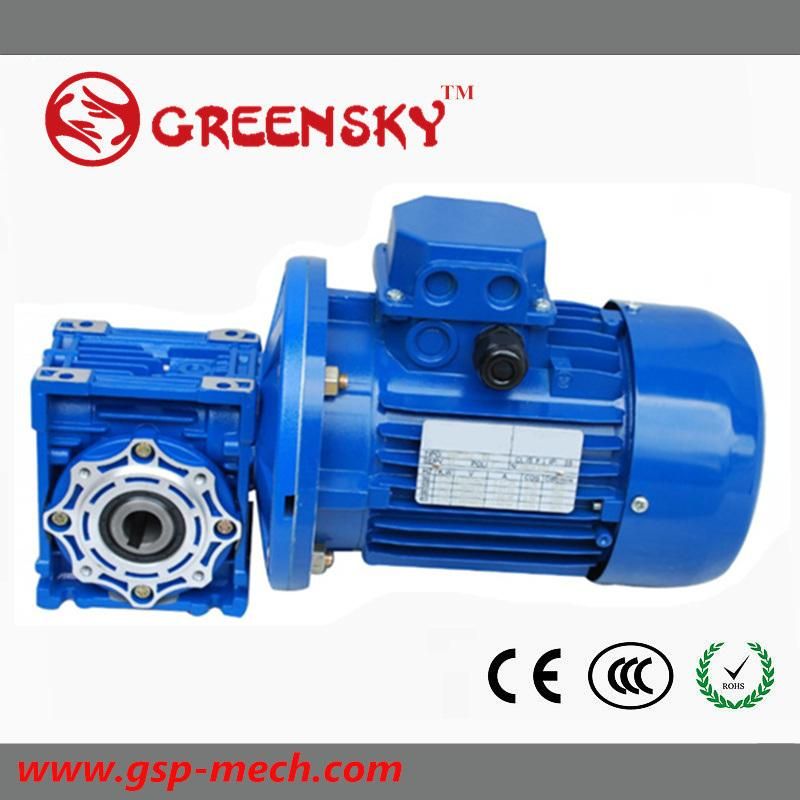

NMRV worm gearbox with AC motor

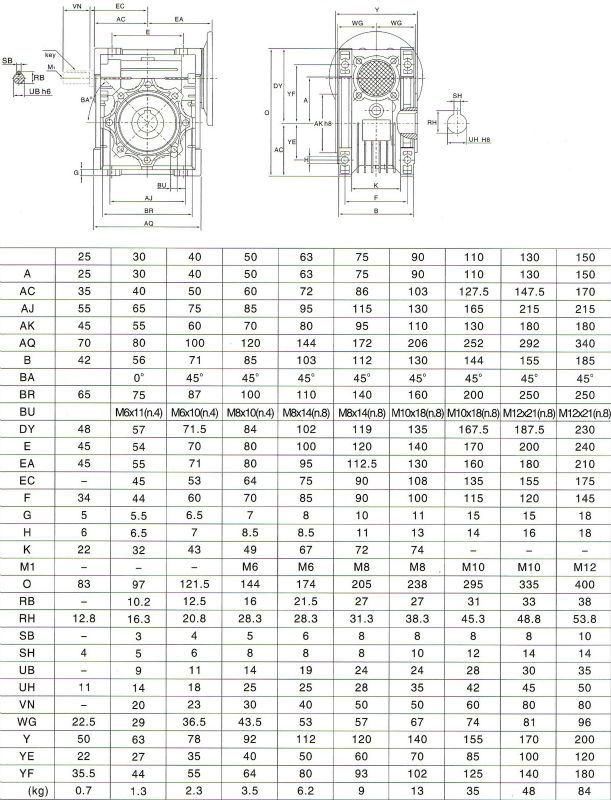

Mounting Dimension

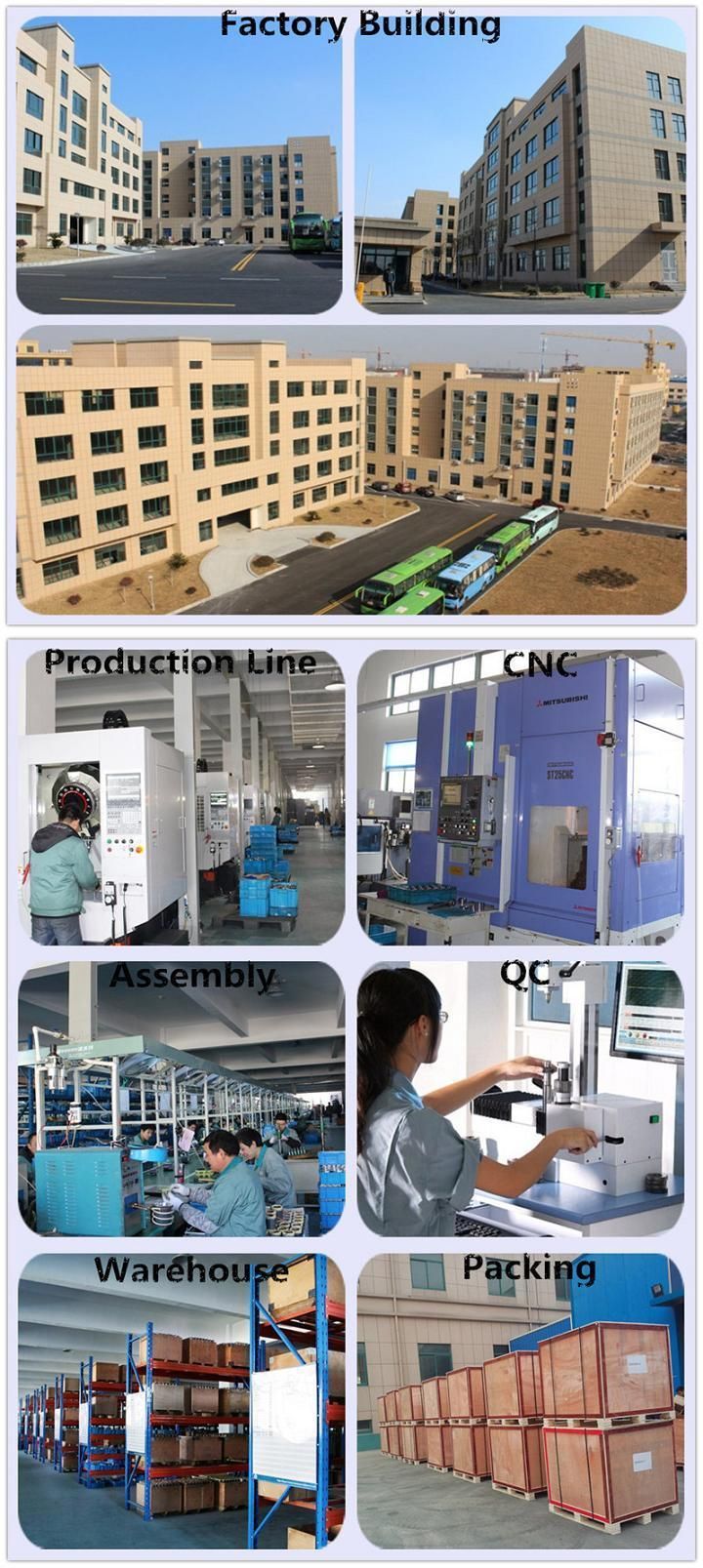

COMPANY OVERVIEW

About Greensky Power

• History: Greensky Power Co.,ltd was founded in Los Angeles in 2008 and has focused on manufacturing and supplying the mechanical drive products for 8 years since 2008.
• Market: Greensky Power has customers in 30 different countries. Germany, Austria, Japan, USA and Middle-East are our main market.
• Honors:Greensky Power is member of a council in Zhejiang Solar Association which is the biggest renewable energy association in Southeast of China.



On the site you can find a range of renewable products including worm gear motor, DC gear motor,AC Induction Motor,  and their relevant components.



FAQ

1 Q:What infomation should I tell you to confirm the worm gearbox?

A: Model/Size   B:Ratio and output torque   C:Power and flange type   D:Order quantity.

2 Q: What if I don't know which worm gearbox need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.

4 Q:What is your warrenty period for worm gearbox?

A:We offer one year warrenty since the vessel departure date left China.



5 Q:What industries are your worm gearbox being used?

A:Our worm gearbox are widely used in the areas of household appliances and light industry,etc.


6.  Q:How to delivery:

 A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

     By air - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)

     Others - We arrange to delivery goods to some place in China appointed by buyers.

 7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.



If you have any other questions, please feel free to contact us.
