• Model NO.：XW120W
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Bevel Wheel
• Transport Package：Plywood Case
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. XW120W Manufacturing Method Cast Gear Toothed Portion Shape Bevel Wheel Transport Package Plywood Case Trademark SGR Origin China HS Code 8483409000 Production Capacity 5000PCS/Month

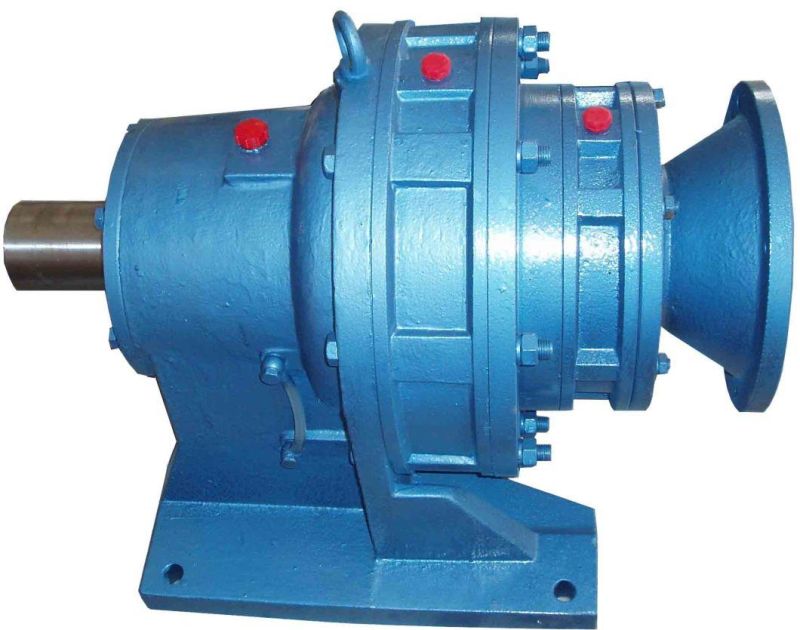

Product Description

Technical data:
1. Frame: Single stage 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
Double stage 31, 42, 53, 63, 74, 85, 95, 106, 116, 117
2. Ratio range: Single stage 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
Double stage121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
3. Input power: 0.12-55 KW
4. Permit torque rang: 70-20000 N. M
5. Structure: Foot-mounted& flange-mounted

Characteristic:
Several teeth drive, high strength and high credibility
The material of main parts is bearing steel
Little inertia adapts reducer for forward and reverse operation
Low noise high efficiency, single stage efficiency are more than 92%
Input and output shaft in the same axis, small volume
