• Model NO.：CUW160
• Type：Worm and Wormwheel
• Material：Cast Iron
• Manipulate Way：Semi-Automatic Manipulation
• Manufacturing Method：Rolling Gear
• Toothed Portion Shape：Curved Gear
• Changes Way：Mixed
• Warranty：One Year
• Delivery：60days
• Transport Package：PLYWOOD CASE
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：CHINA
• HS Code：8483409000
• Production Capacity：500PCS,MONTH

Basic Info.

Model NO. CUW160 Type Worm and Wormwheel Material Cast Iron Manipulate Way Semi-Automatic Manipulation Manufacturing Method Rolling Gear Toothed Portion Shape Curved Gear Changes Way Mixed Warranty One Year Delivery 60days Transport Package PLYWOOD CASE Specification ISO9001: 2008 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 500PCS/MONTH

Product Description

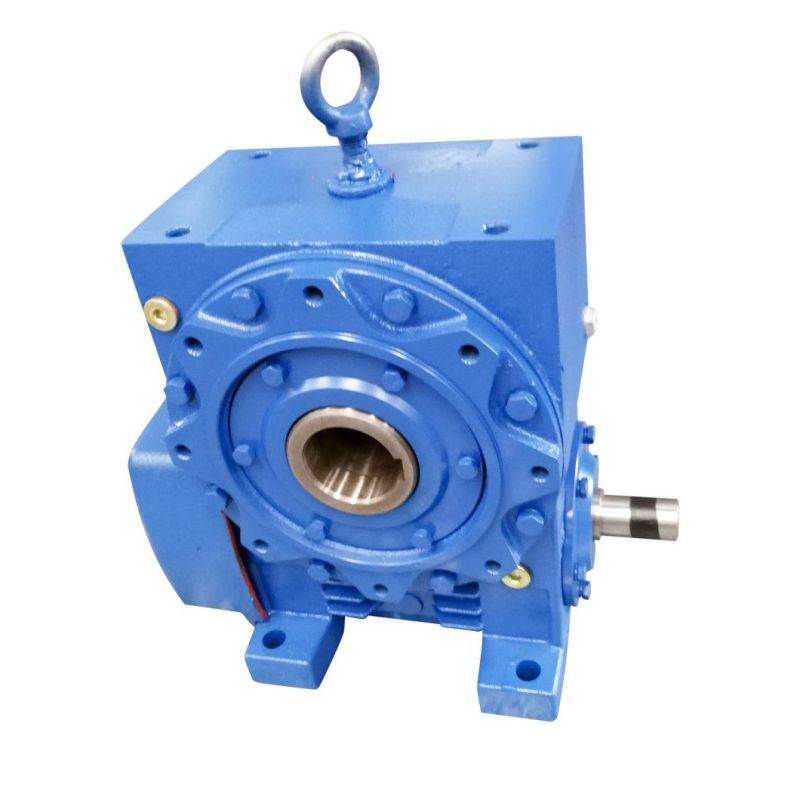

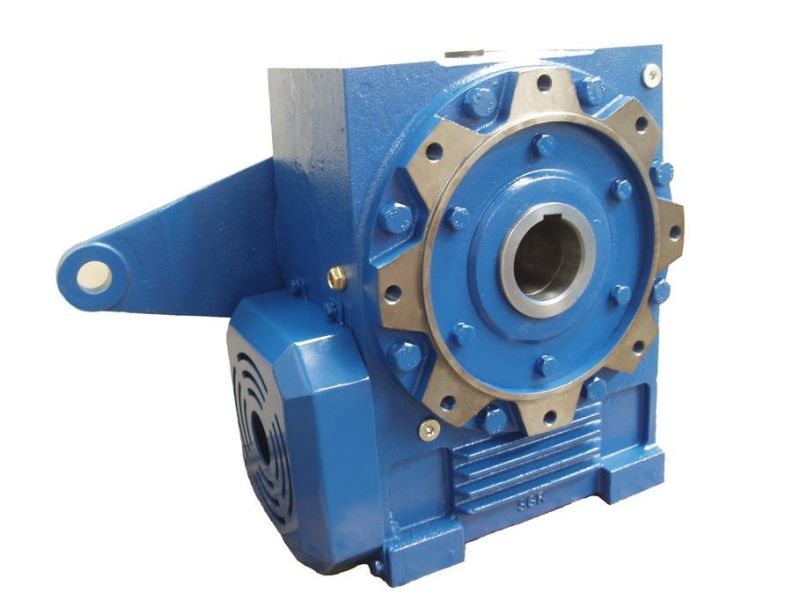

CUW Cone Worm Gear Reducer with Foot Mounted

Technical data:
1. Ratio range: 10-63
2. Input power: 1.5-450KW
3. Permit torque rang: ≤40000N. M
4. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Selling point of double enveloping worm gearbox :
1, High torque double enveloping worm gear adjust toughest working condition .
2,Universal design double enveloping worm gearbox.
3, Smooth and noiseless operation double worm gearbox.
4, Higher driving efficiency than traditional worm gear.
5, Increasing loading capacity .
6, Strict quality test before shipping
7, Customized design for various application
8, Long life service period
9,suitable price with moderated
10, moderate price & high quality

--------------------------------------------------------------------------------------------
As one of  famous double enveloping worm gear manufacturers,SGR's double throated worm gear has advantage of High efficiency, low noise, smooth operation , it increase output torque that mean increasing loading capacity , improved gear accuracy, and extended Long life service period . in SGR double enveloping worm gear design ,based on different ratio, it has Multi-tooth meshed, allowed bigger peak load . with the increase of  number of driven gear teeth , that mean in contact with the worm significantly increases output  torque force. except increasing the number of driven gear teeth in contact with the worm,  double enveloping worm gear also increase the contact surface on every gear tooth. The actual gear surface of instantaneous contact between the double throated  and the driven gear tooth are in-lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double enveloping worm gear are configured to increase the  force and decrease the stress on every gear tooth.

In term of  difference of double enveloping worm gear design and  traditional worm gear design ,  double enveloping worm gear design has higher driving efficiency than traditional worm gear ,  High torque double enveloping worm gear adjust toughest working condition , Increasing loading capacity .  Long life service period than traditional worm gear , and customized design for various application  .
