• Model NO.：CLZ type
• Bore Diameter：19mm
• Speed：4000r,M
• Structure：Rigid
• Material：Cast Iron
• Type：Gear Coupling
• Delivery Time：Depend on Your Quantity
• Terms of Shipment：by Sea
• Color：Customer Required
• Transport Package：Wooden Case
• Specification：as your requirement
• Trademark：Huading
• Origin：Jingjiang, Jiangsu Province
• HS Code：8483600
• Production Capacity：100000pieces
• Package size per unit product：260.00cm * 250.00cm * 300.00cm
• Gross weight per unit product：52.000kg

Basic Info.

Model NO. CLZ type Bore Diameter 19mm Speed 4000r/M Structure Rigid Material Cast Iron Type Gear Coupling Delivery Time Depend on Your Quantity Terms of Shipment by Sea Color Customer Required Transport Package Wooden Case Specification as your requirement Trademark Huading Origin Jingjiang, Jiangsu Province HS Code 8483600 Production Capacity 100000pieces

Packaging & Delivery

Package size per unit product 260.00cm * 250.00cm * 300.00cm Gross weight per unit product 52.000kg

Product Description

Elastic Metallurgical CLZ Gear Coupling(JB/ZQ4219-1983)CLZ gear coupling is suitable for connecting two horizontal coaxial transmission shafts. It has the capability of compensating the relative offset of two axes.

The weight and moment of inertia of the coupling are approximate values calculated according to the minimum diameter and maximum length of the shaft hole.

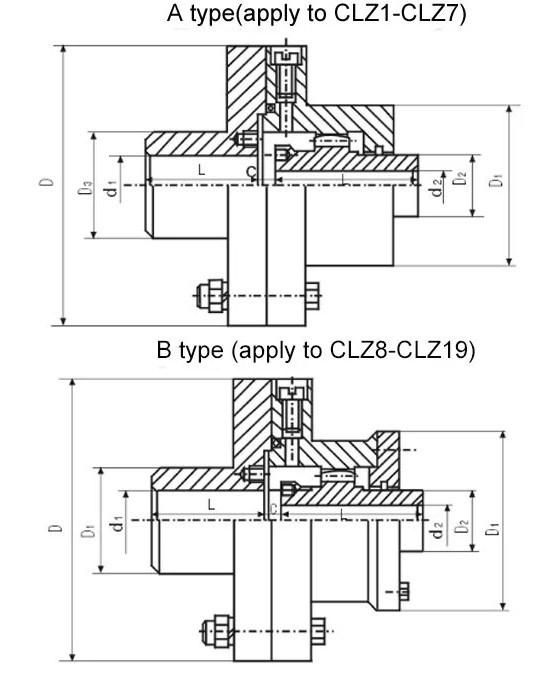

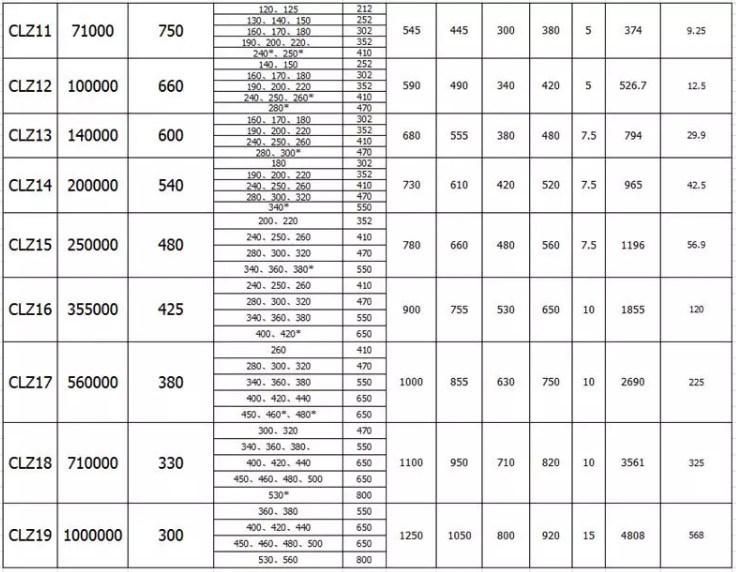

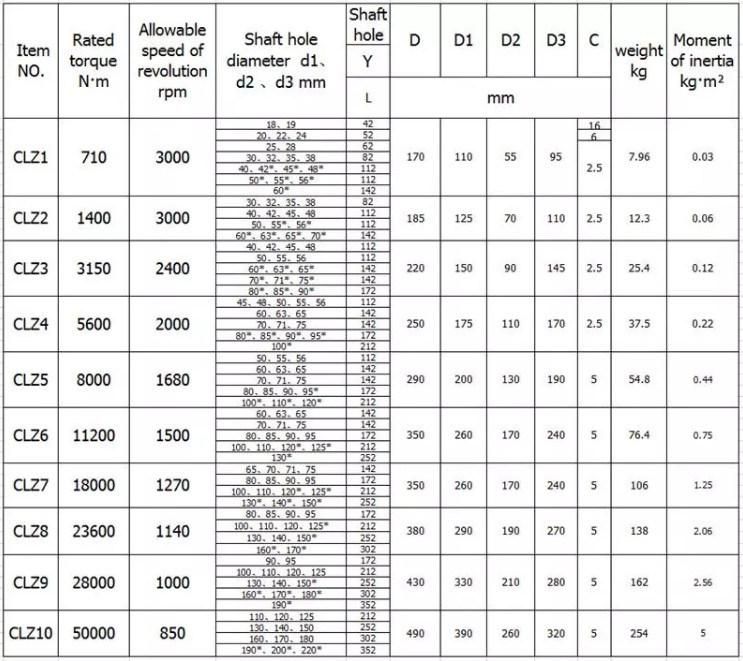

·CLZ Gear Coupling Main Dimension And Parameter(JB/ZQ4219-1986)


Note:
1. The shaft hole dimension with * only to d1.
2. This standard applies only to old products.

·Features
1. Tooth coupling has small radial dimension and large load-carrying capacity. It is often used for shafting transmission under low speed and heavy load conditions. Tooth coupling with high accuracy and dynamic balance can be used for high speed transmission.
2. It has the ability to compensate the deviation of radial, axial and angular equiaxes.
3. It has compact structure, small turning radius, large bearing capacity, high transmission efficiency, low noise and maintenance cycle.

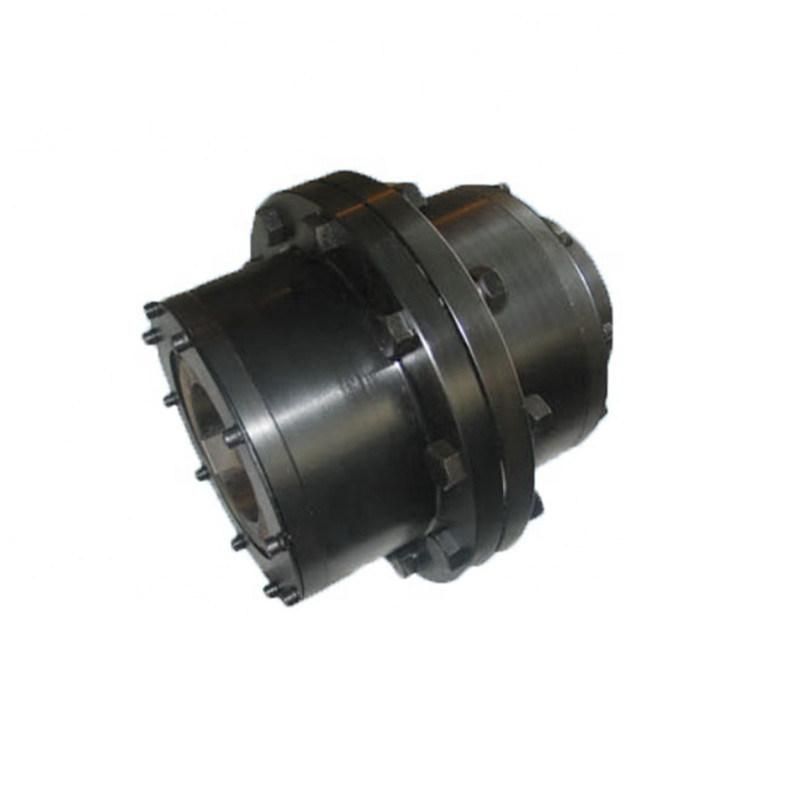

·Product Display




♦Other Products List

Transmission Machinery  Parts Name	Model
Universal Coupling	WS,WSD,WSP
Cardan Shaft	SWC,SWP,SWZ
Tooth Coupling	CL,CLZ,GCLD,GIICL, GICL,NGCL,GGCL,GCLK
Disc Coupling	JMI,JMIJ,JMII,JMIIJ
High Flexible Coupling	LM
Chain Coupling	GL
Jaw Coupling	LT
Grid Coupling	JS

♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.

♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
