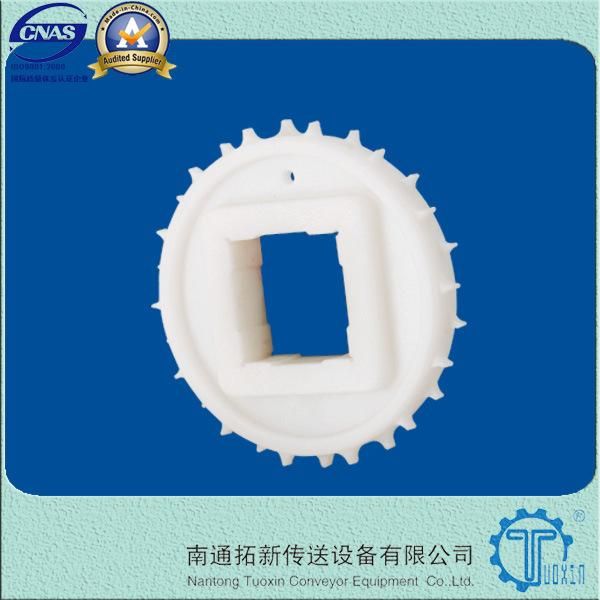

Flush Grid 500 Sprocket Molded Sprockets Injection Sprockets

Nantong Tuoxin Conveyor Equipment Co., Ltd.
  • Application：Conveyors
  • Hardness：Hardened
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Curved Gear
  • Material：Plastic
  • Type：Circular Gear

Base Info

  • Model NO.：1-500-28
  • Teeth：28
  • Bore：40*40,50*50
  • Structure：Belt Conveyor
  • Outside Diameter：113.4mm
  • Pitch Diameter：113.4mm
  • Transport Package：by Cartons
  • Specification：ISO9001: 2000, FDA
  • Trademark：Tuoxin
  • Origin：Jiangsu Nantong
  • HS Code：3926901000
  • Production Capacity：3000 Pieces,Month

Description

   Sprocket type
    Nr of teeth
   Pitch diameter  Outside diameter  Bore   H(mm)  C(mm)  DF(mm)  1-500-28-40*40
 28
  113.4
 113.4  40*40  1-500-28-50*50  50*50 Flush Grid 500 Sprocket Molded Sprockets Injection SprocketsFlush Grid 500 Sprocket Molded Sprockets Injection Sprockets
