• Model NO.：FCL 4040-80
• Material：Cast Iron
• Type：Universal Coupling
• Color：Green or Gray
• Max. Torque：7100n.M
• Parts No.：#8
• Eccentricity：0.3
• End-Play：±3.5
• Transport Package：Wooden Case
• Specification：FCL 4040-80
• Trademark：KASIN
• Origin：China
• HS Code：8483600090
• Production Capacity：25000set,Year

Basic Info.

Model NO. FCL 4040-80 Material Cast Iron Type Universal Coupling Color Green or Gray Max. Torque 7100n.M Parts No. #8 Eccentricity 0.3 End-Play ±3.5 Transport Package Wooden Case Specification FCL 4040-80 Trademark KASIN Origin China HS Code 8483600090 Production Capacity 25000set/Year

Product Description

Product Description

      FCL Coupling/Shaft Coupling /Pin & Bush Coupling /FCL Flexible Coupling/NBK FCL Coupling is widely used for its compacts designing, easy installation, convenient maintenance, small and light weight.
     As long as the relative displacement between shafts is kept within the specified tolerance, couplings will operate the best function and have a longer working life.
     Thus it is greatly demanded in medium and minor power transmission systems driven by motors, such as speed reducers, hoists, compressors, conveyors, spinning and weaving machines and ball mills.

Technical Date

KASIN No.	A	d	L	C1	C2	B	F1	F2	n	a	M	t	PartsNo.	Max. Torque	Max.R.P.M	Eccentricity	Angularity	End-Play
FCL 100	100	11~25	35.5	42.5	42.5	67	16	16	4	10	23	3	#2	29N.m	4000	0.1	1/6°	±2.1
FCL 112	112	13~28	40	50	50	75	16	16	4	10	23	3	#2	33N.m	4000	0.1	1/6°	±2.1
FCL 125	125	13~32	45	56	50	85	18	18	4	14	32	3	#3	73N.m	4000	0.1	1/6°	±2.1
FCL 140	140	13~38	50	71	63	100	18	18	6	14	32	3	#3	130N.m	4000	0.2	1/6°	±2.1
FCL 160	160	15~45	56	80	80	115	18	18	8	14	32	3	#3	200N.m	4000	0.2	1/6°	±2.1
FCL 180	180	15~50	63	90	90	132	18	18	8	14	32	3	#3	230N.m	3500	0.2	1/6°	±2.1
FCL 200	200	21~56	71	100	100	145	22.4	22.4	8	20	41	4	#4	440N.m	3200	0.2	1/6°	±2.8
FCL 224	224	21~63	80	112	112	170	22.4	22.4	8	20	41	4	#4	510N.m	2850	0.2	1/6°	±2.8
FCL 250	250	25~71	90	125	125	180	28	28	8	25	51	4	#5	850N.m	2550	0.2	1/6°	±2.8
FCL 280	280	34~80	100	140	140	200	28	40	8	28	57	4	#6	1500N.m	2300	0.3	1/6°	±2.8
FCL 315	315	41~90	112	160	160	236	28	40	10	28	57	4	#6	2200N.m	2050	0.3	1/6°	±2.8
FCL 355	355	60~100	125	180	180	260	35.5	56	8	35.5	72	5	#8	3500N.m	1800	0.3	1/6°	±3.5
FCL 400	400	60~110	125	200	200	300	35.5	56	10	35.5	72	5	#8	5000N.m	1600	0.3	1/6°	±3.5
FCL 450	450	65~125	140	224	224	355	35.5	56	12	35.5	72	5	#8	7100N.m	1400	0.3	1/6°	±3.5
FCL 560	560	85~140	160	250	250	450	35.5	56	14	35.5	72	5	#8	10000N.m	1150	0.3	1/6°	±3.5
FCL 630	630	95~160	180	280	280	530	35.5	56	18	35.5	72	5	#8	16000N.m	1000	0.3	1/6°	±3.5

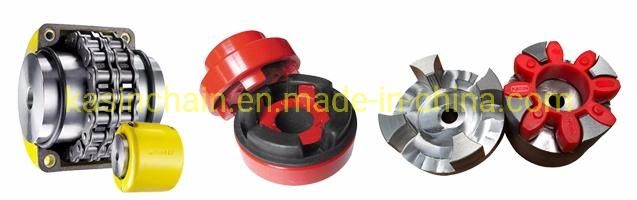

Related Products & Exhibitioin

                       Roller Chain coupling                                              NM Coupling                                                   Curved Jaw Coupling

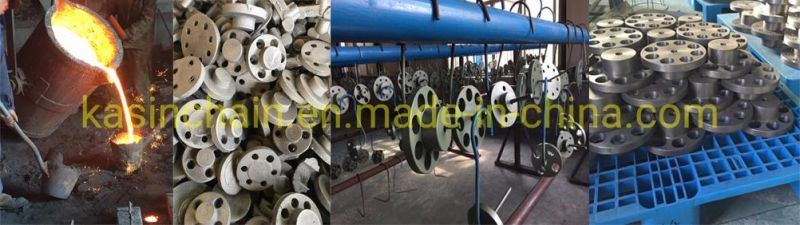

Manufacturing

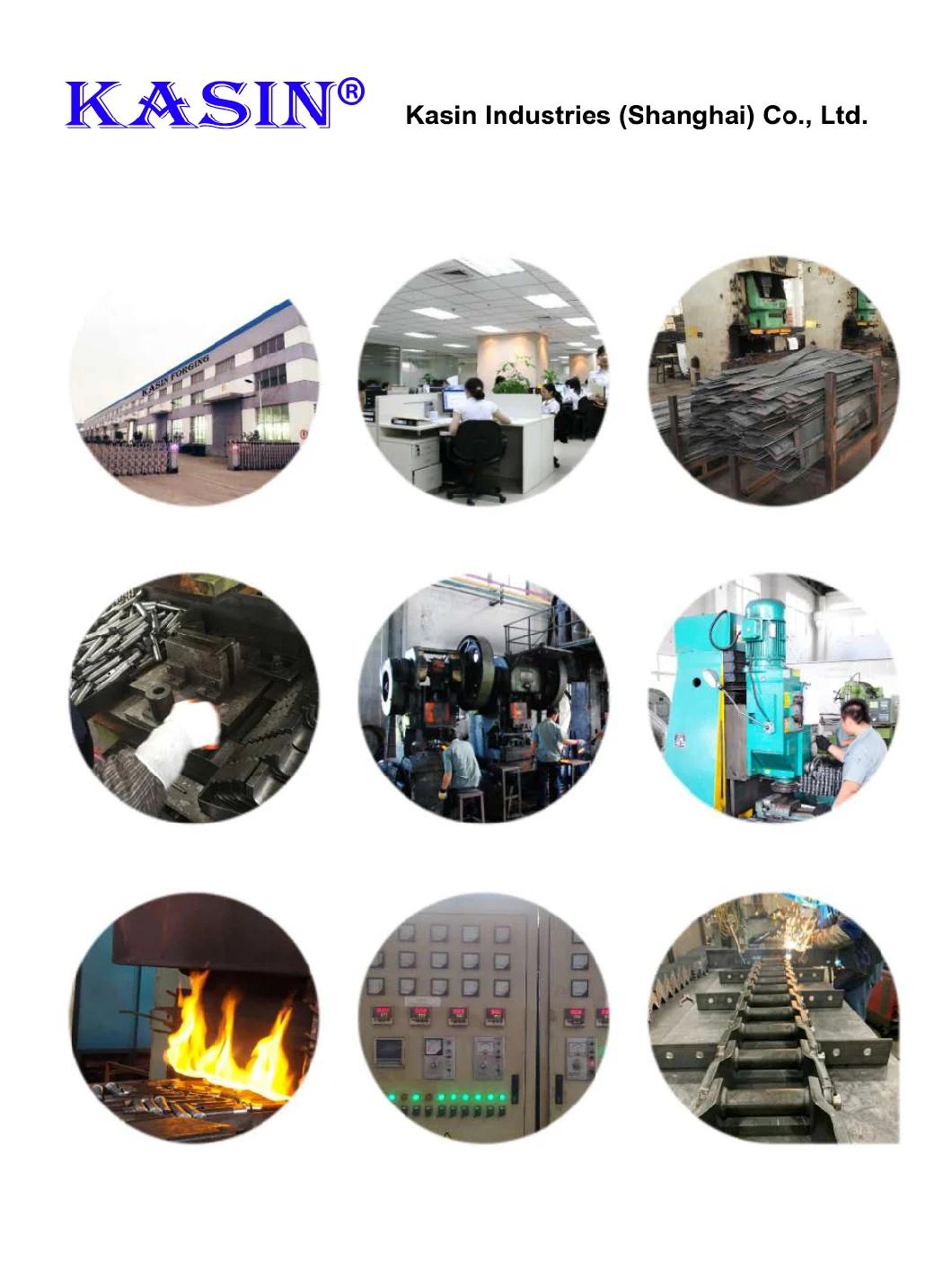

About Us

Kasin group was established in 1989, and its first product is casting carrier trolley for power & free conveyor system. In 1995, Kasin purchased Luoyang Guoping Forging Factory (LYGP), a marketer of forging bolts & nuts to power & free line market in china. With this acquisition, Kasin positioned itself as one of major parts suppliers of monorail and power & free conveyor system in china.

In 2005, H&H Corp., a professional manufacturer of large size conveyor chain, was purchased a portion as sharehould by Kasin, and worked as export window to all over the world, especially bucket elevator chain, sugar mill chain, welded mill scaper chain.

In 2015, Kasin established itself machinery company/Kasin machinery(Henan)Co.,Ltd., produced fleixible coupling, eg: FCL Coupling, NM Coupling, Curved Jaw Coupling, Chain Coupling andJaw Coupling.

Nowadays,Kasin is one of the biggest professional specialist of Engineering Class Conveyor Chain, Drop Forged Rivetless Chain,  Forged Chain, Sugar Mill Chain, Bucket Elevator Chain, Flexible Couplings and 100% to oversea market, covering Japan, U.S. and Europ etc.

With the certificate of ISO 9001 and GB/T 19001, Kasin provide top quality products at the reasonable price, to win-win situation in long-terms cooperation, adhering to the slogan: "FIRST TIME, EVERY TIME".

Our mission is to provide highest quality products at the best possible price. And in doing so, to provide an unmatched customer experience and to build customer trust and satisfaction. Honest, Quality, Efficient, Developing, Security the five crucial components constituting KASIN, which is the key motto for all of the KASIN employees. Therefore, we keep striving to build a corporate system that is highly appreciated and we hope that you continue to select and use Kasin products with pride and satisfaction.



Certificates




Packing & Delivery

Neutral Packing; Carton & Wooden Case



FAQ


Q: Are you trading company or manufacturer ?

A: We are professionally manufacturer in china and own ourself casting-workshop, warmly welcome to visit our factory  at any time.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, it's available for Kasin to submit sample for approval free of charge, however it's Kasin regulation: for new potentioal customer, sample is free but customer is responsilble for logistic fee.


Q: What is your terms of payment ?

A: 100%T/T Before shipment after inspect well
