• Bore Diameter：19mm
• Speed：10000r,M
• Structure：Rigid
• Material：Stainless Steel
• Type：Universal Coupling
• Transport Package：Cartons
• Specification：As customer′s request
• Origin：China
• HS Code：8505111000
• Production Capacity：5000,Month
• Package size per unit product：35.00cm * 26.00cm * 16.00cm
• Gross weight per unit product：20.000kg

Basic Info.

Bore Diameter 19mm Speed 10000r/M Structure Rigid Material Stainless Steel Type Universal Coupling Transport Package Cartons Specification As customer′s request Origin China HS Code 8505111000 Production Capacity 5000/Month

Packaging & Delivery

Package size per unit product 35.00cm * 26.00cm * 16.00cm Gross weight per unit product 20.000kg

Product Description

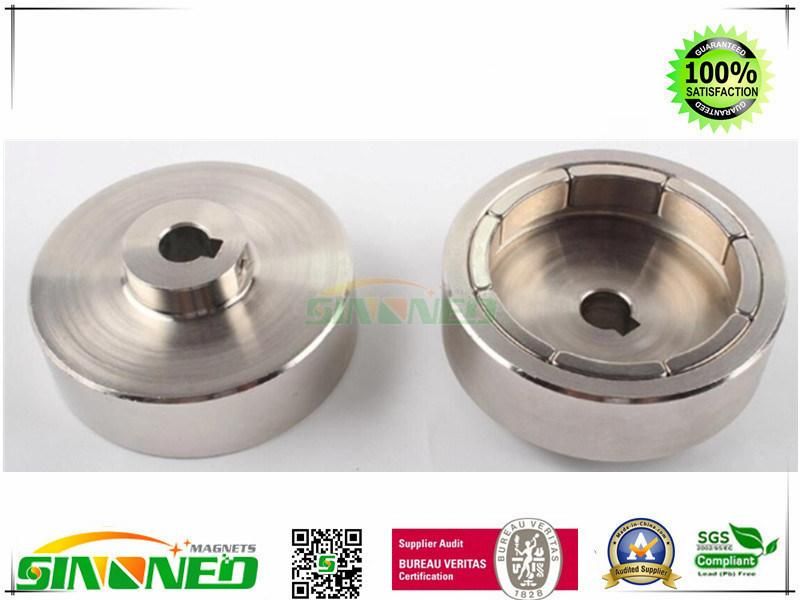

Magnetic coupling is a coupling that transfers torque from one shaft but using a magnetic field rather than a physical-mechanical connection.

Magnetic couplings are most often used for liquid pumps and propeller systems since a static, physical barrier can be placed between the two shafts to separate the fluid from the motor operating in air. Magnetic couplings preclude the use of shaft seals, which eventually wear out and fail from the sliding of two surfaces against each other. Magnetic couplings are also used for ease of maintenance on systems that typically require precision alignment when physical shaft couplings are used since they allow a greater off-axis error between the motor and driveshaft.

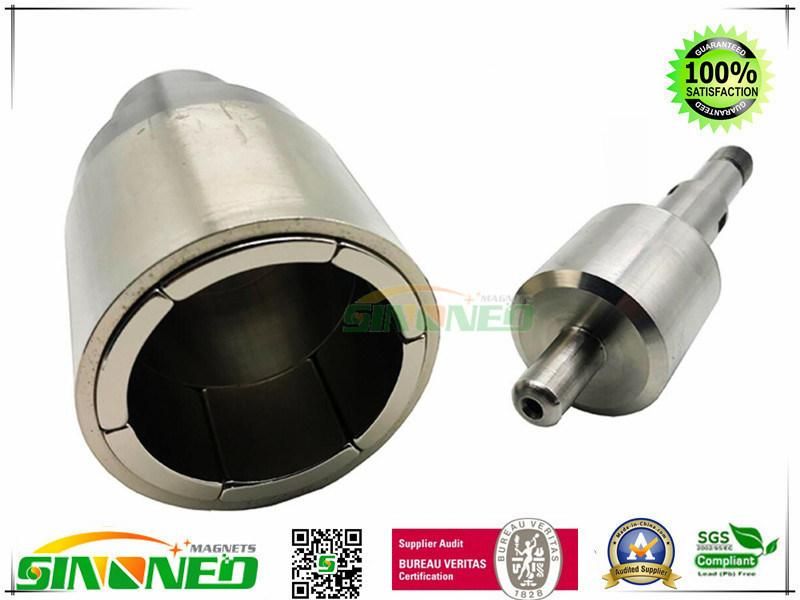

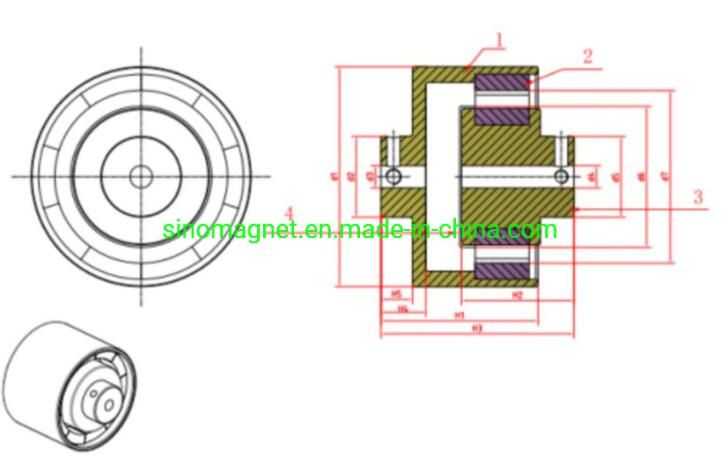

Item	Description
1	Outer Rotor
2	Magnet

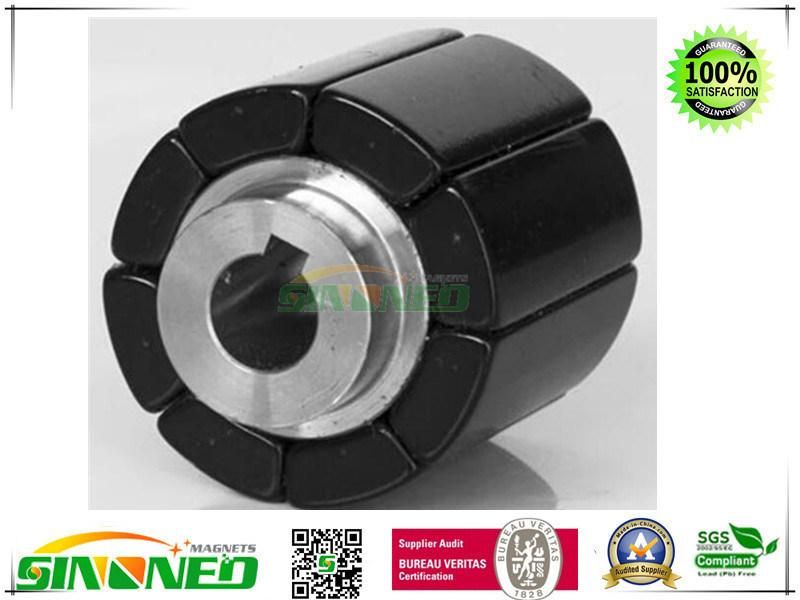

3	Inner Rotor
4	Spacer Sleeve

1. Materials

Magnet: Neodymium Magnet

Sleeve: Austenite stainless steel, such as SS304, SS316.

Main part: 20# steel, martensitic stainless steel

2. Advantages

Magnetic coupling for standard applications

Hermetically sealed

No contact of torque transmitting elements

No maintenance necessary

High efficient can optional

3. Recommended applications

-Chemical industry

-Oil and gas industry

-Refining technology

-Pharmaceutical industry

-Centrifugal pumps

-Top drive mixers/agitators

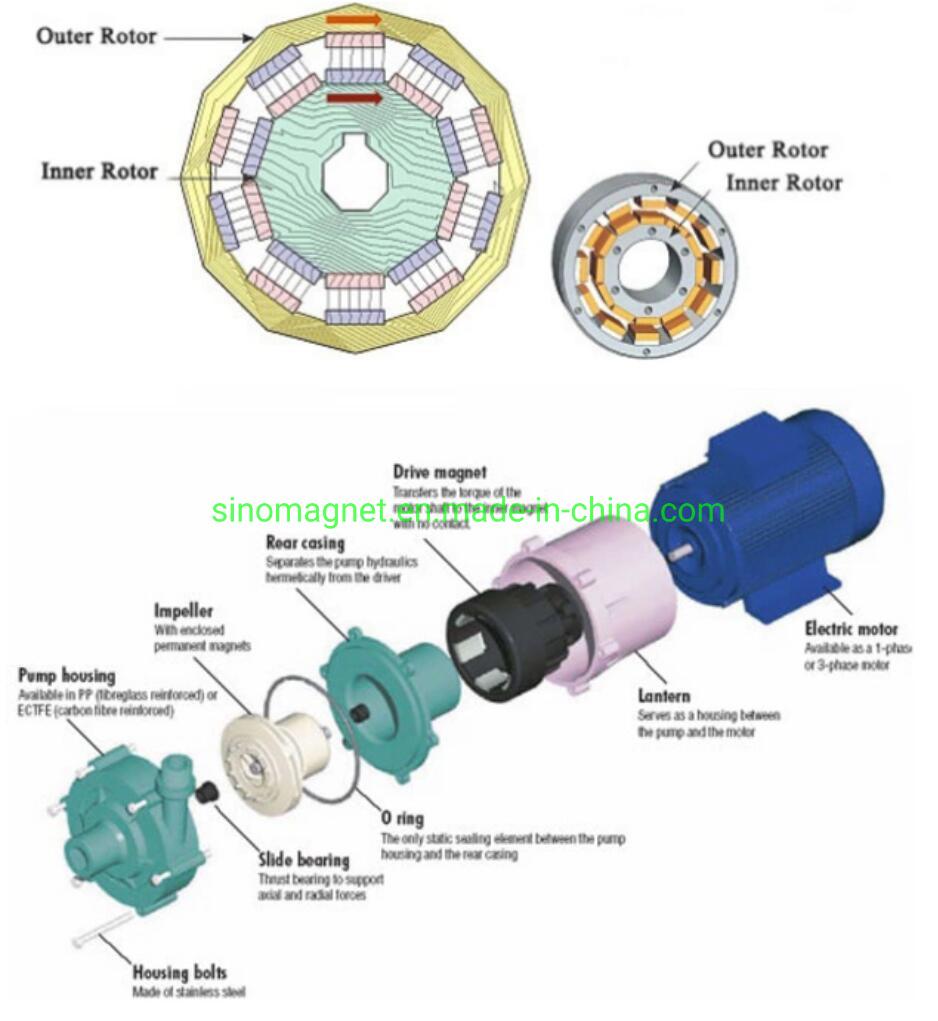

4. How does magnetic coupling work?
