Newest Small Cardan Shaft with High Quality
Jingjiang Huading Machinery Manufacturing Co., Ltd.- Standard Or Nonstandard：Standard
- Shaft Hole：as Your Requirement
- Torque：as Your Requirement
- Bore Diameter：as Your Requirement
- Speed：as Your Requirement
- Structure：Flexible
Base Info
- Model NO.：SWP-B
- Material：35CrMo
- Type：Universal Coupling
- Delivery Time：Depend on Your Quantity
- Size：Customer Required
- Color：Customer Required
- Transport Package：Depend on Your Quantity
- Specification：as your requirement
- Trademark：Huading
- Origin：China
- HS Code：84836000
- Production Capacity：5000pieces,Year
Description
Mass
kgL D1
js11 D2
H7 D3 E E1 B×h h1 L1 n-d SWP160B 160 16 8 ≤10 50 585 140 95 114 15 4 20×12 6 85 6-13 0.14 44 SWP180B 180 20 10 ≤10 60 640 155 105 121 15 4 24×14 7 95 6-15 0.23 54 SWP200B 200 31.5 16 ≤10 70 730 175 125 17 17 5 28×16 8 110 8-15 0.36 75 SWP225B 225 40 20 ≤10 76 830 196 135 152 20 5 32×18 9 130 8-17 0.61 108 SWP250B 250 63 31.5 ≤10 80 860 218 150 168 25 5 40×25 12.5 135 8-19 0.98 138 SWP285B 285 90 45 ≤10 100 1000 245 170 194 27 7 40×30 15 150 8-21 2.12 229 SWP315B 315 140 63 ≤10 110 1120 280 185 219 32 7 40×30 15 170 10-23 3.80 309 SWP350B 350 180 90 ≤10 120 1230 310 210 245 35 8 50×32 16 185 10-23 6.60 408 SWP390B 390 250 112 ≤10 120 1310 345 235 273 40 8 70×36 18 205 10-25 10.50 539 SWP435B 435 355 160 ≤10 150 1555 385 255 299 42 10 80×40 20 235 16-28 22.39 903 SWP480B 480 450 224 ≤10 170 17440 425 275 351 47 12 90×45 22.5 265 16-31 38.21 1243 SWP550B 550 710 315 ≤10 190 1905 492 320 402 50 12 100×45 22.5 290 16-31 61.00 1643 SWP600B 600 1000 500 ≤10 210 2600 544 380 450 55 15 90×55 27.5 360 22-34 99.13 2335 SWP640B 640 1250 630 ≤10 230 2780 575 385 480 60 15 100×60 30 385 18-38 170.21 27.20

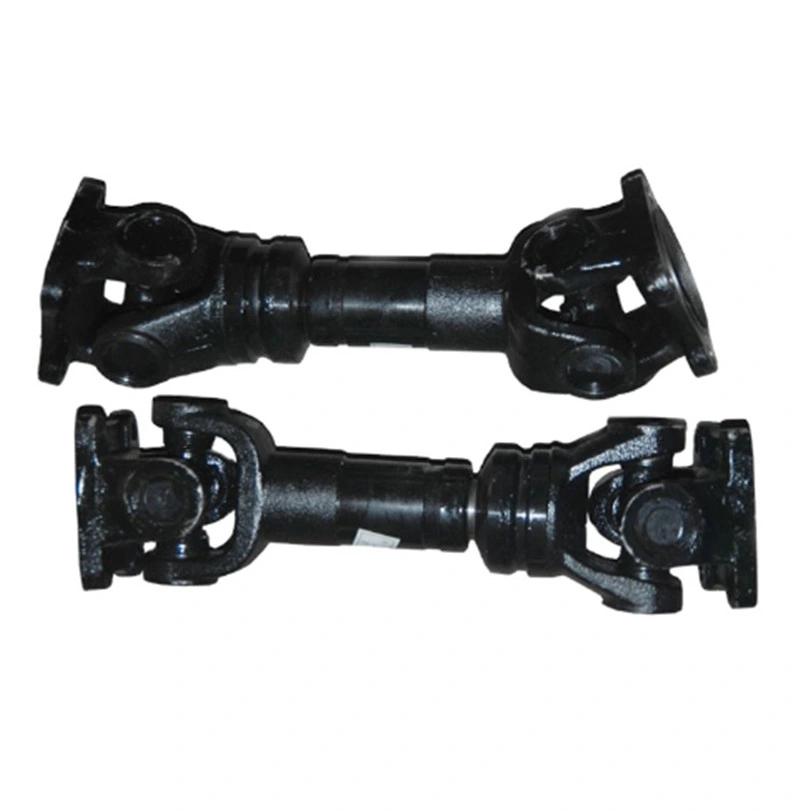

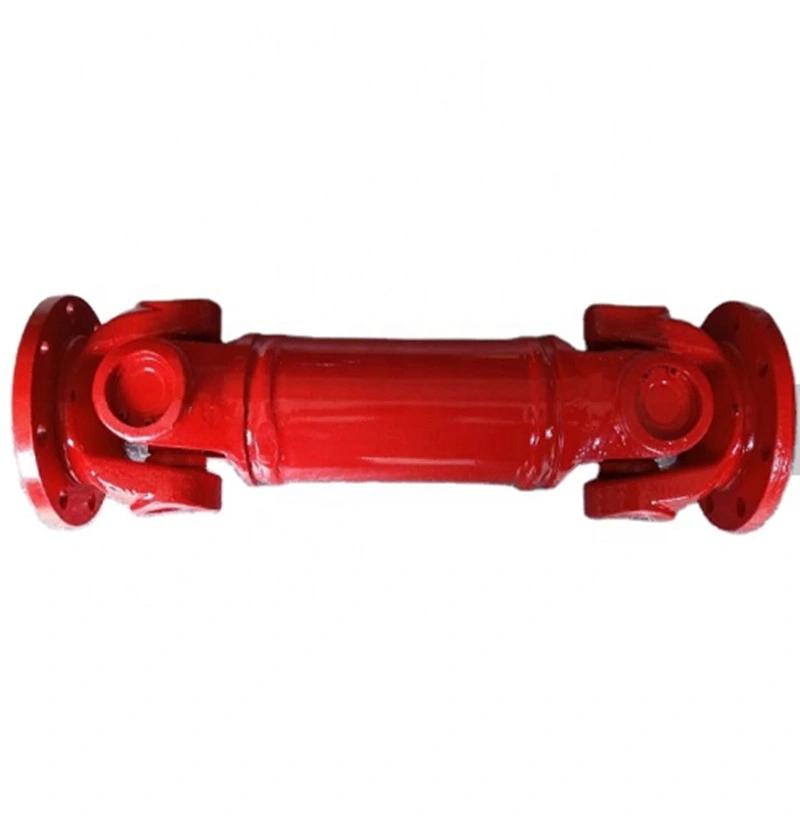

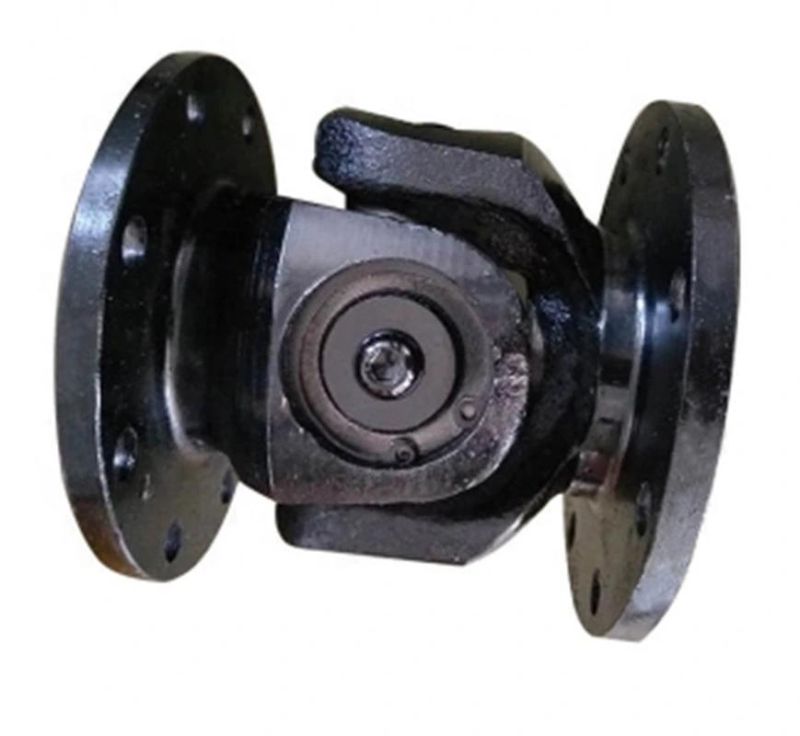

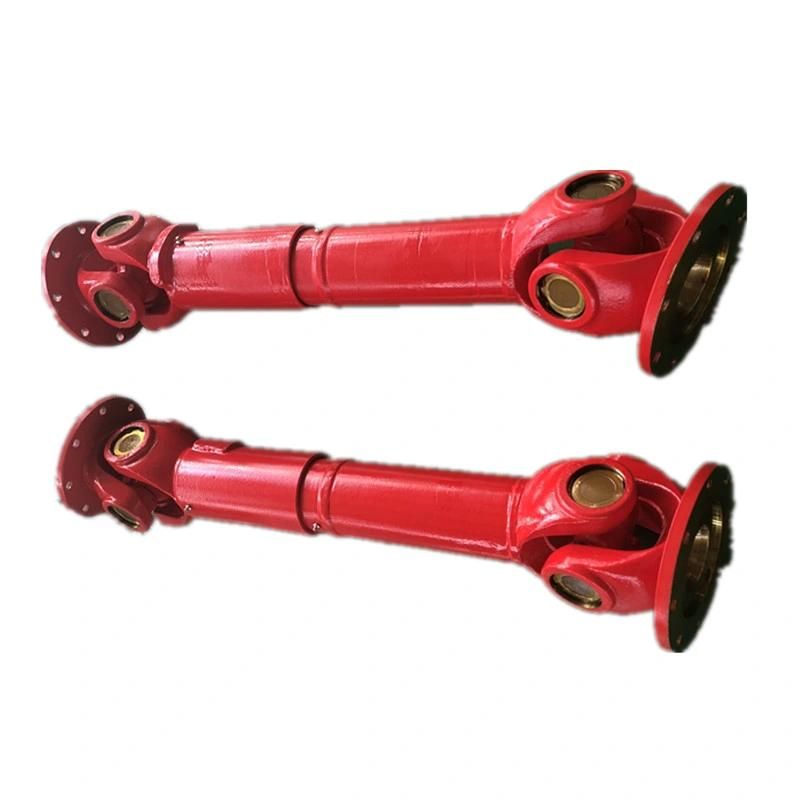

♦Product Show
♦Other Products List

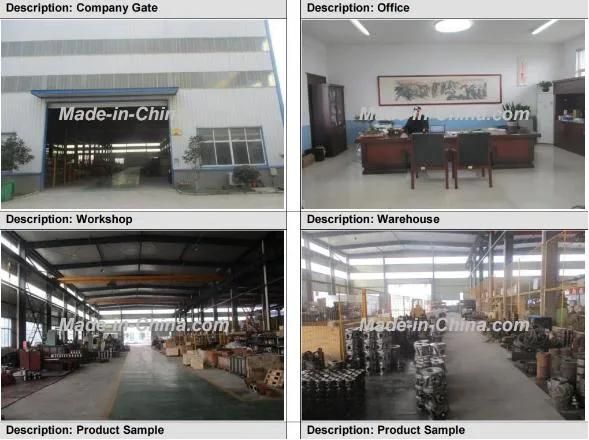

Jingjiang Huading Machinery Manufacturing Co., Ltd. Is a high-tech enterprise specializing in the design and manufacture of various types of coupling. There are 86 employees in our company, including two senior engineers and no fewer than 20 mechanical design and manufacture, heat treatment, welding and other professionals. Advanced and reasonable process, complete detection means. We company actively introduce foreign advanced technology and equipment, on the basis of the condition, we make full use of the advantage and do more research and innovation. Strict to high quality and operate strictly in accordance with the ISO9000 quality certification system standard mode.
The leading products of the company are mainly universal coupling, gear coupling, flexible coupling, rigid coupling and other series of dozens of thousands of specifications coupling, widely used in metallurgy, mining, lifting transport, petroleum chemical industry, papermaking, pharmaceutical, textile, printing and dyeing, ships, locomotives and equipment, longitudinal welded pipe cut, Kaiping, straightening and other industries, it provide strong support of technology and equipment for the localization of imported domestic numerous couplings, won the praise of clients
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
