• Model NO.：DY Gearbox
• Type：Cylindrical Gear Box
• Center Distance：160mm~800mm
• Rated Torque：up to 6000kn.M
• Gear Arrangement：Bevel Helical Hardened
• Ratio：1,8~1,500
• Input Speed：1500r,Min, 1000r,Min, 750r,Min
• Material：Cast Iron
• Toothed Portion Shape：Bevel Wheel
• Manufacturing Method：Forging Gear
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. DY Gearbox Type Cylindrical Gear Box Center Distance 160mm~800mm Rated Torque up to 6000kn.M Gear Arrangement Bevel Helical Hardened Ratio 1/8~1/500 Input Speed 1500r/Min, 1000r/Min, 750r/Min Material Cast Iron Toothed Portion Shape Bevel Wheel Manufacturing Method Forging Gear Transport Package Wooden Case Specification ISO Trademark AOKMAN DRIVE Origin China HS Code 8483409000 Production Capacity 5000PCS/Year

Product Description

Dy Series Three Stage Cast Iron Bevel Helical Cylindrical Gearbox (DCY)Center distance(mm): 160~800
(I): 8 ~500
Out-put torque(N. M): 4130~ 600000

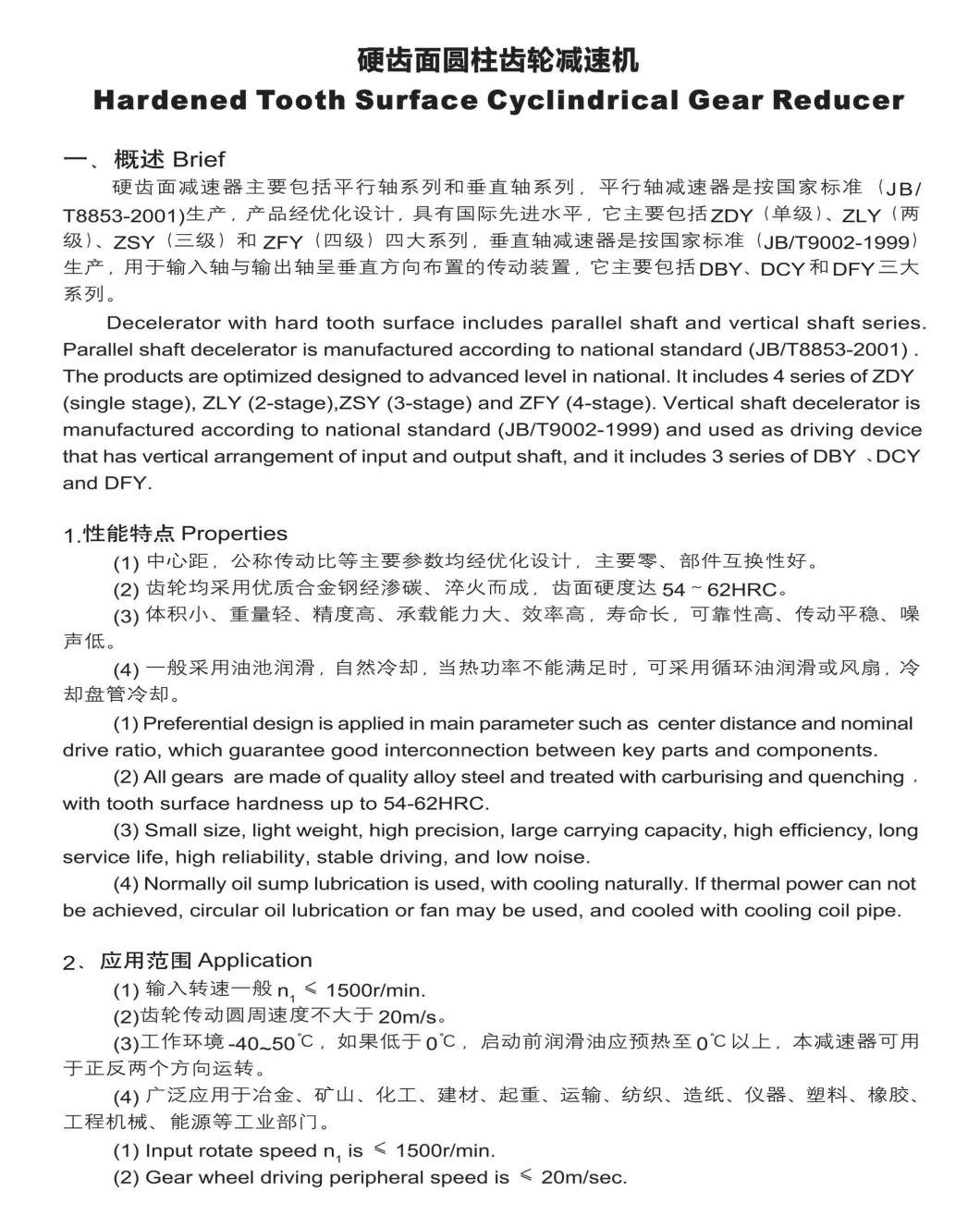

(1)Preferential design is applied in main parameter such as center distance and nominal drive ratio, which guarantee good interconnection between key parts and components.
(2) All gears are made of quality alloy steel and treated with carburising and quenching, with tooth surface hardness up to 54-62HRC.
(3) Small size, light weight, high precision, large carrying capacity, high efficiency, long service life, high reliability, stable driving, and low noise.
  (4) Normally oil sump lubrication is used, with cooling naturally. If thermal power can not nbe achieved, circular oil lubrication or fan may be used, and cooled with cooling coil pipe.
(5) Input rotate speed is1500r/min.
(6) Gear wheel driving peripheral speed is20m/sec.

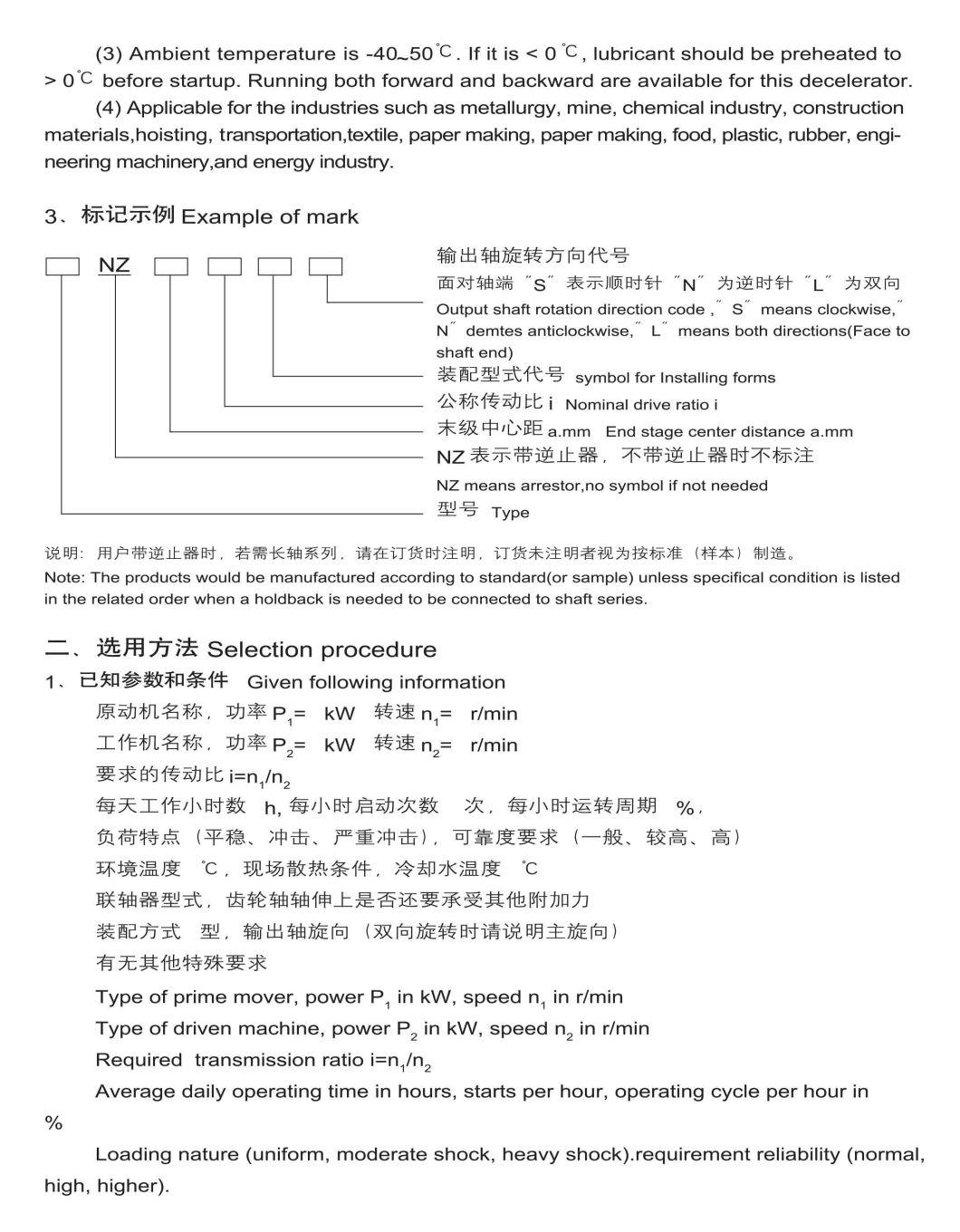

  (7) Ambient temperature is -40~500°C .If it is<0°C,lubricant should be preheated to >0°C before startup. Running both forward and backward are available for this decelerator.
 (8) Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting, transportation, textile, paper making, paper making, food, plastic, rubber, engineering machinery, and energy industry.




Gearbox Parameters:

DY Series	Models	Ratio
DBY (2 Stage)	DBY160, DBY180, DBY200, DBY224, DBY250, DBY280, DBY315, DBY355, DBY400, DBY450, DBY500, DBY560	8~14
DCY (3 Stage)	DCY160, DCY180, DCY200, DCY224, DCY250, DCY280, DCY315, DCY355, DCY400, DCY450, DCY500, DCY560, DCY630, DCY710, DCY800	16~50
DFY (4 Stage)	DFY160, DFY180, DFY200, DFY225, DFY250, DFY280, DFY320, DFY360, DFY400, DFY450, DFY500, DFY560, DFY630, DFY710	90~500

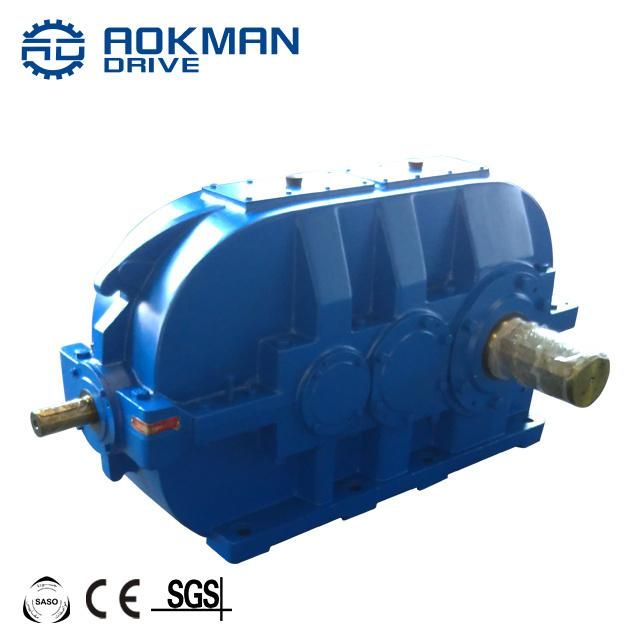

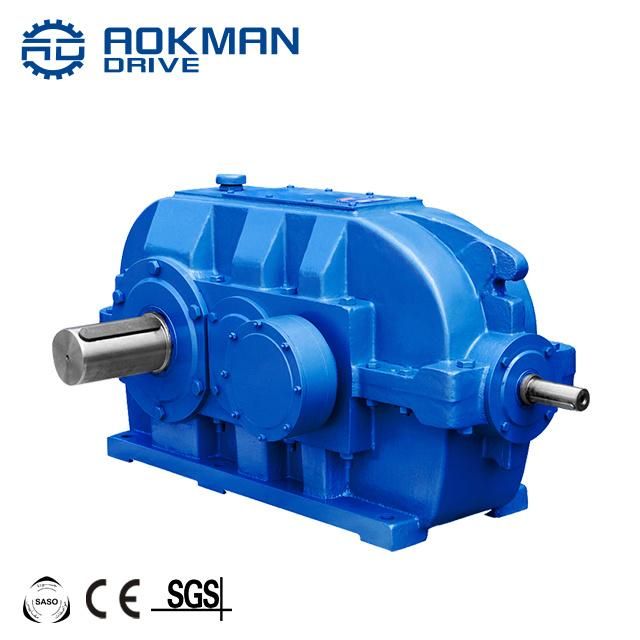

Product Pictures:

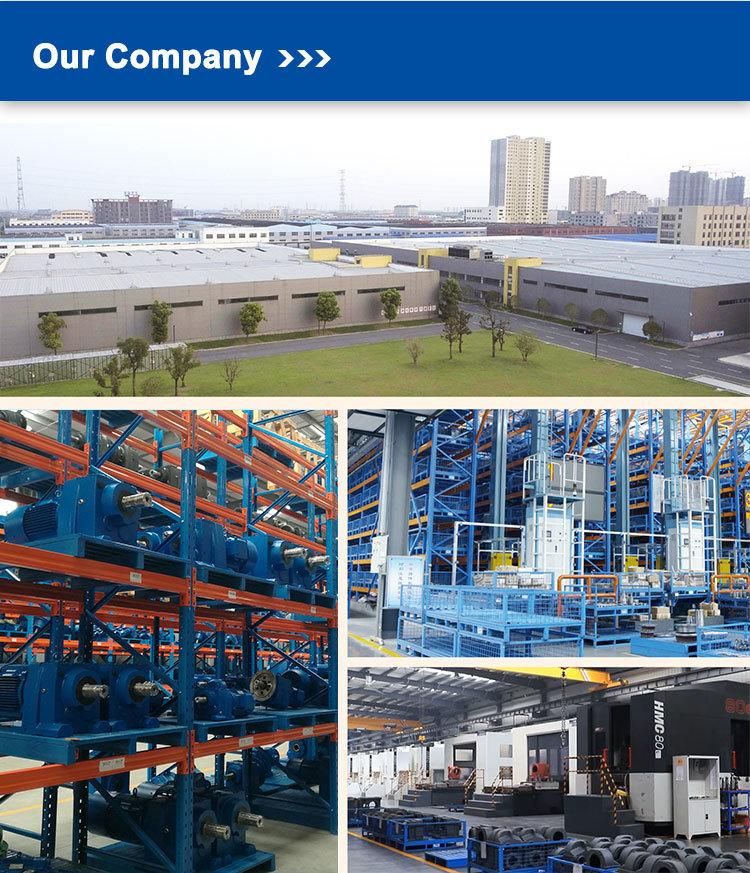

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
