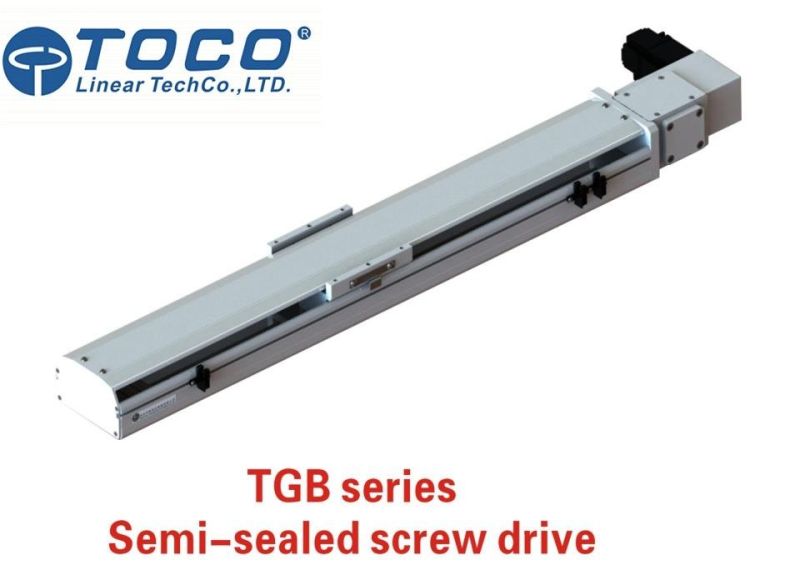

• Model NO.：TGB Series
• Max Vertical Payload：1.5 Kg to 33 Kg
• OEM：Yes
• Driven：Ball Screw
• Sealed Structure：Yes
• Transport Package：Carton Box or Wooden Case

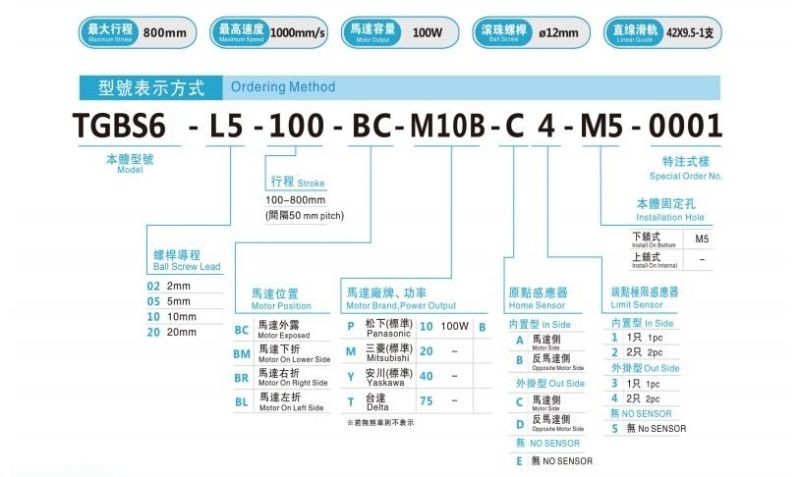

• Specification：TGB5M, 6M, 10, 12, 13, 14, 17, 22, 17M, 22M
• Trademark：TOCO
• Origin：China
• HS Code：8487900000
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. TGB Series Max Vertical Payload 1.5 Kg to 33 Kg OEM Yes Driven Ball Screw Sealed Structure Yes Transport Package Carton Box or Wooden Case Specification TGB5M, 6M, 10, 12, 13, 14, 17, 22, 17M, 22M Trademark TOCO Origin China HS Code 8487900000 Production Capacity 5000 Sets/Month

Product Description

Features
1. Available in a variety of customizable sizes

2. Repeatability of up to ± 0.01mm

3. Powerful ball screw drives for reliable movements.

4. Extremely compact aluminum frame with high inherent stiffness

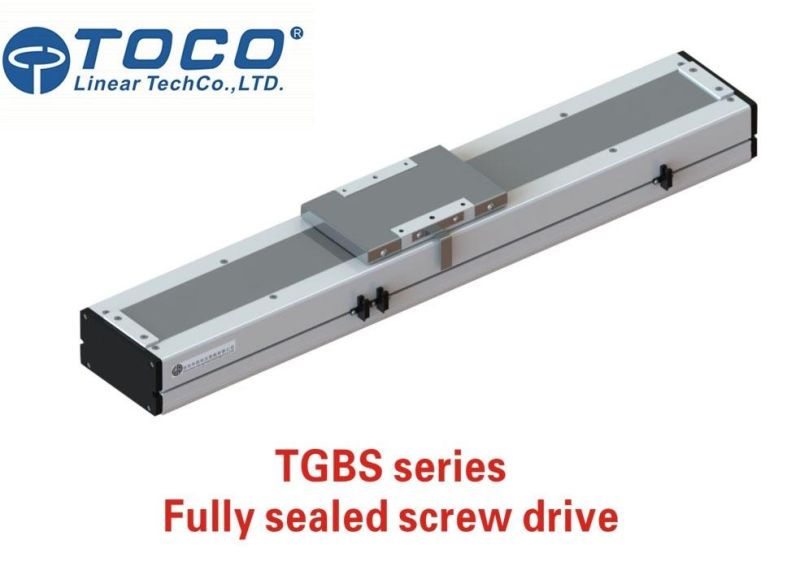

5. Max Stroke of 300 mm to 1050 mm. Fully sealed structure, body width 51mm to 135 mm, it is designed for dustproof usage in a hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, high-temperature resistance, long service life.

6. Rigidness improved, Smaller size, Easy to maintain, Reduce dust, Improve accuracy, Easy assemble, etc.

Operation
1. The operation conditions need to be within the rated values as shown in the technical information.

2. Avoid dust, debris, and any foreign objects from entering the ball return system.

3. The operational temperature should be under 80 ºC. In high-temperature environments above 80ºC.

4. If the product can be used in a special environment, such as vacuum, vibration,
clean room, corrosive chemicals, organic solvents, extremely high or low temperatures, humidity, liquid splashes,
oil drops or mist, high salt, heavy load, vertical or cantilever installations. Please Confirm first with TOCO.

5. For vertical installations, when loaded, there is a possibility that the slider may fall. We recommend adding
proper braking and ensure functionality before the operation.

Maintenance
1. Lubricate the product before the initial use. Note the type of grease used and avoid mixing different types together.

2. For normal operating conditions, it is recommended to check the operation every 100km, clean and supply grease onto the rail and shaft.

Catalogs


Package & Shipping
1.Package: Carton or wooden case.
2.Delivery time: 15 days after receiving payment.
3.Shipping: by express (DHL, TNT, FedEx, etc.) or by sea.

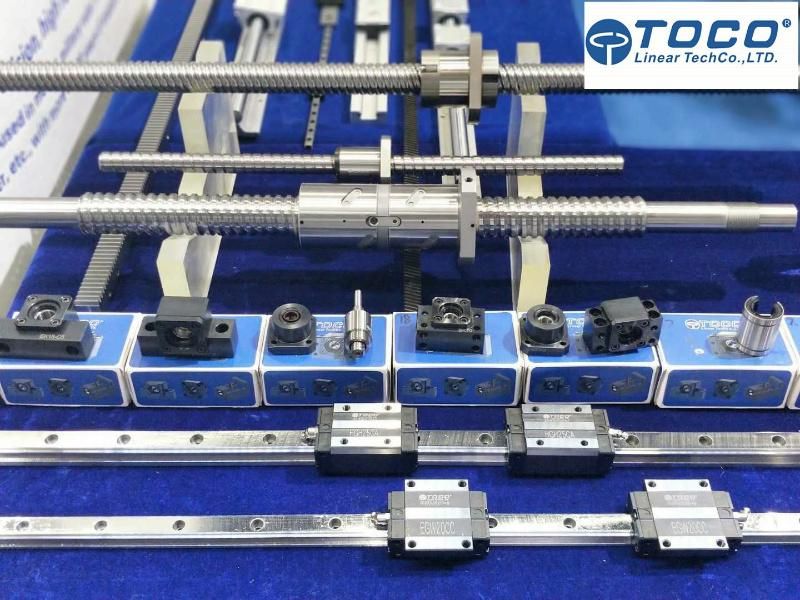

TOCO Exhibition
