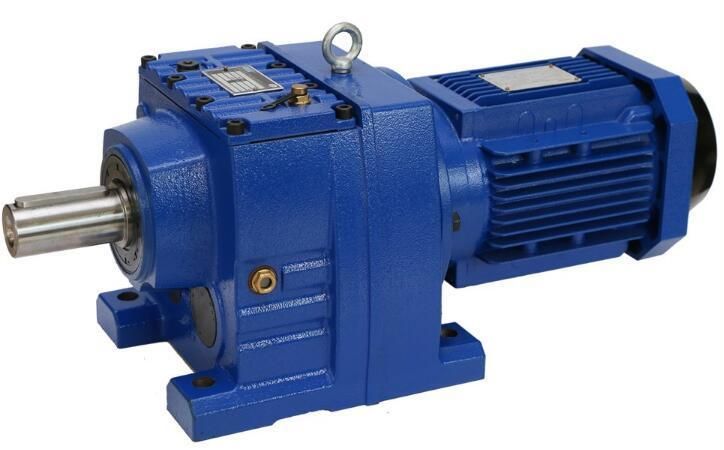

R Series Foot Mounted Helical Gear Motor (R97)
Suzhou Dawang Transmission Equipment Co., Ltd.- Application：Motor, Machinery, Marine, Agricultural Machinery
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Vertical Type
- Step：Single-Step
- Delivery Time：3-15 Days
Base Info
- Model NO.：R97
- Certificate：CE
- OEM：OEM Service
- Color：Grey Ral7031,7040, Blue Ral5010
- Transport Package：Wooden Box
- Trademark：DAWANG
- Origin：China
- HS Code：8483409000
- Production Capacity：1300 Unit Per Month
Description

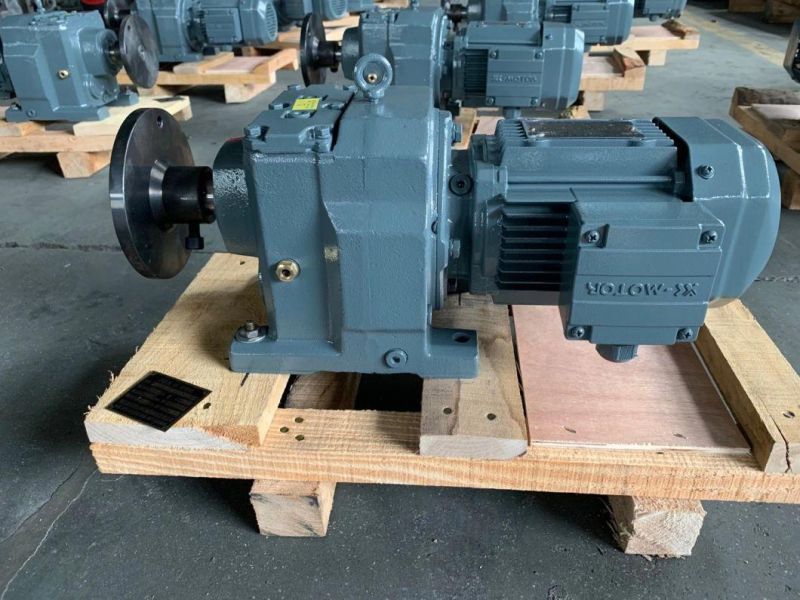

Detailed Photos
Product Features
Technical data:
| Housing material | Cast iron/Ductile iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, INA, NSK. |
| Brand of oil seal | NAK --- Taiwan or other brands requested |
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
Q: What information shall we give before placing a purchase order?

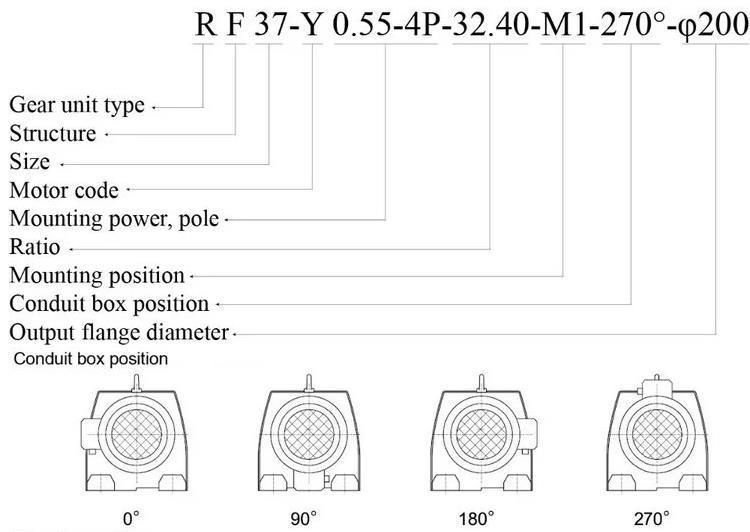

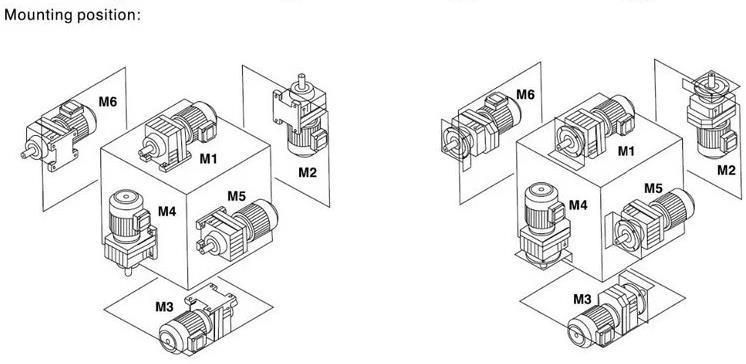

A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
