• Model NO.：JMI
• Material：45#Steel

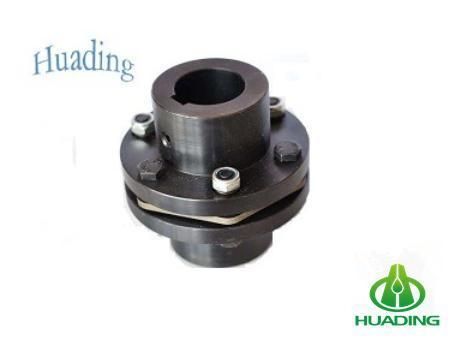

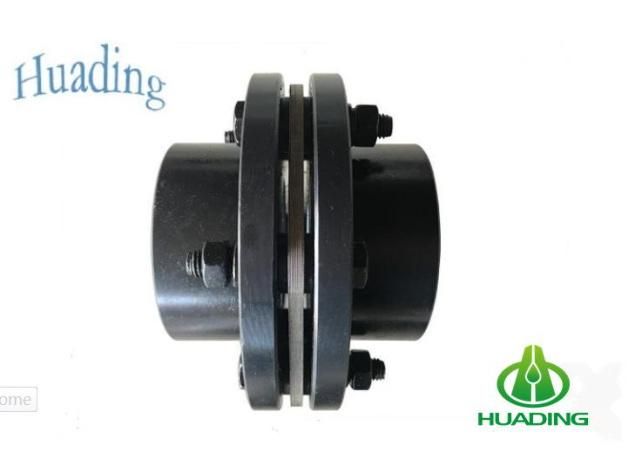

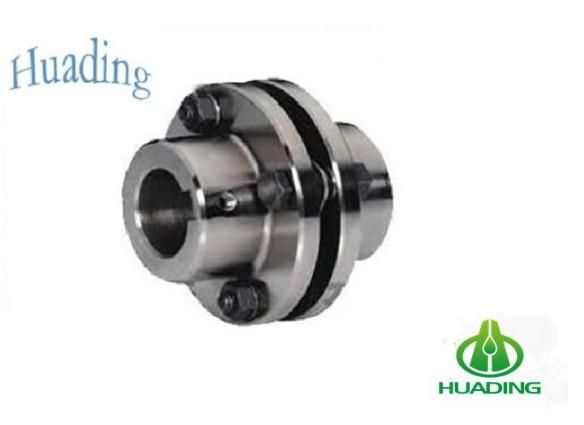

• Type：Diaphragm Coupling
• Shaft Hole Length：27mm - 550mm
• Delivery Time：Depend on Your Quantity
• Transport Package：Customer Required
• Specification：as your requirement
• Trademark：Huading
• Origin：China
• HS Code：8483600090
• Production Capacity：10000pieces,Year

NO	Tn    /N·m	Tmax  /N·m	[n]  /r·mi -1	d  (H7)					D	C  N·m/rad	t	I  kg·m 2  ≈	m  /kg  ≈
					Y	J,J1, Z		L
					L	L	L1
JMI1	25	80	6000	14	32	-	J1  27 Z1 20	35	90	1×10 4	8.8	0.0007	1
				16,18,19	42		30
				20,22	52		38
JMI2	63	180	5000	18,19	42	-	30	45	100	1.4×10 4	9.5	0.001	1.3
				20,22,24	52		38
				25	62		44
JMI3	100	315	5000	20,22,24	52	-	38	50	120	1.87×10 4	11	0.0024	2.3
				25,28	62		44
				30	82		60
JMI4	160	500	4500	24	52	-	38	55	130	3.12×10 4	12.5	0.0037	3.3
				25,28	62		44
				30,32,35	82		60
JMI5	250	710	4000	28	62	-	44	60	150	4.32×10 4	14	0.0083	5.3
				30,32,35,38	82		60
				40	112		84
JMI6	400	1120	3600	32,35,38	82	82	60	65	170	6.88×10 4	15.5	0.0159	8.7
				40,42,45  ,48,50	112	-	84
JMI7	630	1800	3000	40,42	112	112	84	70	210	10.35×10 4	19	0.0432	14.3
				45,45,50 ,55,56		-
				60	142		107
JMI8	1000	2500	2800	45,48	112	112	84	80	240	16.11×10 4	22.5	0.0879	22
				50,55,56		-
				60,63,65,70	142		107
JMI9	1600	4000	2500	55,56	112	112	84	85	260	26.17×10 4	24	0.1415	29
				60,63,65 ,70,71,75	142	-	107
				80	172		132
JMI10	2500	6300	2000	63,65,70 ,71,75	142	142	107	90	280	7.88×10 4	17	0.2974	52
				80,85,90,95	172	-	132
JMI11	4000	9000	1800	75	142	142	107	95	300	10.49×10 4	19.5	0.4782	69
				80,85,90,95	172	-	132
				100,110	212		167
JMI12	6300	12500	1600	90,95	172	-	132	120	340	14.07×10 4	23	0.8067	94
				100,110 ,120 ,125	212		167
JMI13	10000	18000	1400	100,110 ,120,125	212	-	167	135	380	19.23×10 4	28	1.7053	128
				130,140	252		202
JMI14	16000	28000	1200	120,125	212	-	167	150	420	30.01×10 4	31	2.6832	184
				130,140,150	252		202
				160	302		242
JMI15	25000	40000	1120	140,150	252	-	202	180	480	47.46×10 4	37.5	4.8015	263
				160,170,180	302		242
JMI16	40000	56000	1000	160,170,180	302	-	242	200	560	68.09×10 4	41	9.4118	384
				190,200	352		282
JMI17	63000	80000	900	190,200,220	352	-	282	220	630	101.3×10 4	47	18.3753	561
				240	410		330
JMI18	100000	125000	800	220	352	-	282	250	710	161.4×10 4	54.5	28.2033	723
				240,250,260	410		330
JMI19	160000	200000	700	250,260	410	-	330	280	800	79.3×10 4	48	66.5813	1267
				280,300,320	470		380

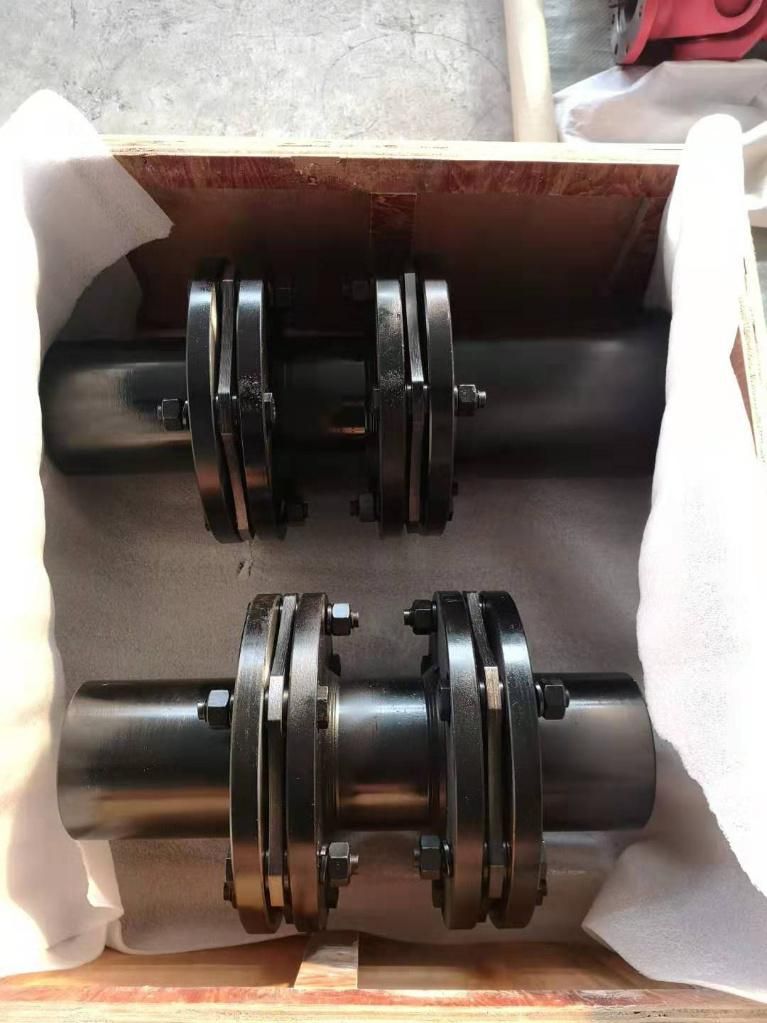

Production Pictures
