• Model NO.：JWB-X SERIES
• Type：Ceramic, Glass, Logistic
• Transport Package：Carton
• Specification：iron,aluminium,0.75kw,30KGS,0.05CBM
• Trademark：STARSHINE DRIVE
• Origin：Foshan, Guangdong, China
• HS Code：8483409090
• Production Capacity：10000 Pieces,Month

Basic Info.

Model NO. JWB-X SERIES Type Ceramic, Glass, Logistic Transport Package Carton Specification iron/aluminium/0.75kw/30KGS/0.05CBM Trademark STARSHINE DRIVE Origin Foshan, Guangdong, China HS Code 8483409090 Production Capacity 10000 Pieces/Month

Product Description

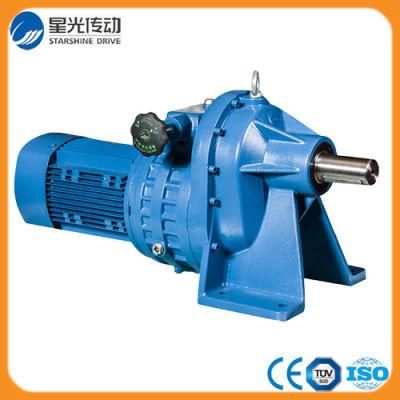

JWB-X SERIES SPEED VARIATOR

Characteristics

JWB-X With great reliability developed over 30 years of service, the JWB-X series is a valid alternative to electronic drives  and is easy to use and maintain.
The JWB-X type in cast iron includes a wide range of models with flange, feet, with input shaft or in motorized version, are available in size number 04 and 05 ,input power is 1.1kw, 1.5kw,2.2kw,3kw,4kw.
The low-cost, light weight JWB-X B versions in aluminium,are available in size number 01, 02 and 03,04, input power is 0.18kw,0.25kw,0.37kw,0.55kw , 0.75kw,1.1kw and 1.5kw.
All type Certifications Available: ISO,CE,CQC,TUV,CCC certificate.


 JWB-X  type

• Sizes: 04,05
• Motor Power from 1.1 kW to 4 kW  (Incldue 1.1kW,1.5kW,2.2kW,3kW,4kW)
• Cases in RAL 5010 blue cast iron
• Shafts: case hardened and tempered steel.
• Internal components: heat-treated steel
• Output speed with 4 pole(1400r/min) motors:

190-950r/min; 100-500r/min;80-400r/min;60-300r/min;40-200r/min;
30-150r/min;28-140r/min; 20-100r/min; 15-75r/min;4.7-23.5r/min;2-10r/min;

Output Torque value max 535Nm

• Silent, vibration-free running
• Bidirectional rotation
• Control handwheel positionable on either side
• Slipping speed to max load at 5%
• Painted with blue epoxy-polyester powder



 JWB-X B type

• Sizes: 01,02,03 and 04

• Motor Power up to 1.5 kW or less

(Incldue 0.18kW,0.25kW,0.37kW,0.55kW,0.75kW,1.1kW,1.5kW)

• Cases in die-cast aluminium alloy

• Shafts: case hardened and tempered steel.
• Internal components: heat-treated steel
• Output speed with 4 pole(1400r/min) motors:

190r/min-950r/min; 100r/min-500r/min;80r/min-400r/min;60r/min-300r/min;
40r/min-200r/min;28r/min-140r/min;25-125r/min; 18-90r/min; 15r/min-75r/min;
13-65r/min; 9-45r/min; 8-40r/min; 6.5-32.5r/min;4.7r/min-23.5r/min;2r/min-10r/min.

• Output Torque value max 795 Nm
• Silent, vibration-free running
• Bidirectional rotation
• Control hand wheel positionable on either side
• Slipping speed to max load at 5%
• Painted with blue epoxy-polyester powder

SPEED VARIATOR					Output Speed Range:
SWB SERIES					2rpm-950rpm
					Applicable Motor Power:
					0.18kW-7.5kW
					Input Options 1:
Type	Old Type	Output Torque	Output Shaft Dia.		With Inline AC Motor
SWB01	JWB01	2.6-1.6N.m	φ11		Input Options 2:
SWB02	JWB02	258-1.8N.m	φ14, φ24, φ28, φ32		With IEC Motor
SWB03	JWB03	426-4N.m	φ24, φ28, φ28, φ38		Input Options 3:
SWB04	JWB04	795-8N.m	φ28, φ38, φ38, φ42		With Input Shaft
SWB05	JWB05	535-16N.m	φ38, φ48, φ55		Input Options 4:
SWB06	JWB06	1002-40N.m	φ42, φ55, φ70		With Input Flange

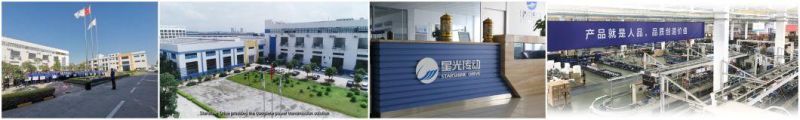

Starshine Drive








Certificate



Our Team

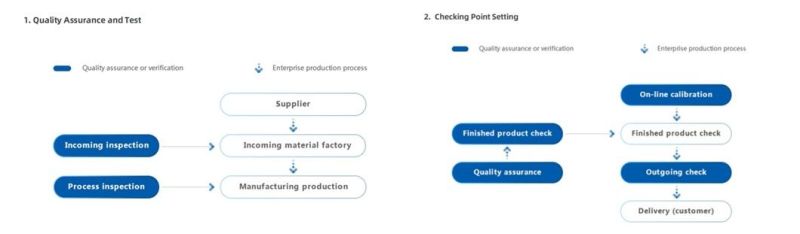

Quality Control

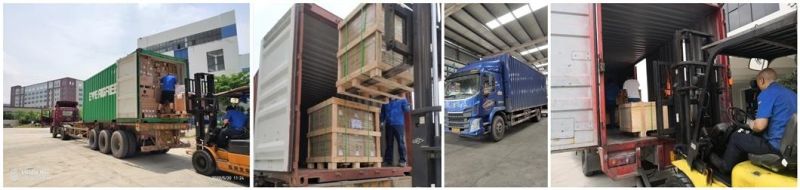

Packing
