Spare Parts for Flexible Shaft Assembly
Shandong Maso Transmission Technology Co., Ltd- Standard Or Nonstandard：Standard
- Structure：Flexible
- Material：Stainless Steel
- Flexible Hose：Spare Parts
- Transport Package：Carons, Pallets or Wooden Case
- Specification：ISO9001: 2008; SGS,
Base Info
- Trademark：JYG
- Origin：Yanggu, Shandong
- HS Code：84831090
- Production Capacity：30000 Pieces Per Month
Description
Basic Info.
Trademark JYG Origin Yanggu, Shandong HS Code 84831090 Production Capacity 30000 Pieces Per MonthProduct Description

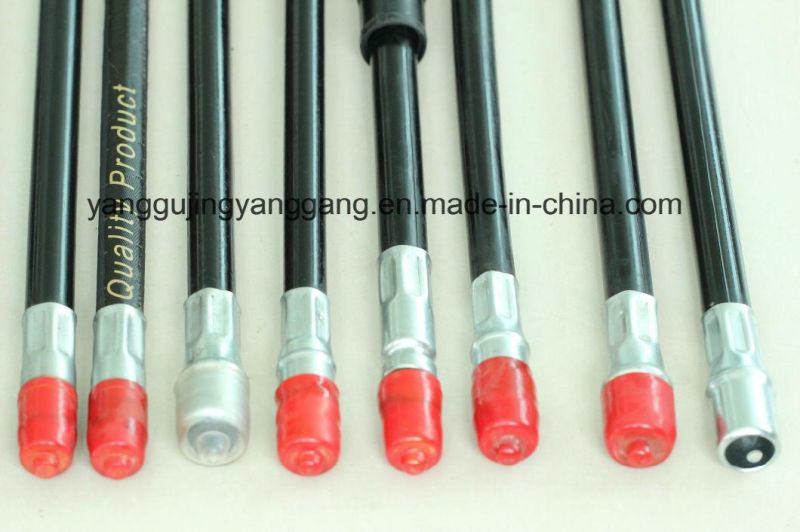

Flexible shaft assy use special steel; Reinforce layer use 70# copper plate steel wire braid and canvas.
Flexible shaft assy for brush cutters, trimmers, grinders, washing equipments.
BG360 | BG328 | BG 330A | BG256 | BG305D | |
Outer diameter of the hose (mm) | 22+0.2 | 22+0.2 | 22+0.2 | 22+0.2 | 20+0.2 |
Inner diameter of the hose(mm) | 10+0.1 | 10+0.1 | 10+0.1 | 10+0.1 | 10+0.1 |
Diameter of the shaft (mm) | 8-0.1 | 8-0.1 | 8-0.1 | 8-0.1 | 8-0.1 |
Steel belt HRC | 28-32 | 28-32 | 28-32 | 28-32 | 28-32 |
Torsion of the shaft (Nm) | >5.0 | >5.0 | >5.0 | >5.0 | >4.5 |
Rubber elongation cm2 | >1000 | >1000 | >1000 | >1000 | >800 |
Adhesive strength cm2 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
Min bending radius (mm) | 90 | 90 | 90 | 90 | 80 |
Rated speed (rpm) | 3200 | 3200 | 3200 | 3200 | 3500 |
Max speed allowed (rpm) | 10000 | 10000 | 10000 | 10000 | 10000 |
