• Type：Gear Reducer
• Output Torque：85-18000nm
• Transport Package：Wooden Case
• Specification：17-167
• Trademark：YND
• Origin：China
• Production Capacity：1000000

Basic Info.

Type Gear Reducer Output Torque 85-18000nm Transport Package Wooden Case Specification 17-167 Trademark YND Origin China Production Capacity 1000000

Product Description

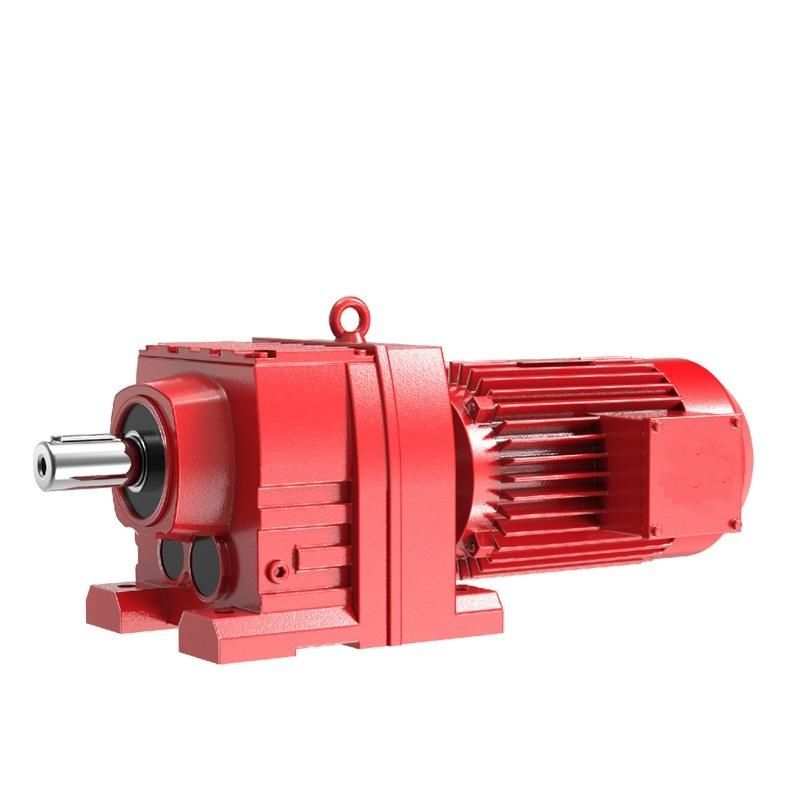

High Quality R Series Helical Reducer Gearbox for Food Processing

Features:
-High efficiency: 92%-97%;
-Compact structure: Small offset output, two stage and three stage are in the same box.
-High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, grinding process to ensure high precision and stable running.
-High interchangeability: highly modular, serial design, strong versatility and interchangeability.


Technical parameters

Ratio	3.41-289.74
Input power	0.12-160KW
Output torque	61-23200N.m
Output speed	5-415rpm

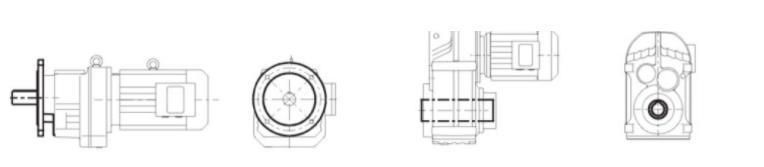

Mounting type	Foot mounted, flange mounted, foot and flange mounted, single-stage foot mounted, single stage flange mounted, Flange-mounted with extended bearing hub
Input Method	Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release	HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position)
Thermistor	TF(Thermistor protection PTC thermisto) TH(Thermistor protection Bimetal swotch)
Mounting Position	M1, M2, M3, M4, M5, M6
Type	R17-R167
Output shaft dis.	20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material	HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material	HT250 High strength cast iron from R97 107,137,147,157,167,187
Heat treatment technology	carbonitriding and hardening treatment
Efficiency	92%-97%
Lubricant	VG220
Protection Class	IP55, F class

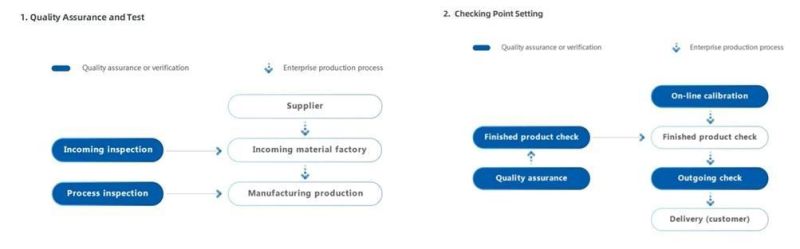

QUALITY CONTROL
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value



3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified

Certifications


packaging


FAQ
1. How to choose a gearbox which meets our requirement?You can refer to our catalogue to choose the gearbox or we can help to choose when you providethe technical information of required output torque, output speed and motor parameter etc. 2. What information shall we give before placing a purchase order?a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.b) Housing color.c) Purchase quantity.d) Other special requirements. 3. What industries are your gearboxes being used?Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc. 4. Doyou sell motors?We have stable motor suppliers who have been coperating with us for a long-time. They can provide motorswith high quality.
