Wholesale Variable Speed V Belt Model Hi-25mm, HD-32mm, Hdj-32mm, Hj-32mm, HK-38mm, Hl-45mm, Hm51mm, Hn-57mm, Ho-63mm, Hq-77mm
He Bei Hei Yi Rubber Co., Ltd.- Standard or Nonstandard：Standard
- Application：Car
- Feature：Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Multi-Groove Belt
Base Info
- Model NO.：v belt
- OEM：Available
- Range：500-5000mm
- Model No.：Pk
- Warranty：100000kms-150000kms
- Certification：ISO9001, Ts16949, SGS
- Color：Black
- Tensile Cord：Polyester, Aramid
- Transportation：Express,by Air,by Sea
- Transport Package：Plastic Bag,Carton
- Specification：EPDM
- Trademark：HEIYI
- Origin：China
- HS Code：40103900
- Production Capacity：100000pieces Per Month
Description
Top Width(mm)Thickness(mm) Length Range(inch) Length Range(mm) Angle O/AV10* 10 8.5 19.68"-216.5" 500-5500 40° A/AV13* 13 9.5 19.68"-216.5" 500-5500 40° B/AV17* 17 14 19.68"-216.5" 500-5500 40° C/AV22* 22 19 19.68"-216.5" 500-5500 40° SAx/LAx 12.5 8.8 19.68"-216.5" 500-5500 38° SBx/LBx 16.2 10 19.68"-216.5" 500-5500 38° SCx/LCx 21 11.2 19.68"-216.5" 500-5500 40° XPA/SPAX 12.5 10 19.68"-216.5" 500-5500 40° XPB/SPBX/5V 16.2 13 19.68"-216.5" 500-5500 40° XPC/SPCX 21 15 19.68"-216.5" 500-5500 40° XPZ/SPZX/3V 9.5 8.8 19.68"-216.5" 500-5500 40° 25N/8V 25 17 19.68"-216.5" 500-5500 40° HI 25 13 19.68"-216.5" 500-5500 32° HJ/HDJ 32 18 19.68"-216.5" 500-5500 32° HD 32 18 19.68"-216.5" 500-5500 40° HK 38 20 19.68"-216.5" 500-5500 32° HL 45 24 19.68"-216.5" 500-5500 32° HM 51 25.5 19.68"-216.5" 500-5500 32° HN 57 26 19.68"-216.5" 500-5500 32° HO 63 26 19.68"-216.5" 500-5500 32° 9J-5 50.1 11 19.68"-216.5" 500-5500 40° 9J-6 60.4 11 19.68"-216.5" 500-5500 40° 9J-7 70.7 11 19.68"-216.5" 500-5500 40° 3R-5V 50 15.2 19.68"-216.5" 500-5500 40° 4R-5V 67.5 15.2 19.68"-216.5" 500-5500 40° 4R-SPA 60.8 11 19.68"-216.5" 500-5500 38° 2HB 35 14 19.68"-216.5" 500-5500 38° 3HB 54 14 19.68"-216.5" 500-5500 38° 4HB 72.5 14 19.68"-216.5" 500-5500 38° 5HB 91 14 19.68"-216.5" 500-5500 38° 6HB 110 14 19.68"-216.5" 500-5500 38° 2HC 47.5 16 19.68"-216.5" 500-5500 38° 3HC 72.5 16 19.68"-216.5" 500-5500 38° 4HC 98 16 19.68"-216.5" 500-5500 38°
Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL,
AA,BB,CC Belts are also available, if you have any need of them, please feel free to contact us. We
will confirm all the details and reply you within 24 hours.
Structure of V Belt
Teeth part also can be covered with Fabric, if you have any need of it, please do tell us when you placing
the order.
Application
Company Introduction
Hebei Heiyi Rubber Co.,Ltd
Located in a historical and cultural city-Hebei Julu.The company now covers an area of 136 acres,building
area of 66000 square meters,more than 180 employees.
Integrating R&D,production,and sales.Advanced production technology,excellent production equipment
strong technical force.
Production in strict accordance with ISO16949 quality management system.
We have exquiste sales and logistic team in 31 province in china.Also our product had exported to India,Pakistan,Vitnam,Sinapore,Thailand,Germany,Poland,Russia,Australia,Brazil.
Heiyi Test center
Certification
Honorary qualification of HEIYI rubber co.,ltd.
2011-Advanced work unit
2011-Famous trademark enterprise of Xingtai City
Package&Delivery
Our partner
Company: Hebei Heiyi Rubber Co., Ltd
Add: Julu County Industrial Park, Xingtai City, Hebei Province,China
Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL,
AA,BB,CC Belts are also available, if you have any need of them, please feel free to contact us. We
will confirm all the details and reply you within 24 hours.
Structure of V Belt
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs/Teeth | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | EPDM |
the order.

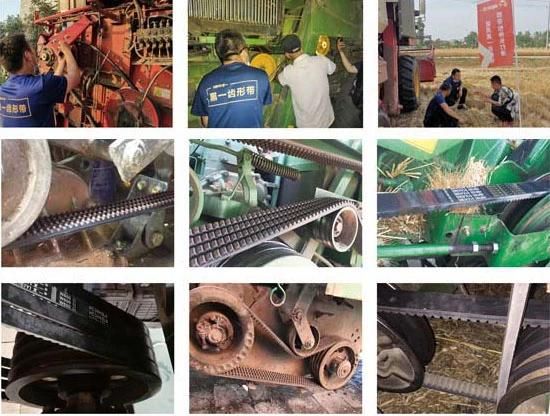

Application
Company Introduction

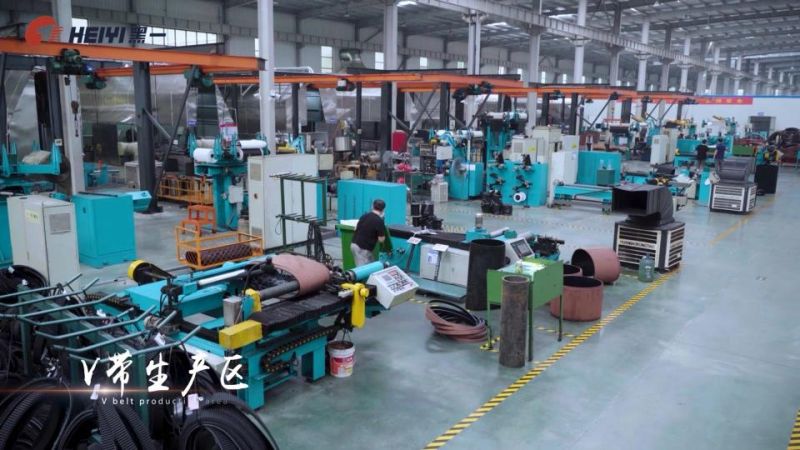

Hebei Heiyi Rubber Co.,Ltd
Located in a historical and cultural city-Hebei Julu.The company now covers an area of 136 acres,building
area of 66000 square meters,more than 180 employees.
Integrating R&D,production,and sales.Advanced production technology,excellent production equipment
strong technical force.
Production in strict accordance with ISO16949 quality management system.
We have exquiste sales and logistic team in 31 province in china.Also our product had exported to India,Pakistan,Vitnam,Sinapore,Thailand,Germany,Poland,Russia,Australia,Brazil.

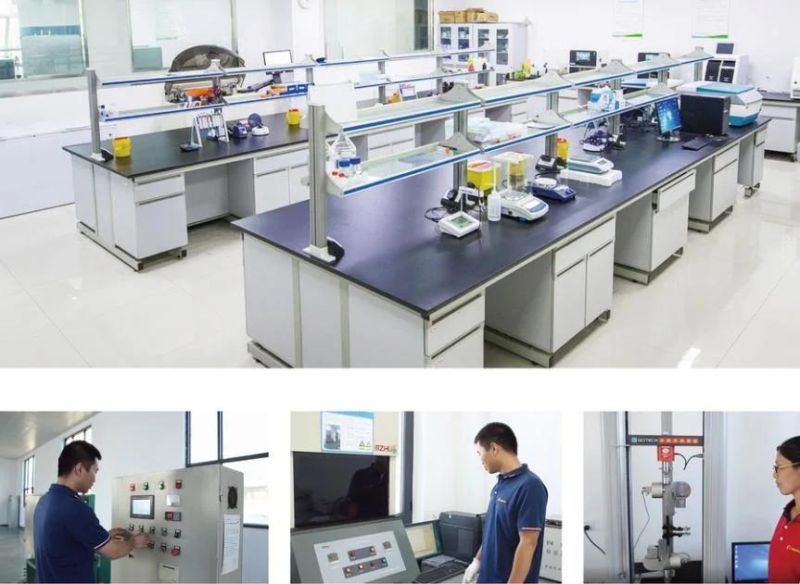

Heiyi Test center
Certification
Honorary qualification of HEIYI rubber co.,ltd.
2011-Advanced work unit
2011-Famous trademark enterprise of Xingtai City
2012-Famous trademark of Hebei Province
2012-Member of China Rubber Industry Association
2013-Hebei Province SME brand-name products
2015-Petroleum and chemical enterprise quality inspection Grade A
2017-Hebei famous brand products
2017-Hebei Province quality products.
2017-High tech enterprise
2018 Hebei province industrial enterprise R&D Organization Grade C.
2018-ISO16949 certification.

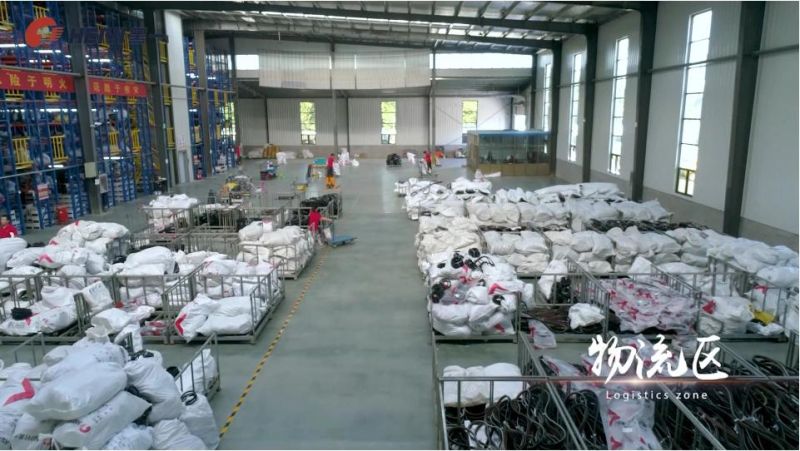

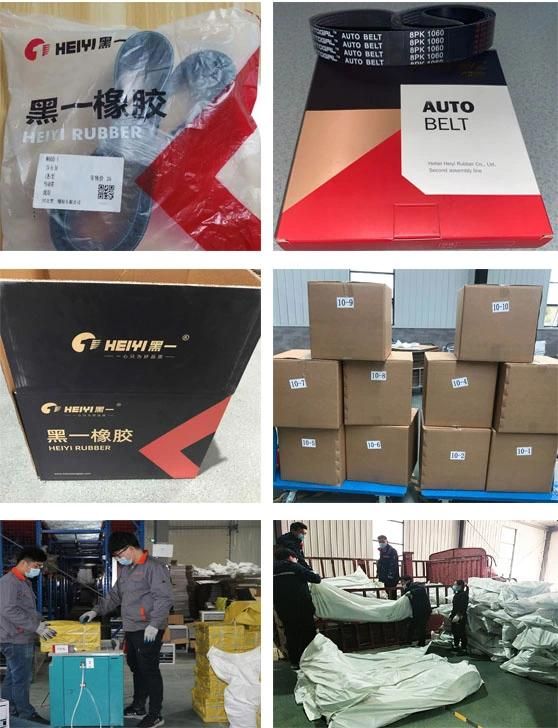

Package&Delivery
Our partner
Company: Hebei Heiyi Rubber Co., Ltd
Add: Julu County Industrial Park, Xingtai City, Hebei Province,China
