• Model NO.：B,JXJ Series
• Type：Cycloidal
• Mounting：Foot-Mounting & Flange Mouting
• Transport Package：Plywood Case
• Specification：ISO9001: 2015, CE, SGS
• Trademark：STARSHINE DRIVE
• Origin：Foshan, China
• HS Code：8483409090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. B/JXJ Series Type Cycloidal Mounting Foot-Mounting & Flange Mouting Transport Package Plywood Case Specification ISO9001: 2015, CE, SGS Trademark STARSHINE DRIVE Origin Foshan, China HS Code 8483409090 Production Capacity 6000PCS/Month

Product Description

Starshine Drive Cycloid Geared Motor Characteristics

1. Features:
1. Smooth running,low noise gear tooth needle more engagement.
2. Cycloidal tooth profile provides a high contact ratio to withstand overload shocks
3. Compact size: single ratio available from 1/9 to 1/87, double stage up from 1/99 to 1/7569
4. Ideal for dynamic applications: frequent start-stop-reversing duties suits for cyclo speed reducer since inertia is low
5. Reduce maintenance costs: high reliability, long life, minimal maintenance compared to conventional gearboxes
6. Internal parts replaceable with other brands to ensure running.

7. Grease Lubricated & Oil Lubricated Models Available
8. Output Shaft Rotation Direction: Single Reduction: Clockwise Rotation; Double Reduction→ Counter Clockwise Rotation
9. Ambient Conditions: Indoor Installation:10-40 Celsius, Max 85% Humidity, Under 1000m Altitude, Well Ventilated Environment, Free of corrosive,        explosive gases, vapors and dust
10.Slow Speed Shaft Direction: Horizontal, Vertical Up & Down, Universal Direction
11.Mounting Style: Foot Mount, Flange Mount & Vertical F-flange Mount,
12. Input Connection: Cyclo Integral Motor, Hollow Input Shaft Adapter
13. Coupling Method With Driven Machine: Coupling, Gears, Chain Sprocket Or Belt
14. Cycloid reducer Capacity Range: 0.37kW ~ 11kW;




2. Technical parameters

Type	Old Type	Output Torque	Output Shaft Dia.
SXJ00	JXJ00	98N.m	φ30
SXJ01	JXJ01	221N.m	φ35
SXJ02	JXJ02	448N.m	φ45
SXJ03	JXJ03	986N.m	φ55
SXJ04	JXJ04	1504N.m	φ70
SXJ05	JXJ05	3051N.m	φ90
SXJ06	JXJ06	5608N.m	φ100

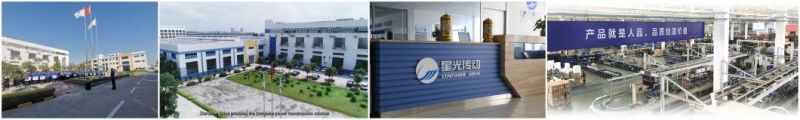

About Us

Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".

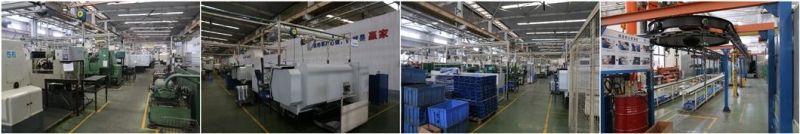

Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.



Our Team

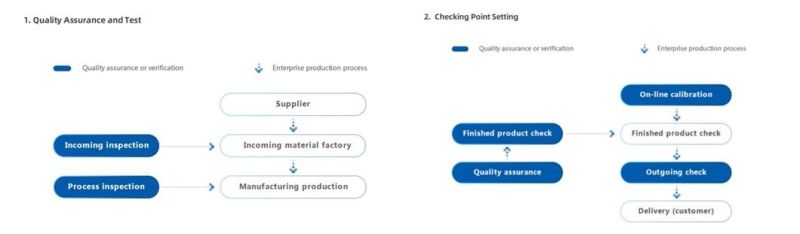

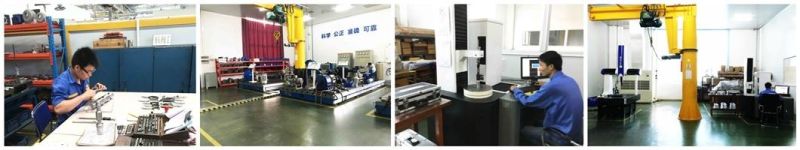

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value




3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective
measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
 found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the
product is a product inspection to determine the qualified products.

7. Certification.

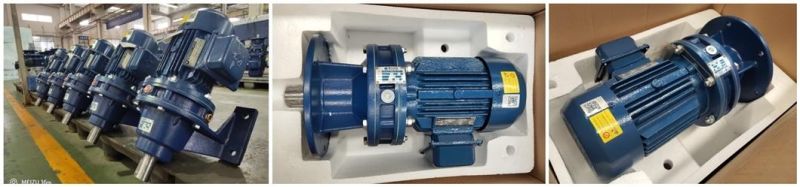

Packing


Delivery
