• Model NO.：Flender H,B Series
• Installation：Horizontal Type
• Step：Single-Step
• Type：Bevel-Helical Gear Units
• Output Speed(R/Min)：1-1200rpm
• Input Speed(R/Min)：600-1500rpm
• Power(Kw)：Top to 4500kw
• Output Torque(N.M)：Output Torque(N.M)
• Transport Package：Export Package
• Trademark：Siemens
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year
• Package size per unit product：500.00cm * 320.00cm * 100.00cm
• Gross weight per unit product：200.000kg

Basic Info.

Model NO. Flender H/B Series Installation Horizontal Type Step Single-Step Type Bevel-Helical Gear Units Output Speed(R/Min) 1-1200rpm Input Speed(R/Min) 600-1500rpm Power(Kw) Top to 4500kw Output Torque(N.M) Output Torque(N.M) Transport Package Export Package Trademark Siemens Origin China HS Code 8483409000 Production Capacity 5000PCS/Year

Packaging & Delivery

Package size per unit product 500.00cm * 320.00cm * 100.00cm Gross weight per unit product 200.000kg

Product Description

Flender Standard Gear Units

Flender Standard Gear Units series products are developed for applications in nearly all fields of the mechanical power transmission. Flender standard gear units comprise helical and bevel helical type with horizontal and vertical mounting positions available.

Technical Data

Type: Helical & bevel helical
Size: 3-26
Transmission stage: 1-4
Power Rating: 6-4,500Kw
Speed ratio:1.25-450
Noraml torque range:  up to 900,000Nm

Application:
Conveyor drives, bucket elevator drives, screw drives, dryer section drives etc.

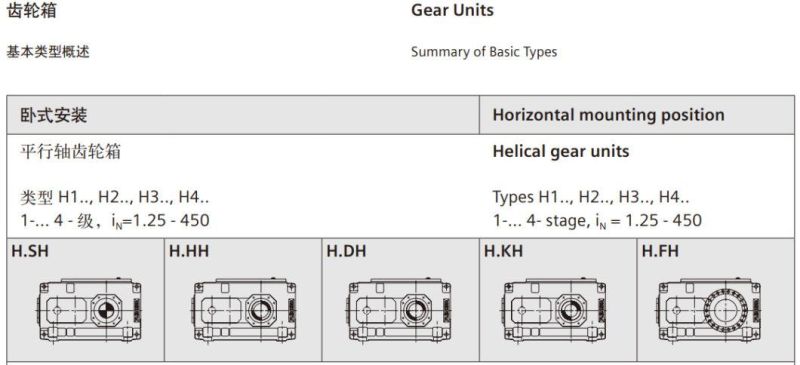

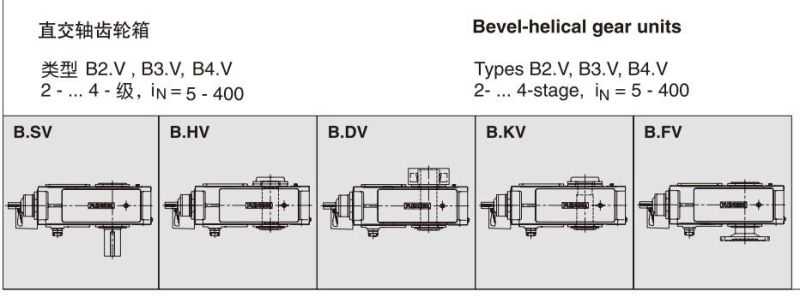

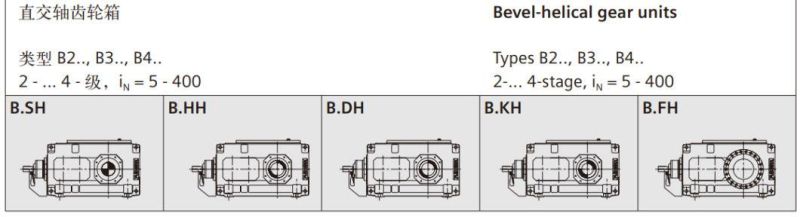

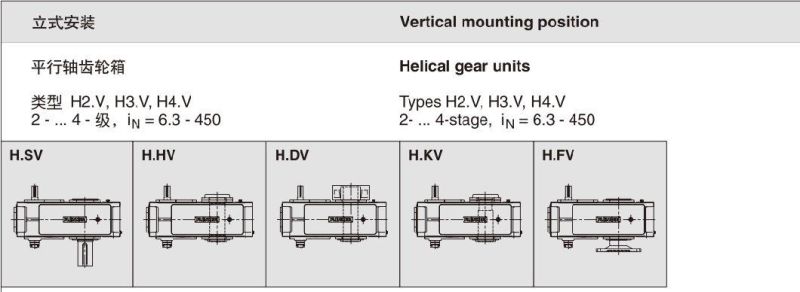

Installation Type:

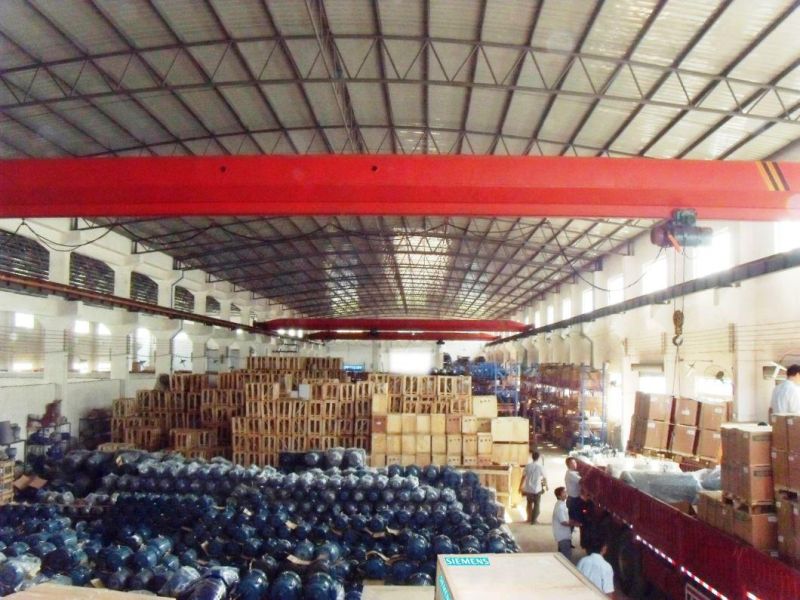

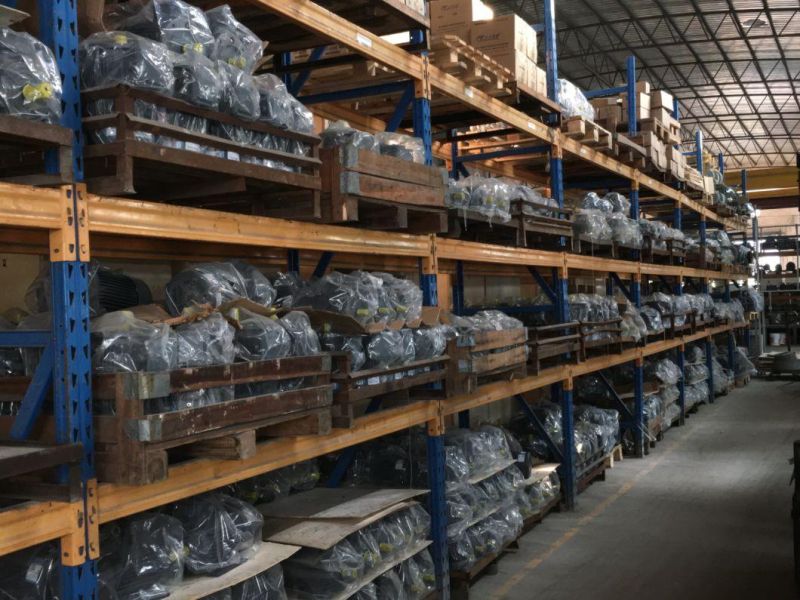

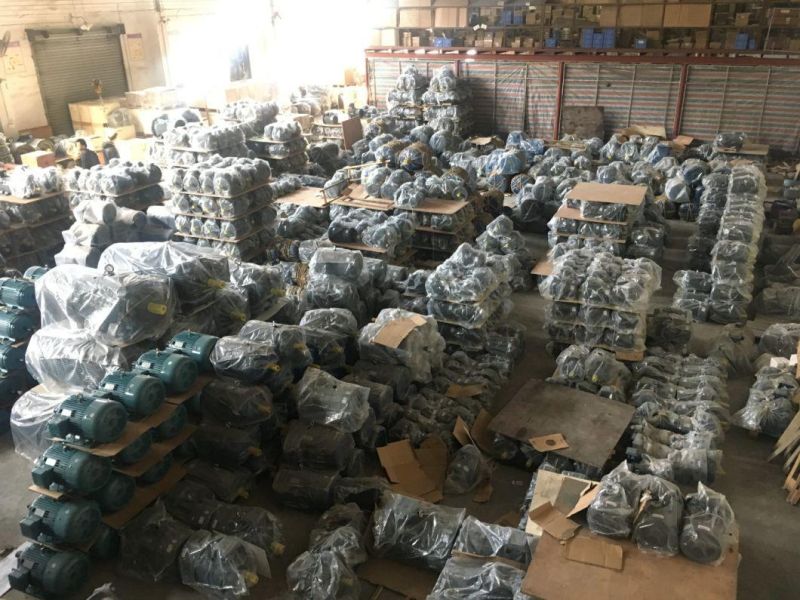

Warehouse:
