3mgt3 255 Rubber Timing Belt
Shenzhen Jiaheng Industrial Belting Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Toothed Belt
Base Info
- Model NO.：3MGT3

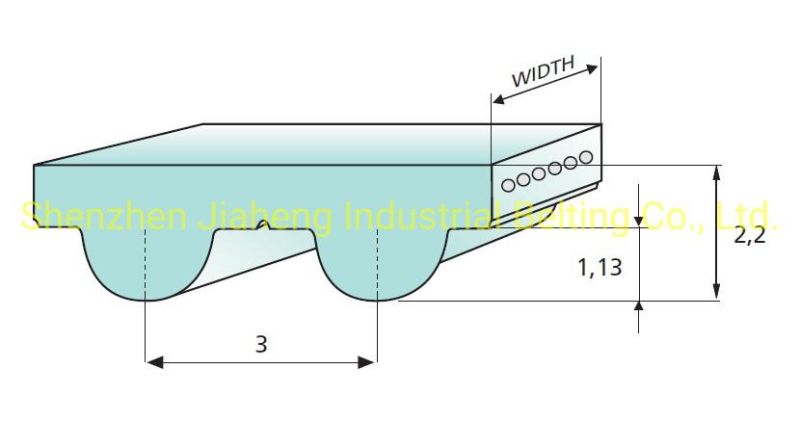

- Pitch：3.0 mm
- Color：Black
- Cord：High Quality Glass Fibre
- Max Width：450mm
- Transport Package：Export Standard
- Specification：3M GT
- Trademark：UNI Belting
- Origin：Shanghai China
- HS Code：4010390000
- Production Capacity：20000000 Meters
Description
2.4
2.Cutting or provide sleeve according to customer's
requirement
3.Could add anti-static,heat-resistant,low temperature resistance ect.
4. Normal product no minimum order quantity
requirements.
Our dedication to continuous research and development has led to our most efficient rubber synchronous belts yet. Thanks to their dramatically reduced weight, our complete line of rubber synchronous belts are easier to install and replace. Say no to lubrication on metal wear. Say yes to increased energy effciency.
SUPPLY CHARACTERISTICS
1.Company leading products, With all kinds of mold more than 5000.2.Cutting or provide sleeve according to customer's
requirement
3.Could add anti-static,heat-resistant,low temperature resistance ect.
4. Normal product no minimum order quantity
requirements.
Our dedication to continuous research and development has led to our most efficient rubber synchronous belts yet. Thanks to their dramatically reduced weight, our complete line of rubber synchronous belts are easier to install and replace. Say no to lubrication on metal wear. Say yes to increased energy effciency.
| Model | Length(mm) | Sleeve width(mm) | Teeth Number |
| 126-3M | 126.00 | 250 | 42 |
| 144-3M | 144.00 | 250 | 48 |
| 150-3M | 150.00 | 250 | 50 |
| 156-3M | 156.00 | 250 | 52 |
| 159-3M | 159.00 | 250 | 53 |
| 168-3M | 168.00 | 250 | 56 |
| 171-3M | 171.00 | 250 | 57 |
| 174-3M | 174.00 | 250 | 58 |
| 177-3M | 177.00 | 250 | 59 |
| 180-3M | 180.00 | 250 | 60 |
| 186-3M | 186.00 | 250 | 62 |
| 189-3M | 189.00 | 250 | 63 |
| 192-3M | 192.00 | 250 | 64 |
| 195-3M | 195.00 | 250 | 65 |
| 201-3M | 201.00 | 250 | 67 |
| 204-3M | 204.00 | 250 | 68 |
| 207-3M | 207.00 | 250 | 69 |
| 210-3M | 210.00 | 250 | 70 |
| 213-3M | 213.00 | 250 | 71 |
| 216-3M | 216.00 | 250 | 72 |
| 225-3M | 225.00 | 250 | 75 |
| 231-3M | 231.00 | 250 | 77 |
| 234-3M | 234.00 | 250 | 78 |
| 237-3M | 237.00 | 250 | 79 |
| 240-3M | 240.00 | 250 | 80 |
| 246-3M | 246.00 | 250 | 82 |
| 252-3M | 252.00 | 250 | 84 |
| 255-3M | 255.00 | 250 | 85 |
| 258-3M | 258.00 | 450 | 86 |
| 264-3M | 264.00 | 250 | 88 |
| 267-3M | 267.00 | 250 | 89 |
| 270-3M | 270.00 | 450 | 90 |
| 273-3M | 273.00 | 250 | 91 |
| 276-3M | 276.00 | 250 | 92 |
| 279-3M | 279.00 | 250 | 93 |
| 282-3M | 282.00 | 250 | 94 |
| 285-3M | 285.00 | 250 | 95 |
| 288-3M | 288.00 | 250 | 96 |
| 291-3M | 291.00 | 450 | 97 |
| 294-3M | 294.00 | 250 | 98 |
| 300-3M | 300.00 | 250 | 100 |
| 306-3M | 305.00 | 250 | 102 |
| 309-3M | 309.00 | 250 | 103 |
| 312-3M | 312.00 | 250 | 104 |
| 315-3M | 315.00 | 450 | 105 |
| 318-3M | 318.00 | 250 | 106 |
| 324-3M | 324.00 | 250 | 108 |
| 327-3M | 327.00 | 250 | 109 |
| 330-3M | 330.00 | 250 | 110 |
| 333-3M | 333.00 | 250 | 111 |
| 336-3M | 336.00 | 250 | 112 |
| 339-3M | 339.00 | 250 | 113 |
| 342-3M | 342.00 | 250 | 114 |
| 345-3M | 345.00 | 450 | 115 |
| 348-3M | 348.00 | 450 | 116 |
| 351-3M | 351.00 | 250 | 117 |
| 354-3M | 354.00 | 250 | 118 |
| 357-3M | 357.00 | 250 | 119 |
| 360-3M | 360.00 | 450 | 120 |
| 363-3M | 363.00 | 250 | 121 |
| 369-3M | 369.00 | 250 | 123 |
| 375-3M | 375.00 | 450 | 125 |
| 384-3M | 384.00 | 250 | 128 |
| 390-3M | 390.00 | 250 | 130 |
| 393-3M | 393.00 | 450 | 131 |
| 399-3M | 399.00 | 250 | 133 |
| 405-3M | 405.00 | 450 | 135 |
| 420-3M | 420.00 | 250 | 140 |
| 426-3M | 426.00 | 450 | 142 |
| 432-3M | 432.00 | 450 | 144 |
| 447-3M | 447.00 | 450 | 149 |
| 453-3M | 453.00 | 450 | 151 |
| 459-3M | 459.00 | 450 | 153 |
| 474-3M | 474.00 | 450 | 158 |
| 480-3M | 480.00 | 450 | 160 |
| 486-3M | 486.00 | 250 | 162 |
| 489-3M | 489.00 | 450 | 163 |
| 492-3M | 492.00 | 250 | 164 |
| 495-3M | 495.00 | 250 | 165 |
| 495-3M | 495.00 | 450 | 165 |
| 501-3M | 501.00 | 250 | 167 |
| 507-3M | 507.00 | 450 | 169 |
| 510-3M | 510.00 | 250 | 170 |
| 513-3M | 513.00 | 450 | 171 |
| 522-3M | 522.00 | 450 | 174 |
| 525-3M | 525.00 | 250 | 175 |
| 537-3M | 537.00 | 250 | 179 |
| 552-3M | 552.00 | 450 | 184 |
| 564-3M | 564.00 | 250 | 188 |
| 570-3M | 570.00 | 250 | 190 |
| 579-3M | 579.00 | 450 | 193 |
| 585-3M | 585.00 | 450 | 195 |
| 591-3M | 591.00 | 450 | 197 |
| 594-3M | 594.00 | 450 | 198 |
| 597-3M | 597.00 | 450 | 199 |
| 600-3M | 600.00 | 250 | 200 |
| 606-3M | 606.00 | 450 | 202 |
| 624-3M | 624.00 | 450 | 208 |
| 633-3M | 633.00 | 250 | 211 |
| 648-3M | 648.00 | 450 | 216 |
| 657-3M | 657.00 | 450 | 219 |
| 669-3M | 669.00 | 250 | 223 |
| 684-3M | 684.00 | 450 | 228 |
| 699-3M | 699.00 | 450 | 233 |
| 711-3M | 711.00 | 450 | 237 |
| 732-3M | 732.00 | 450 | 244 |
| 741-3M | 741.00 | 450 | 247 |
| 753-3M | 753.00 | 450 | 251 |
| 765-3M | 765.00 | 450 | 255 |
| 804-3M | 804.00 | 450 | 268 |
| 816-3M | 816.00 | 450 | 272 |
| 843-3M | 843.00 | 450 | 281 |
| 945-3M | 945.00 | 450 | 315 |
| 1176-3M | 1176.00 | 450 | 392 |
| 1263-3M | 1263.00 | 450 | 421 |
| 1500-3M | 1500.00 | 450 | 500 |
| 1530-3M | 1530.00 | 450 | 510 |
| 1569-3M | 1569.00 | 450 | 523 |
| 1587-3M | 1587.00 | 450 | 529 |
| 2388-3M | 2388.00 | 450 | 796 |
| 3240-3M | 3240.00 | 450 | 1080 |
