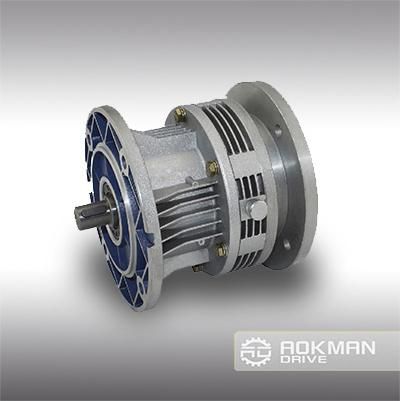

Wb Series Flange Mounted Cyclo Gear Motor Reducer for Mixer Machine
Zhengzhou Aokman Machinery Co., Ltd.- Application：Motor, Machinery, Industry
- Function：Speed Changing, Speed Reduction
- Layout：Cycloidal
- Hardness：Hardened Tooth Surface
- Installation：Vertical Type
- Step：Stepless
Base Info
- Model NO.：WB
- Type：Cycloidal
- Installation Form：Foot Mounted or Flange Mounted
- Ratio：1,9,1,11,^,1,71.87
- Input Speed：Less Than 1500r,Min
- Gear Arrangement：Cycloidal
- Rated Torque：25n.M~205n.M
- Rated Power：0.04kw~2.2kw
- Gearing Arrangement：Cycloidal
- Output Torque：25~250n.M
- Housing Material：Cast Iron
- Warranty：1 Year
- Mount Position：Foot Mounted. Flange Mounted
- Input Form：Mounting Motor
- Output Form：Solid Shaft Output
- Lubrication：Grease Lubrication
- Color：Customer Request
- Transport Package：Wooden Case
- Specification：ISO
- Trademark：AOKMAN DRIVE
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Year
Description
Overview
Product DescriptionWB65 0.04~0.12 9~87 25 Φ12 Φ10 WB85 0.09~0.37 9~87 60 Φ14 Φ12 WB100 0.18~0.75 9~87 120 Φ18 Φ14 WB120 0.37~1.5 9~87 180 Φ30 Φ15 WB150 0.55~3.0 9~87 250 Φ35 Φ20 2 Stage WBE1065 0.04~0.12 121~1849 120 Φ18 Φ10 WBE1285 0.09~0.37 121~1849 180 Φ30 Φ12 WBE1510 0.18~0.75 121~1849 250 Φ35 Φ14 1. Select equipment model. 2.Design and manufacture products according to clients' special requirement. 3.Train technical personal for clients Services during selling 1.Pre-check and accept products ahead of delivery. 2. Help clients to draft solving plans. After-sale services 1.Assist clients to prepare for the first construction scheme. 2. Train the first-line operators. 3.Take initiative to eliminate the trouble rapidly. 4. Provide technical exchanging.
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
If you have any demand for our products please feel free to contact me.
Detailed Photos
Features:
1. WB series cycloidal reducers have the same features and characteristics with X & B series cycloidal reducers. The differences are WB series cycloidal reducers have smaller sizes and power
2. Grease lubrication, oil leak is not possible
3. Multiple mounting options
Our Services:FAQ:
1.Q:What kinds of gearbox can you produce for us?A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
If you have any demand for our products please feel free to contact me.
