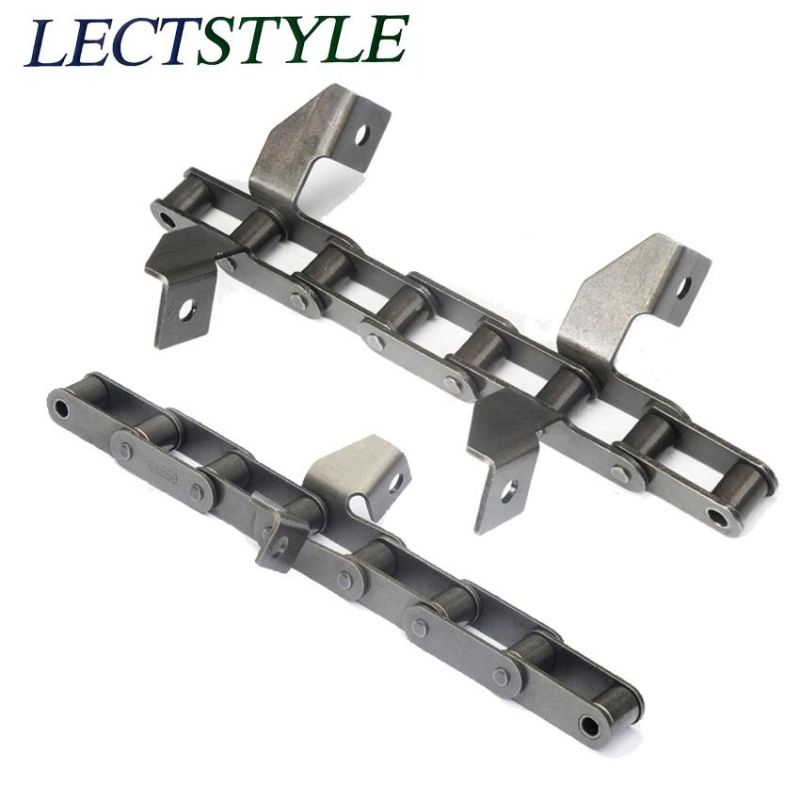

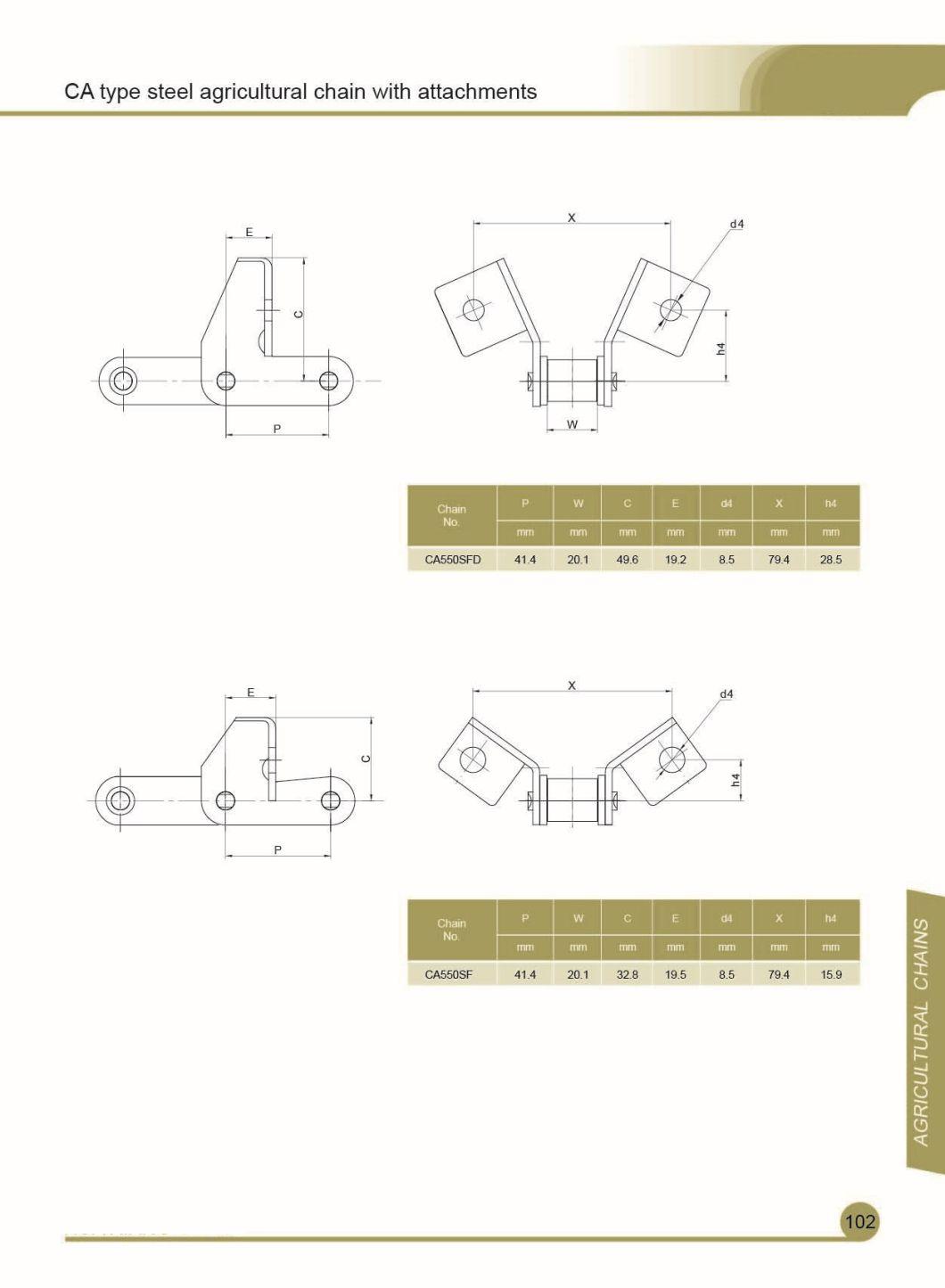

• Model NO.：CA550SF
• Model：Ca550sf
• Pitch：41.4mm
• Pin Diameter：7.16mm
• Width Between Inner Plates：19.81mm
• Inner Plate Depth：19.05mm
• Plate Thickness：2.7mm
• Roller Diameter：16.70mm
• Attachment Size C：32.80mm
• Attachment Hole Diameter：8.50mm
• Transport Package：Polybag +Carton+Fumigation-Free Wooden Cases
• Specification：ISO606, ASME, DIN & JIS Chains Standards
• Trademark：LECTSTYLE
• Origin：China
• HS Code：73151190
• Production Capacity：500 Tons Each Year

Chain No.PitchRoller diameterWidth between inner platesWidth between outer platesDepth of chain platesPin diameterPin lengthPlate thicknessUltimate tensile strengthWeight per meterpd1(Max)b1(min)b3(min)h2(Max)d2(Max)b4(Max)T(Max)Qo(min)QmmmmmmmmmmmmmmmmKnKg/mS3229.2111.4315.8820.5713.54.4726.71.880.86S32-H29.2111.4315.8820.5713.54.4726.7217.50.88S32V29.2111.4315.88 13.55.0829.72.1250.96S4234.9314.2719.0525.6519.87.0134.32.826.70.96S42-H34.9314.2719.0525.6519.87.0134.3 41 S4541.415.2422.2328.9617.35.7438.12.817.81.6S45-H41.415.2422.2328.9617.35.7438.1 32 S5238.115.2422.2328.9617.35.7438.12.817.81.68S52-H38.115.2422.2328.9617.35.7438.1 32 S5541.417.7822.2328.9617.35.7438.12.817.81.8S55-H41.417.7822.2328.9617.35.7438.1 322.25S55V41.417.7822.2335.320.78.2739.42.9452.22S55R41.417.7822.2334.521.25.7237.52.6452.49S55RH41.417.7822.2341.422.48.946.4484.52.74S6241.9119.0525.43217.35.7440.66.226.71.87S62-H41.9119.0525.43217.35.7440.6 32 S7758.3418.2622.2331.526.28.9243.2444.52.66S77-H58.3418.2622.2331.526.28.9243.2 80 S8866.2722.8628.5837.8526.28.9250.8444.53.25S88-H66.2722.8628.5837.8526.28.9250.8 80 S38381621.8 219433552LV40401222 17.5641331.41.53P41.341.315.8822.2335.320.78.2739.43502.45P40.640.615.882035.4520.78.2739.43351.5540SH12.77.957.84 123.9619.92.0322.40.8250SH15.87510.169.4 15.095.0823.42.4230.41.2560SH19.0511.9112.5725.54185.9431.63.2544.11.8780SH25.415.8815.75 247.9237.7488.23.1100SH31.7519.0518.9 309.5346.94.8116.64.52120SH38.122.2325.22 35.711.157.55.6158.26.6630SK19.0514.289.5317.1518.17.11283.6422.18630H19.0511.919.53 18.15.9427.83.25422.16C40, C08A-112.77.957.85 123.9616.61.514.10.78C50, C10A-115.87510.169.4 15.095.0820.7222.21.27C60, C12A-119.0511.9112.57 185.9425.92.4231.81.86C80, C16A-125.415.8815.75 247.9232.73.2556.73.03C100, C20A-131.7519.0518.9 309.5340.4488.54.51C120, C24A-138.122.2325.22 36.211.150.34.81276.63           C55041.416.8719.8126.1619.057.1938.22.739.81.94C550-H41.416.8719.8126.1619.057.1939339.82.24C62042.0117.9124.5131.7219.057.1942.23.1539.12.35C620-H42.0117.9124.5131.7219.057.1942.2 57.8 Detailed Photos

Our Advantages

Company Profile

After Sales Service

FAQ

Question:
1.Q:How about mould cost?
A: primarily depend on : 1.Drawing, 2.material, 3.weight and quantity.
We need to know the structure of each parts to analyze the mold solution by:

1) --Complete design drawing, product model or actual sample ----- the best way
--PDF drawing with complete dimension for each parts
--Clearly photos for each parts with more angle-views to show every features.

2)The materials, technical parameters and surface treatments.
technical parameters: tell us about its model, pitch, roller diameter, width between inner plates, attachment type, outside drawing etc.

3)The quantity of order.

2.Q:How to control the product processing?
A: The processing report or pictures will be sent to the customer every week/ each month for review.

3.Q:Who will own the mould?
A:Customer, also the mould can be kept in our factory for future order.

4.Q:How long do you make your quotation?
A:After receiving detail informations we will quote in 1 to 3 days.

5.Q: MOQ? ---
small chain type: if its pitch is less than 38.10mm and its thickness is less than 5mm, MOQ is 1500 meters on these roller chains or conveyor chains;
middle chain type: MOQ is 1000 meters on these roller chains or conveyor chains;
big chain type: if its pitch is more than 76.20mm and its thickness is more than 10mm, MOQ is 200 meters on these roller chains or conveyor chains;
