• Model NO.：NMRV50
• Type：Worm Reducer
• Color：Red,Blue,Grey,Yellow
• Housing Material：Alloy Aluminum
• Speed Ratio：5-100
• Model Range：Nmrv25-Nmrv150
• Warranty：1 Year
• Transport Package：Carton, Wooden Case, Plywood
• Specification：SGS
• Trademark：Kailida or OEM
• Origin：Zhejiang, China
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. NMRV50 Type Worm Reducer Color Red,Blue,Grey,Yellow Housing Material Alloy Aluminum Speed Ratio 5-100 Model Range Nmrv25-Nmrv150 Warranty 1 Year Transport Package Carton, Wooden Case, Plywood Specification SGS Trademark Kailida or OEM Origin Zhejiang, China Production Capacity 5000PCS/Month

Product Description

NEW NMRV  REDUCTION WORM GEARBOX
TECHNICAL DATA AND FEATURE

1.Die cast aluminum housing,cubic structure,beautiful in appearance,samll valume,fine heat loss and fiexible mounting

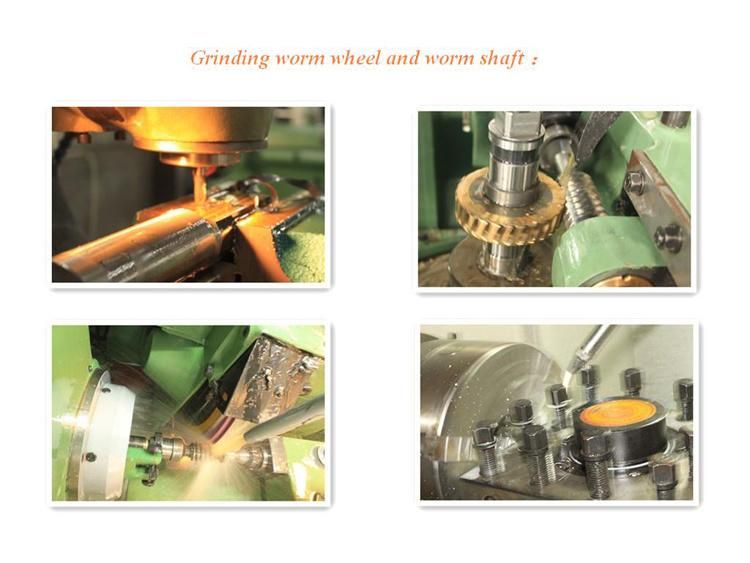

2.The worm gear and the worm shaft adopt precision process and meshing to ensure the stable transmission,low temperature,low noise level,high efficiency and long service life.

3.Input and output parts are treated by smooth,and dustproof to increase the quality and its service life

4.high quality bergings and seals to prevent from oil leakage




Model	NMRV SERIES
Single Stage	RV25-RV150
Ratio	7.5-100
Input Power	0.06KW-15KW
Output Speed	14-280rpm
Output Torque	5-1800Nm
Core parts	worm wheel,worm shaft
Core parts material	worm shaft:20 Cr Mn Ti,worm wheel:Nodular cast iron interal,9-4 copper external
Lubrication	RV30-90:synthetic oil, RV110-150:GN460-W mineral oil
Bearings	C&U

3.Applications:
 Products are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.
