Cycloidal Needlewheel Speed Reducer (BWD)

Hangzhou Sino-Deutsch Power Transmission Equipment Co., Ltd.

Application：Industry
Hardness：Hardened
Type：Worm and Wormwheel
Material：Cast Iron
Manipulate Way：Semi-Automatic Manipulation
Manufacturing Method：Rolling Gear

Base Info

Model NO.：BWD
Toothed Portion Shape：Spur Gear
Changes Way：Stepless
Transport Package：Standard Export Packing and Wood Pallets Packing
Trademark：FIXED STAR
Origin：Hangzhou, Zhejiang
HS Code：84834090
Production Capacity：200000 PCS Per Year

Description

BWD

Appearance and installation dimension

(mm)

Frame	Centre height	Installationdimension								Shaft end dimension
		A₁	A₀	B₁	B₀	h	s	Hole		Output shaft				Intput shaft
		A₁	A₀	B₁	B₀	h	s	n	d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂
09	80	17	76	30	120	12	M8	4	11	22	6	24.5	30	15	5	17	25
10	100	58	90	35	150	14			11	30	8	33	35	15	5	17	22
11	120	69	110	55	240	16			16	35	10	38	56	18	6	20.5	35
12	140	73	150	60	280	20	M10		16	45	14	48.5	71	22	6	24.5	40
13	160	78	200	75	340	25	M12		17	55	16	59	80	30	8	33	55
14	200	53	320	90	340	25	M12		22	70	20	74.5	102	35	10	38	60
15	240	39	380	90	420	32	M16		22	90	25	95	120	45	14	48.5	70
16	290	45	480	80	560	35	M20		26	100	28	106	140	50		53.5	82
16A	280	45	440	80	500	35			26	100	28	106	140	50		53.5	82
17	325	80	500	120	630	40			30	120	32	127	165	55	16	59	100
18	420	122	330×2	160	800	50	2-M20	6	32	140	36	148	210	70	20	74.5	120

(mm)

Frame	Outerside dimension								Weight kg
	A	B	H	D	Double Shaft style	Flange style
	A	B	H	D	L	L₁	L₂	B₂
09	100	144	160	140	203	142	According to motor size		6.5
10	120	185	184	168	215	155			14
11	160	280	240	200	269	191			29
12	200	320	275	240	340	255			45
13	250	390	356	300	409	294			80
14	380	400	425	340	487	369			135
15	440	470	529	430	581	440			210
16	560	620	614	500	676	443			400
16A	520	560	614	500	724	443			400
17	600	690	706	580	795	639			660
18	810	880	883	710	1030	819			1180

Company Profile

l The largest manufacturer and exporter of worm gear reducers in Asia.

l Established in 1976, we transformed from a county owned factory to private one in 1996. HANGZHOU SINO-DEUTSCH POWER TRANSMISSION EQUIPMENT CO.,LTD is our new name since 2001.

l We are the first manufacturer of reducers and gearboxes in China who was given export license since year 1993.

l "Fixedstar" brand gearboxes and reducers are the first owner of CHINA TOP BRAND and Most Famous Trade Mark for reducers.

First to achieve ISO9001 and CE Certificate among all manufacturers of gearboxes in China.

Cycloidal Needlewheel Speed Reducer (BWD)
As a professional manufacturer of worm gearbox and worm gear reducers in China, we mainly produce reduction gearbox,aluminum case worm gearboxes,arc gear cylindrical worm gearboxes, worm gear reducers, in line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, and reliable quality, and so on. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.

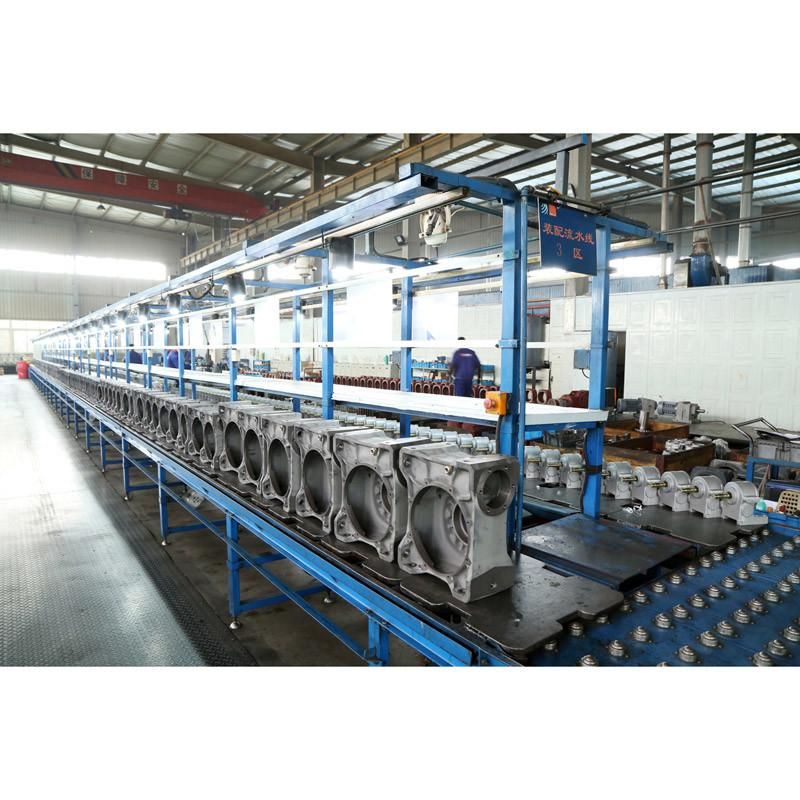

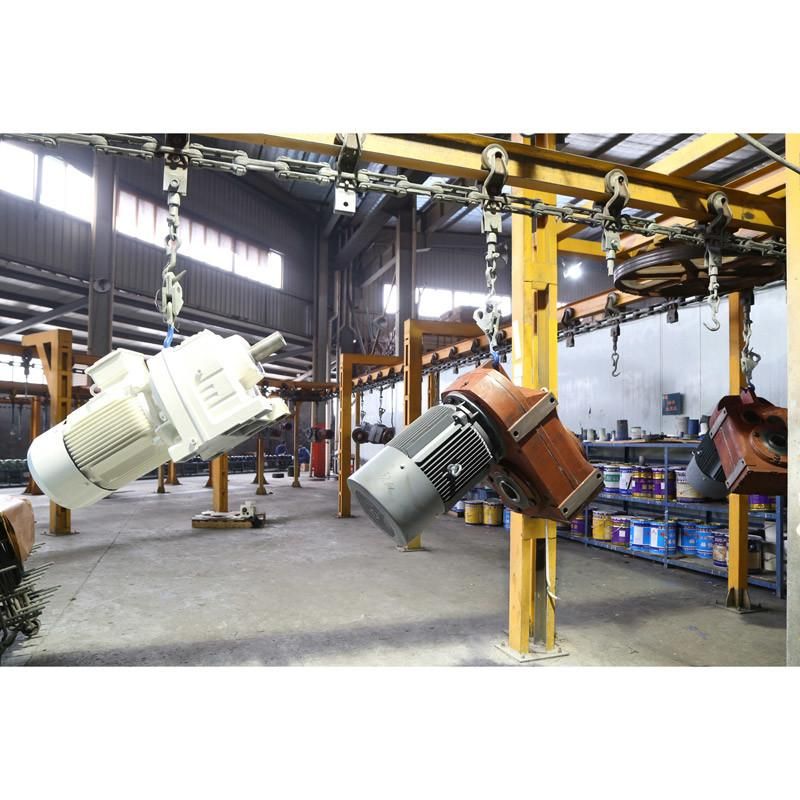

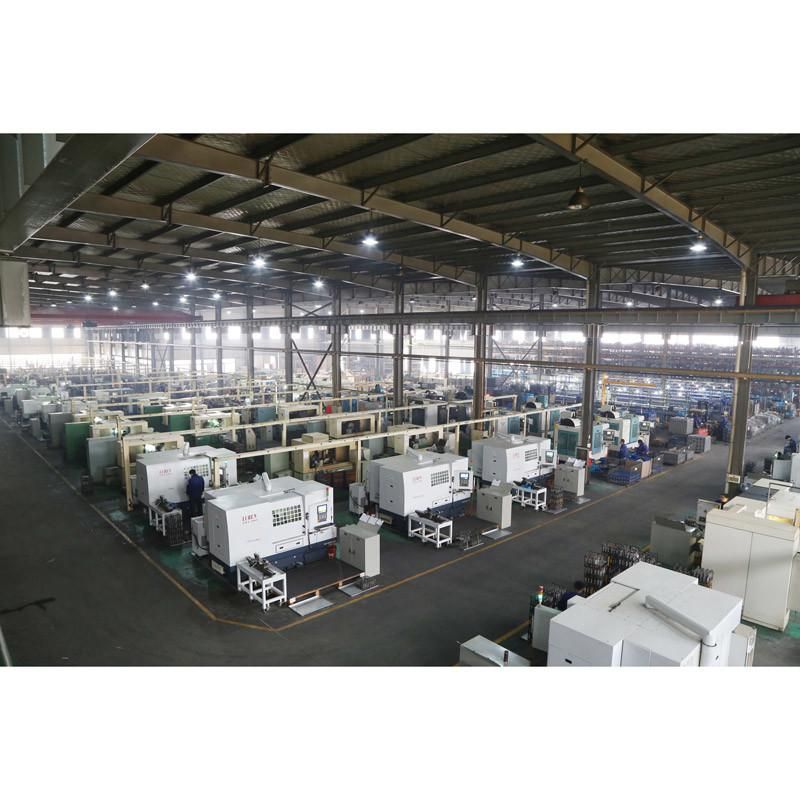

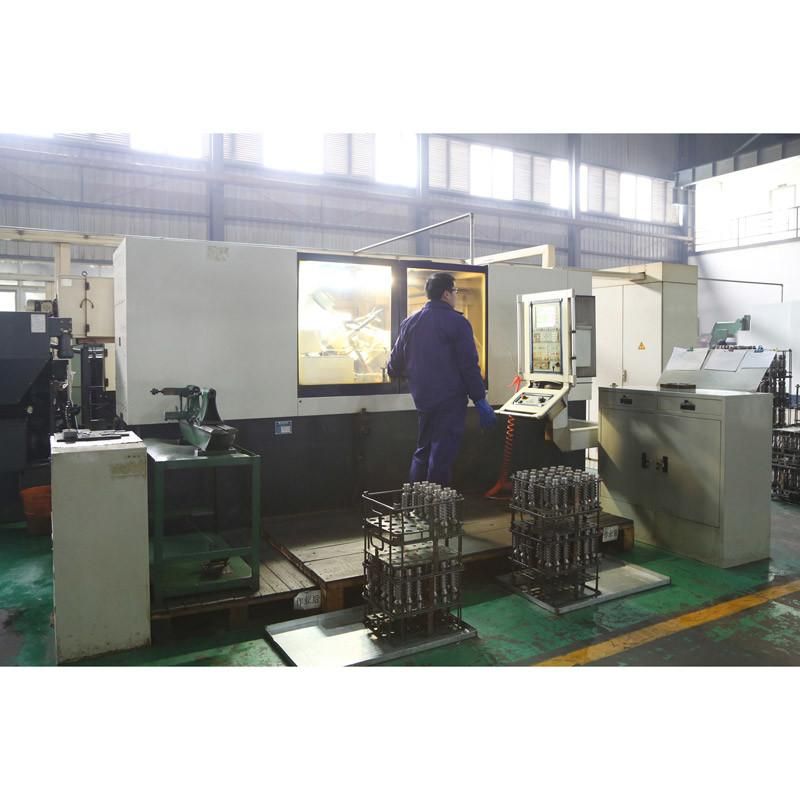

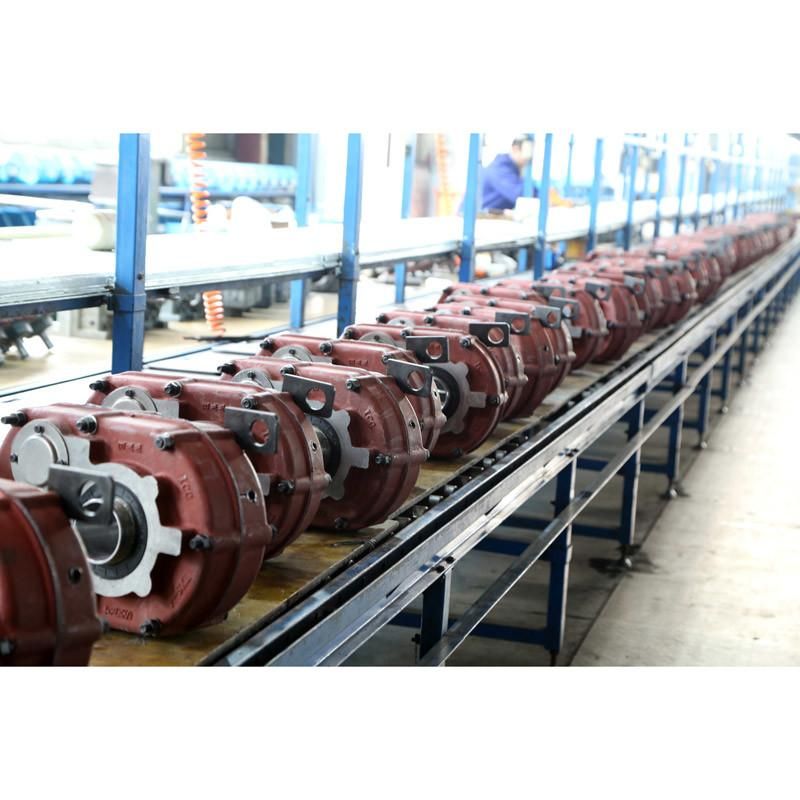

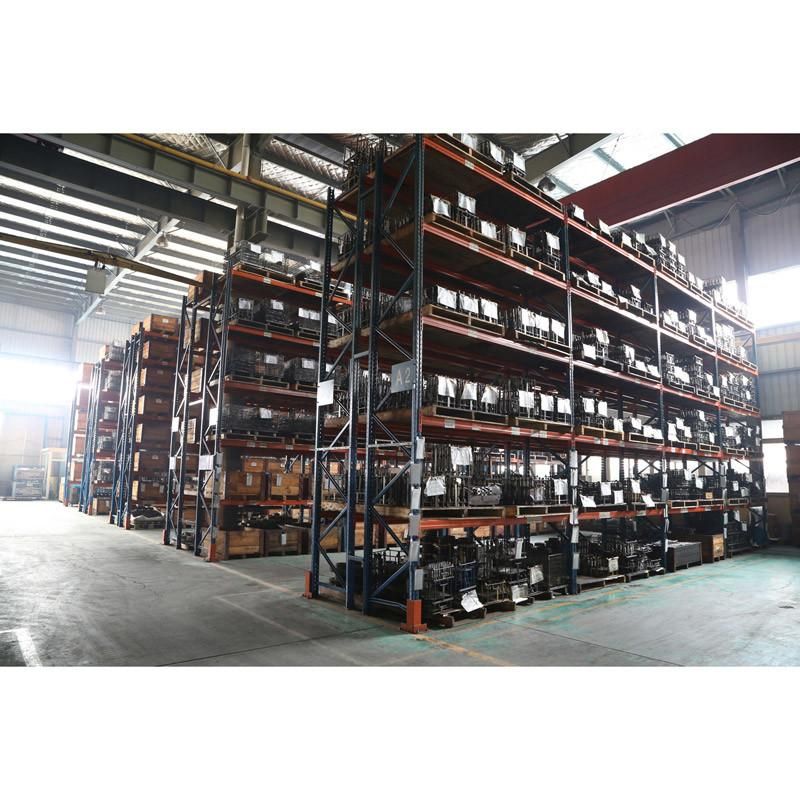

We have 600 workers in our factory, which covers 70,000 square meters in Hangzhou. We have been making 2,500 units of reducers everyday since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the word. Our customers come from Italy, Germany, USA, Canada, Spain, UK, Mexico, Brazil, Argentina, Turkey, Singapore and other main industrial countries in the world. 30% of them are OEM made for direct manufacturers of other products.

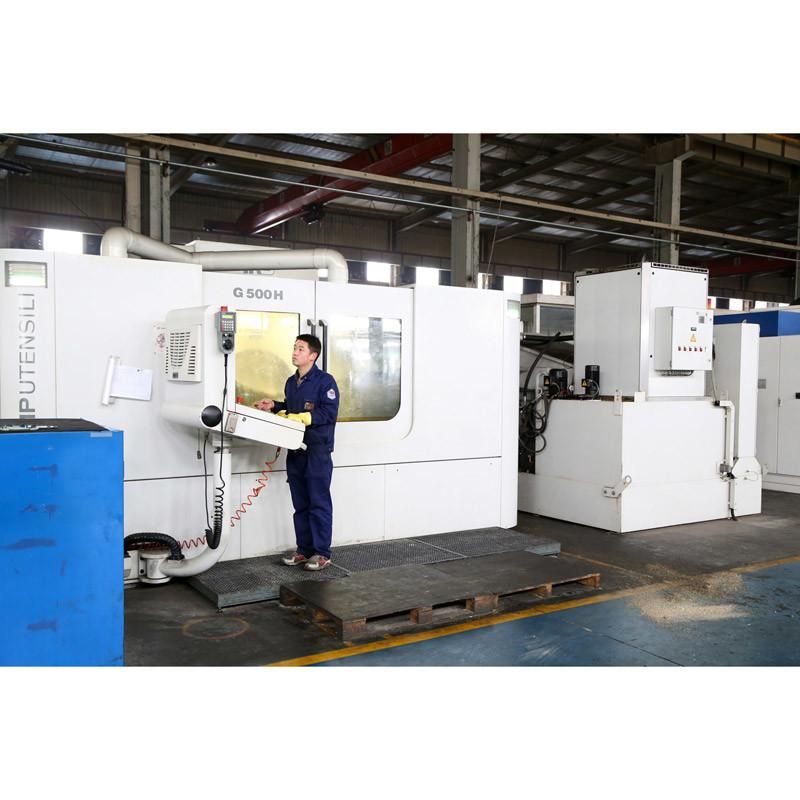

We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are very confident that after visiting our facility, you will have confidence on our products. We have the latest automatic equipments and experienced workers to ensure the stable quality and large output. We have the most sophisticated technical and engineering team to support most demanding requirement on standard and OEM products.

Looking forward to meeting you in Hangzhou, China.
